MEAN WELL NDR-120-24 120W 24V 5A Din Rail power supply DIN-RAIL
Available, delivery time: 1-3 days
Article-No.:
IT-006396
Model:
NDR-120-24
Shipping weight:
0.6 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
Regular price:
€23.50
(€0.00* / )
Content:
1 Stück
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ LED display for DC OK |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 5A |
| Power: | 120W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 24...28VDC |
| Efficiency: | 88% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

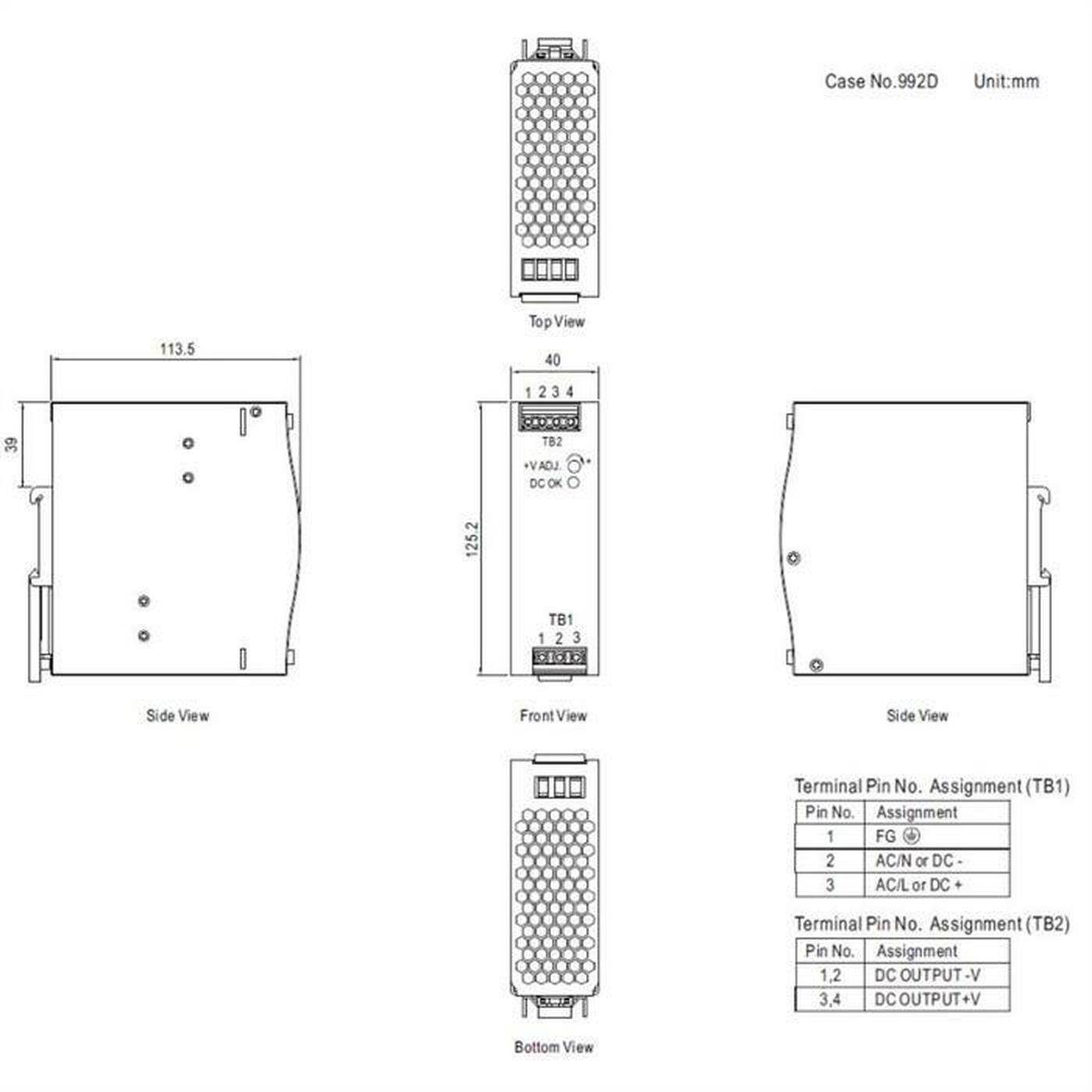

| Length: | 125,5mm |
| Width: | 40mm |
| Height: | 113,5mm |
