MEAN WELL MDR-100-24 96W 24V 4A Din Rail power supply DIN-RAIL
Available, delivery time: 1-3 days
Article-No.:
IT-005327
Model:
MDR-100-24
Shipping weight:
0.42 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€28.00*
|
| 6 - 10 |
€27.72*
|
| 11 - 20 |
€27.44*
|
| 21 - 50 |
€27.16*
|
| 51 - 100 |
€27.16*
|
| From 101 |
€27.16*
|
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ LED indicator for power-on |
| ✔ Low idle power |
| ✔ DC OK relay output |
| ✔ complies with NEC Class 2 |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 4A |
| Power: | 96W |
| Input voltage (min...max): | 85...264VAC |
| Output voltage (min...max): | 24...30VDC |
| Efficiency: | 86% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

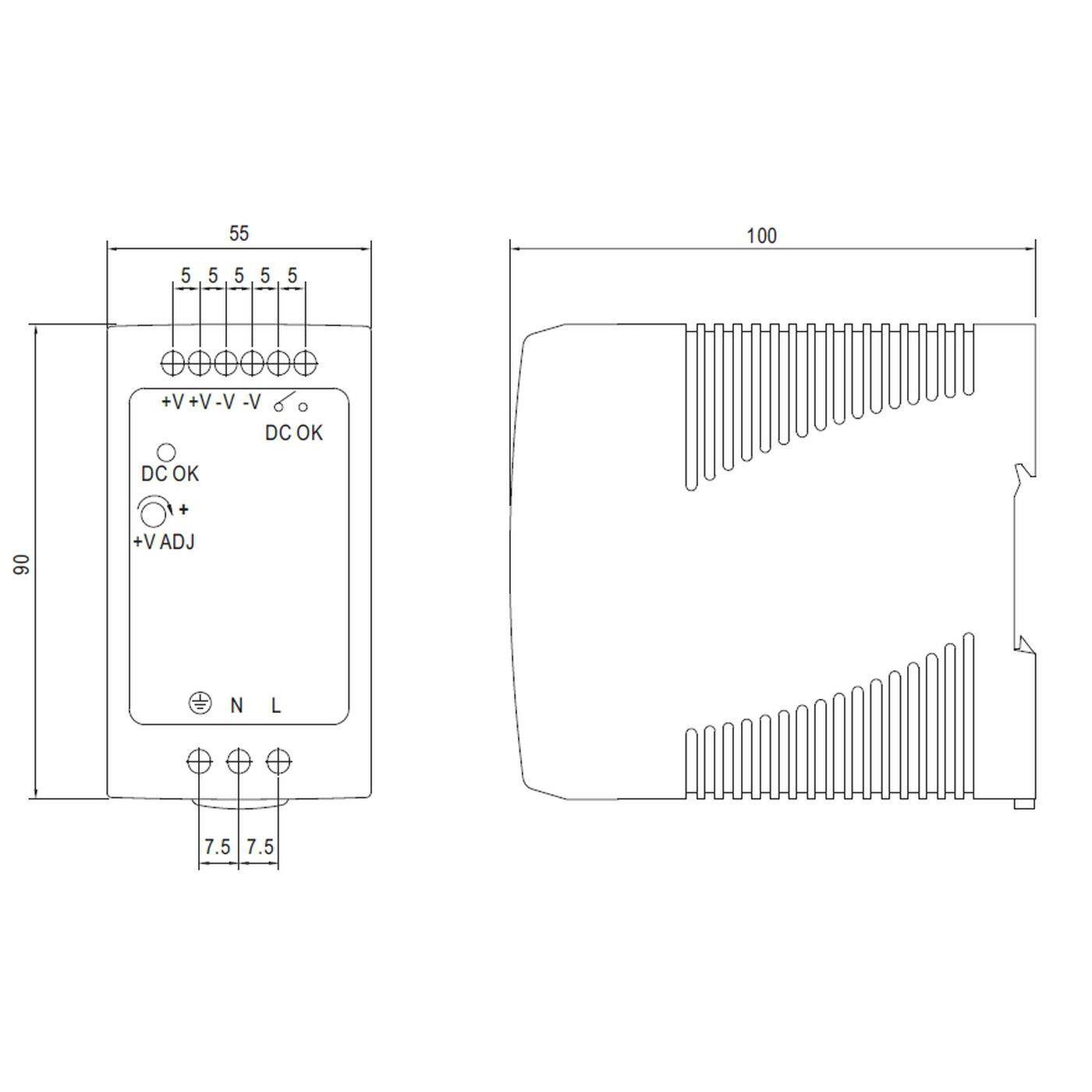

| Length: | 90mm |
| Width: | 55mm |
| Height: | 100mm |
Ihr Produktverlauf

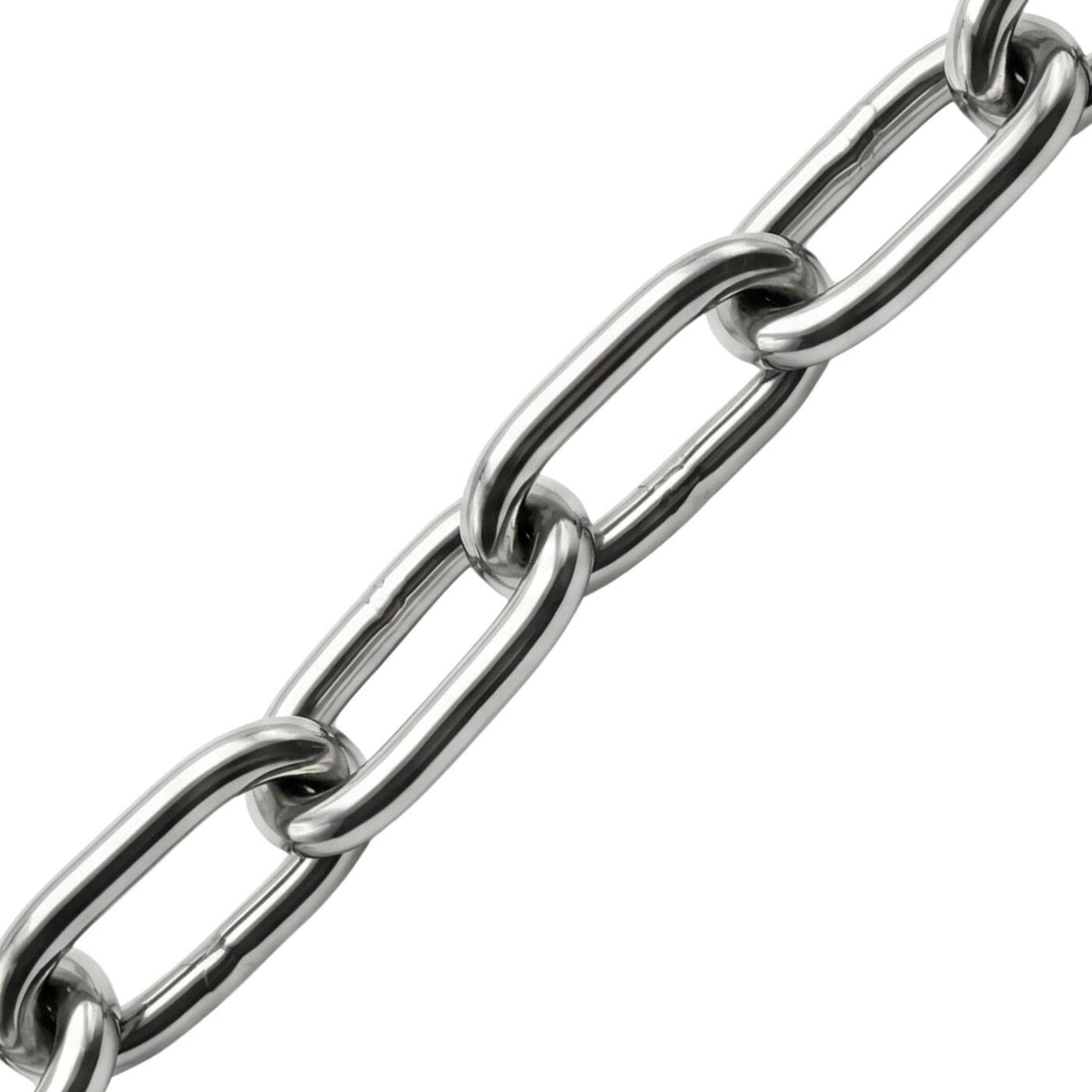

Lumonic 2m Chain V4A stainless steel | 8mm | Long-limbed | Stainless + seawater resistant | Rain chain, hanging basket, barrier chain
€37.50*
(€17.44* / m)
incl. VAT
plus shipping costs
Wire rope clamp U-clamp Stainless steel V4A 316 2mm Rope clamp Wire clamp
€0.55*
incl. VAT
plus shipping costs

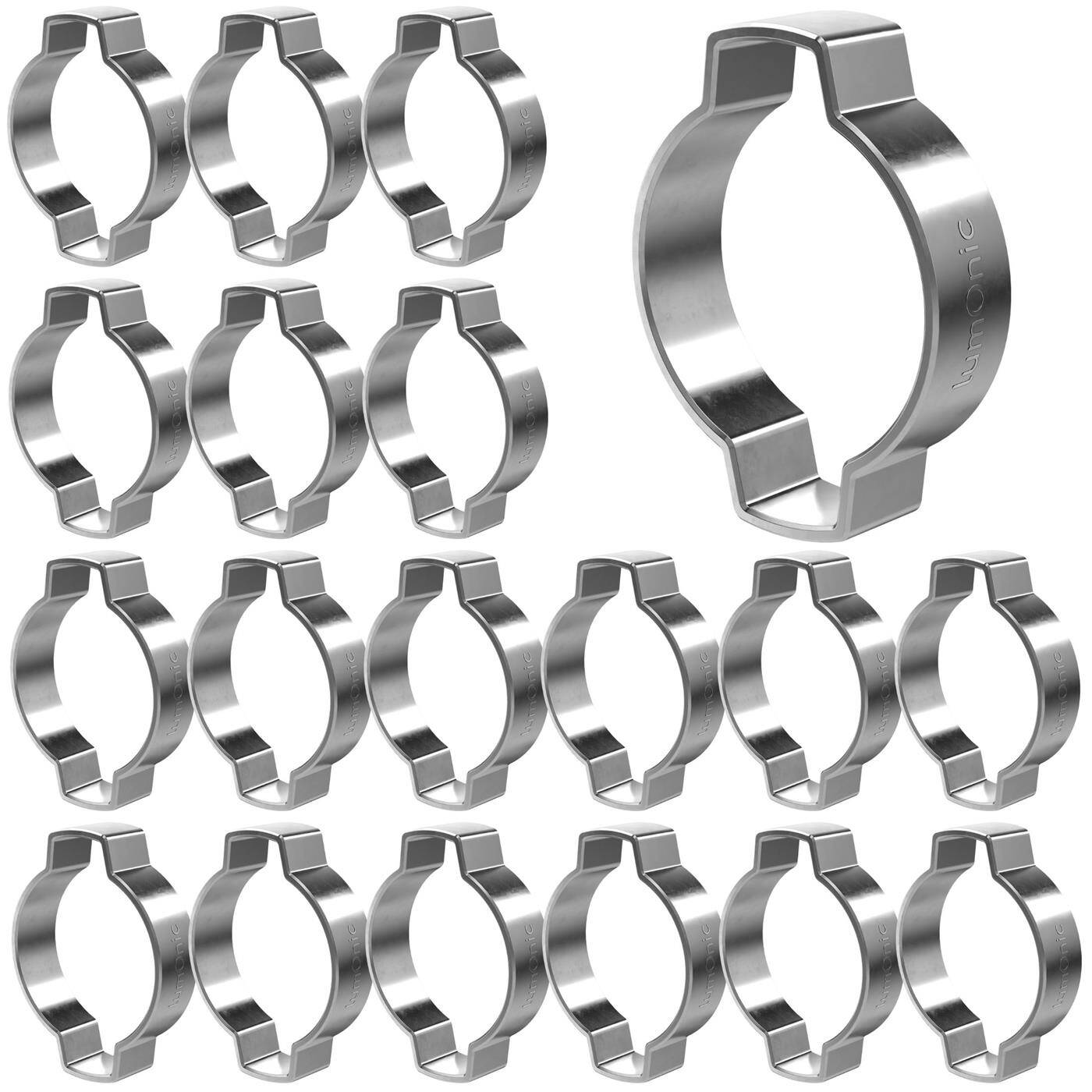

Lumonic I 20x 2-ear clip 25-28mm I V2A Stainless steel I Two-ear clamp I Hose clamp I for Compressed air, Pipe systems, Garden, CAR
€7.50*
(€0.35* / Stück)
incl. VAT
plus shipping costs

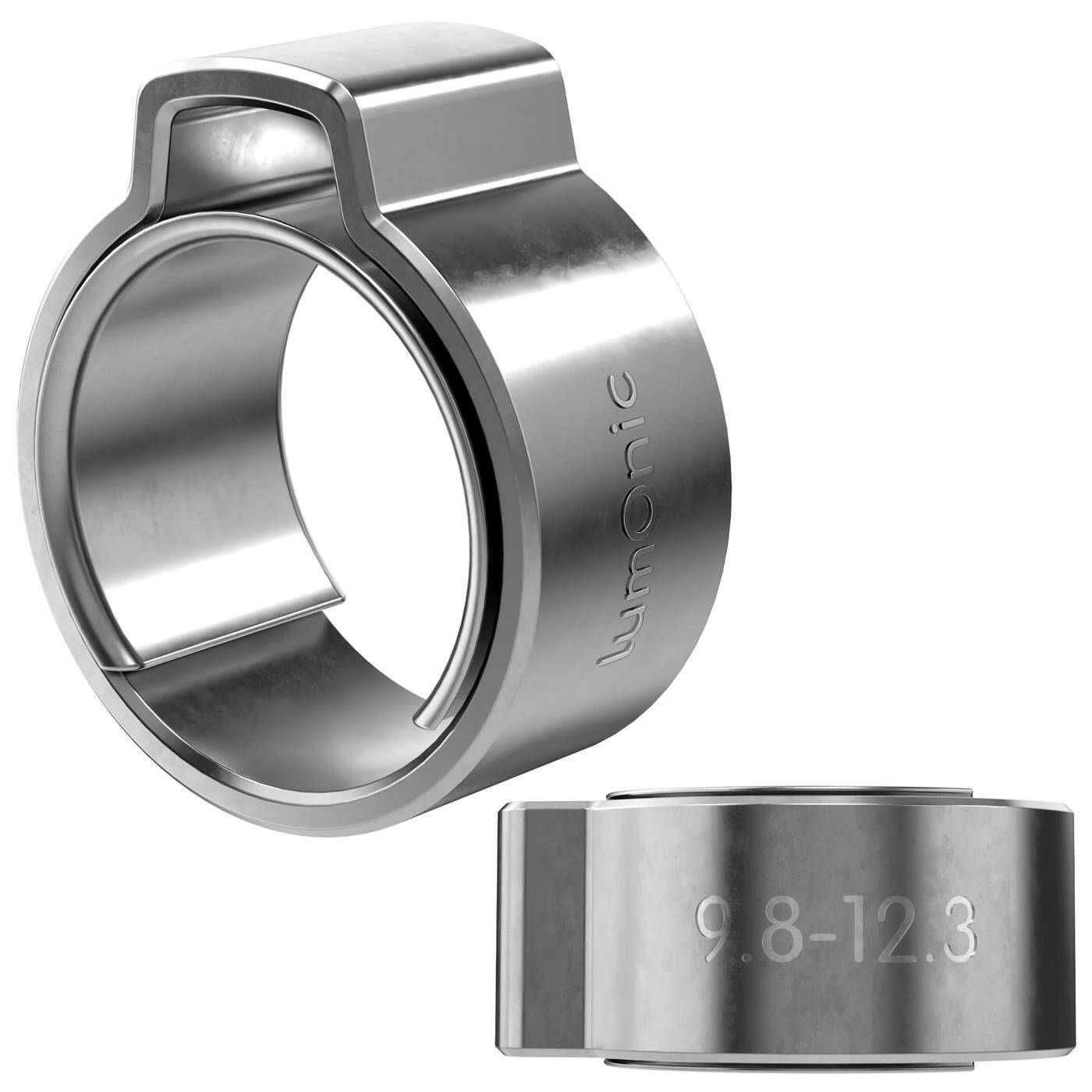

Lumonic I 2x 1-ear clip 9,8-12,3mm I V2A Stainless steel I Single ear clip I Hose clamp I for Compressed air, Pipe systems, Garden, CAR
€0.80*
(€0.36* / Stück)
incl. VAT
plus shipping costs

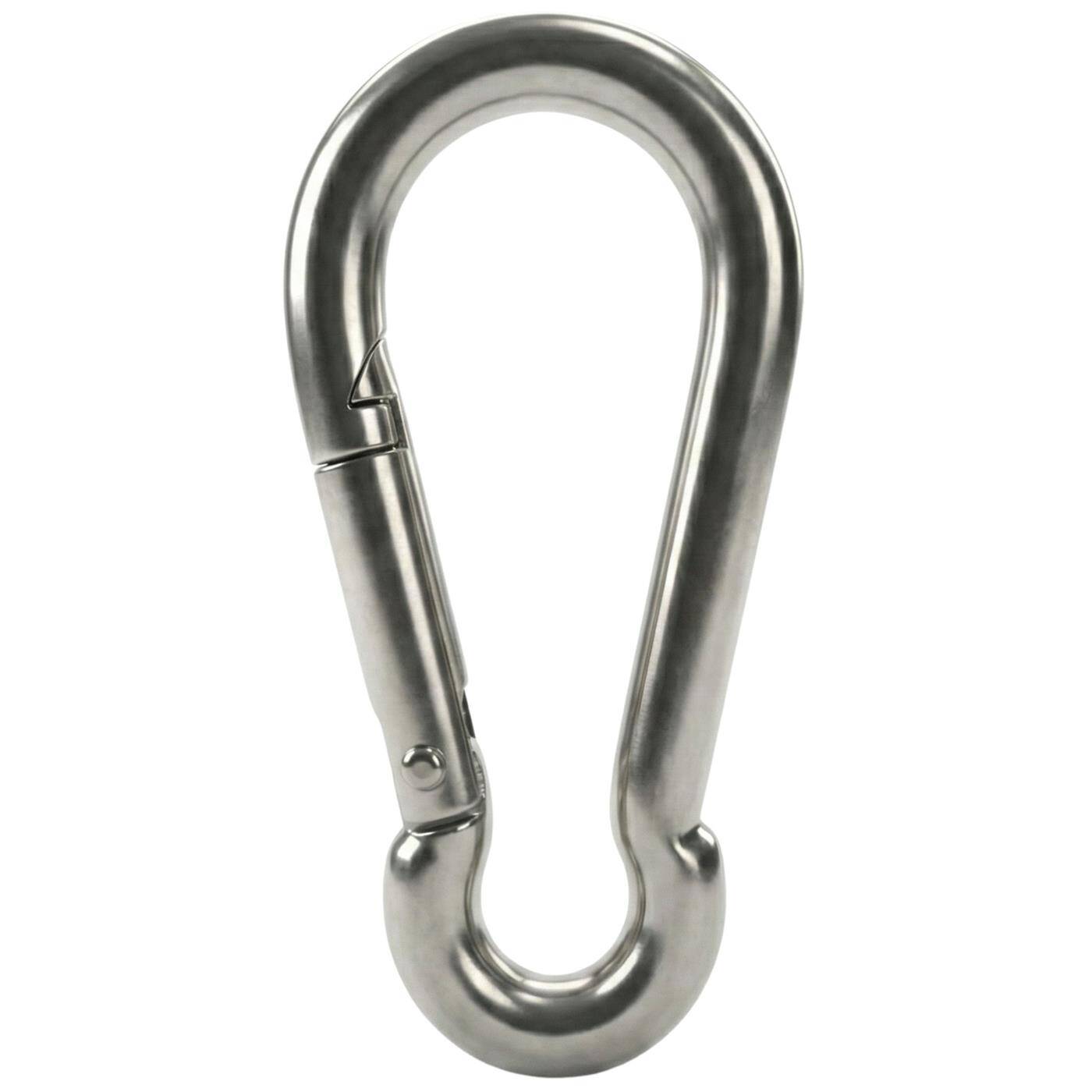

Lumonic Standard V4A stainless steel carabiner | 6x60mm | Stainless + seawater resistant | for awnings, hammocks, dogs, camping
€1.20*
incl. VAT
plus shipping costs

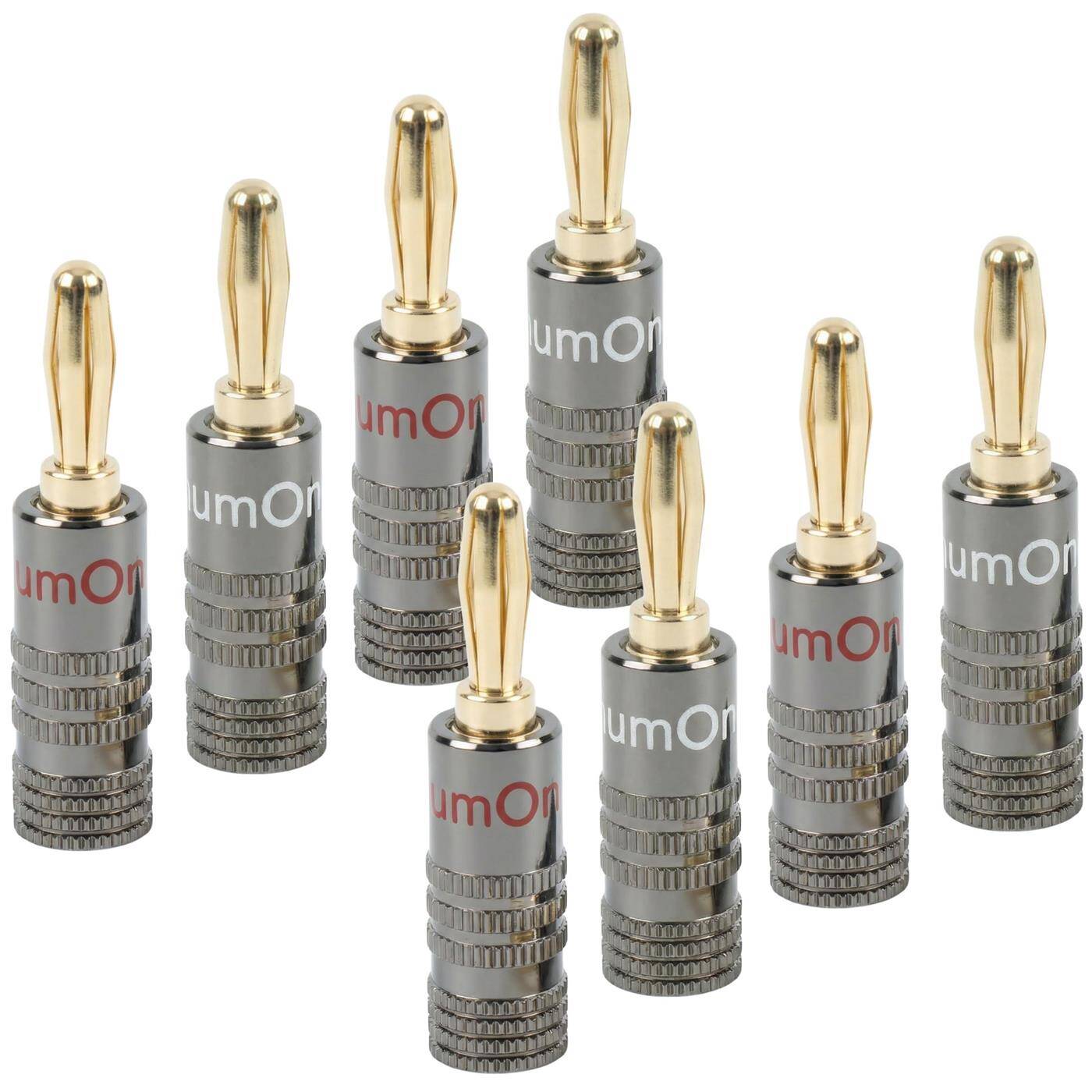

Lumonic Set of 8 HiFi banana plugs gray | straight, screwable, gold-plated 4mm contacts | for 0.75mm²...4.0mm² | Metal housing | for amplifier, loudspeaker, surround system
