MEAN WELL LRS-75-12 72W 12V 6A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-006130
Model:
LRS-75-12
Shipping weight:
0.3 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
Regular price:
€12.00
(€0.00* / )
Content:
1 Stück
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Low current consumption in load-free operation |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 6A |
| Power: | 72W |
| Input voltage (min...max): | 85...373VAC |
| Output voltage (min...max): | 10,2...13,8VDC |
| Efficiency: | 89% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

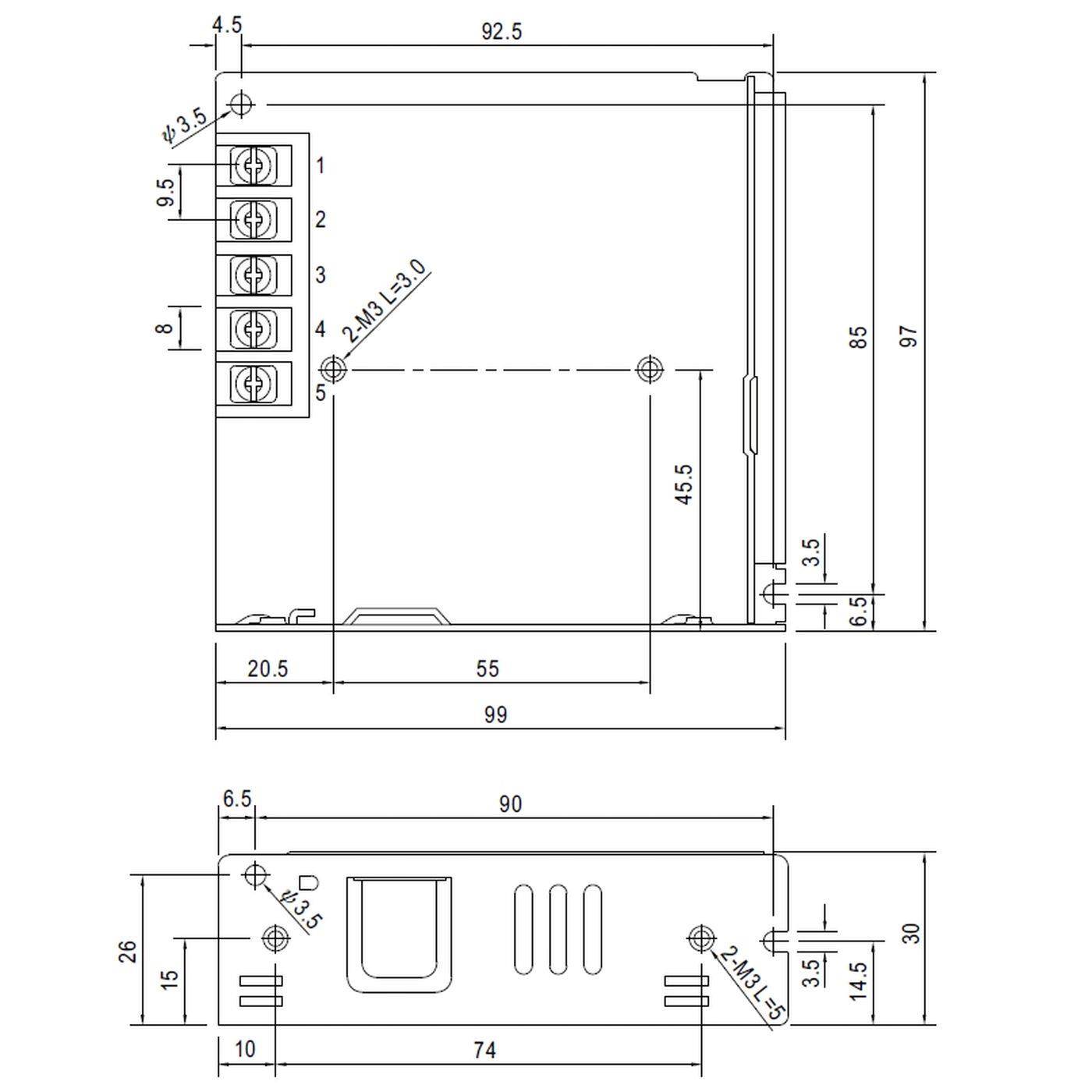

| Length: | 99mm |
| Width: | 97mm |
| Height: | 30mm |
