MEAN WELL LPV-20-15 20W 15V 1,33A LED power supply IP67
Available, delivery time: 1-3 days
Article-No.:
IT-005197
Model:
LPV-20-15
Shipping weight:
0.25 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€9.50
|
| 6 - 10 |
€9.41
|
| 11 - 20 |
€9.31
|
| 21 - 50 |
€9.22
|
| 51 - 100 |
€9.22
|
| From 101 |
€9.22
|
Content:
1 Stück
Product description
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ IP67, for indoor and outdoor applications |
| ✔ UL1310 Class 2 |
| ✔ fixed output voltage |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 15V |
| Output current: | 1,33A |
| Power: | 20W |
| Input voltage (min...max): | 90...264VAC |
| Efficiency: | 83% |
| Protection class: | IP67 |
| Input connection: | Cable: 2x60cm |
| Connection Output: | Cable: 2x60cm |

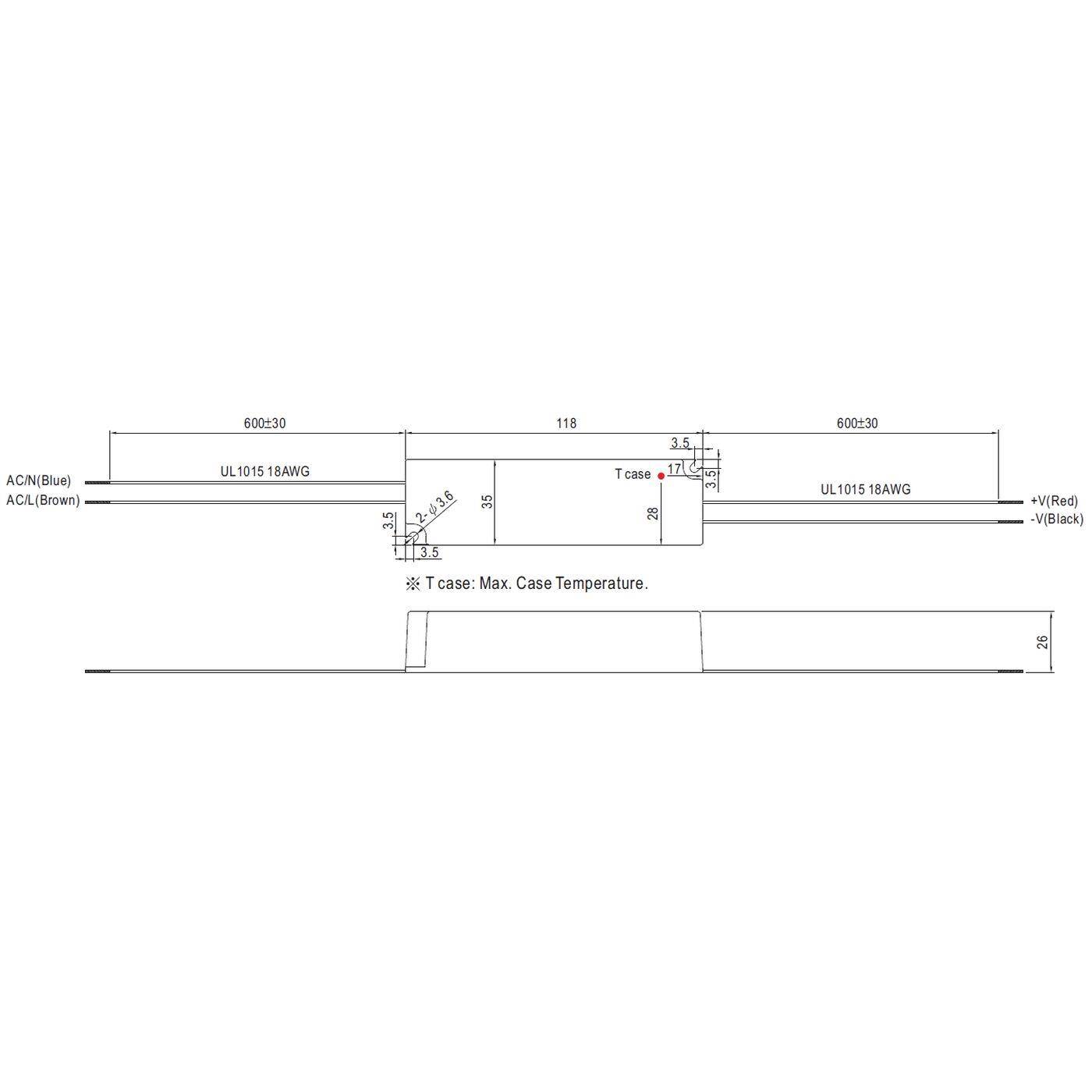

| Length: | 118mm |
| Width: | 35mm |
| Height: | 26mm |
