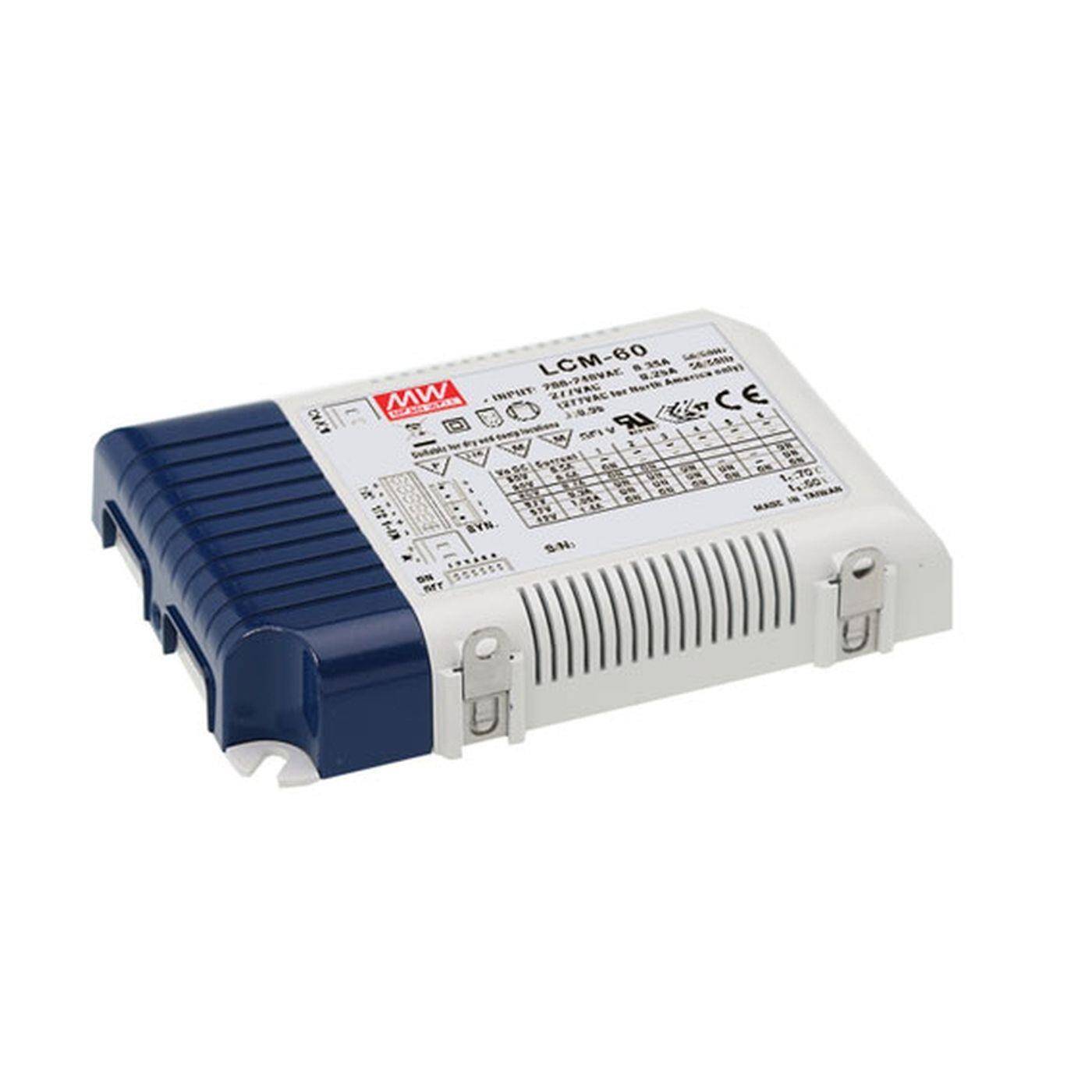

MEAN WELL LCM-60 60W 0-10V Dimmable Constant current LED power supply 500 600 700 900 1050 1400mA
Available, delivery time: 1-3 days
Article-No.:
IT-005818
Model:
LCM-60
Shipping weight:
0.24 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
Regular price:
€25.00
(€0.00* / )
Content:
1 Stück
Product description
| ✔ Dimmable version (external voltage 0...10V DC, PWM) |
| ✔ Plastic housing IP20 |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short-circuit, overtemperature, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Insulation class II |
| ✔ for LED and lighting applications |
| ✔ Constant current selectable via DIP switch |
| ✔ NTC connection for temperature compensation |
| ✔ EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13, EN61547 Criteria A |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant current |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Power: | 60W |
| Input voltage (min...max): | 180...295VAC |
| Efficiency: | 92% |
| Dimmable: | 0-10V |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

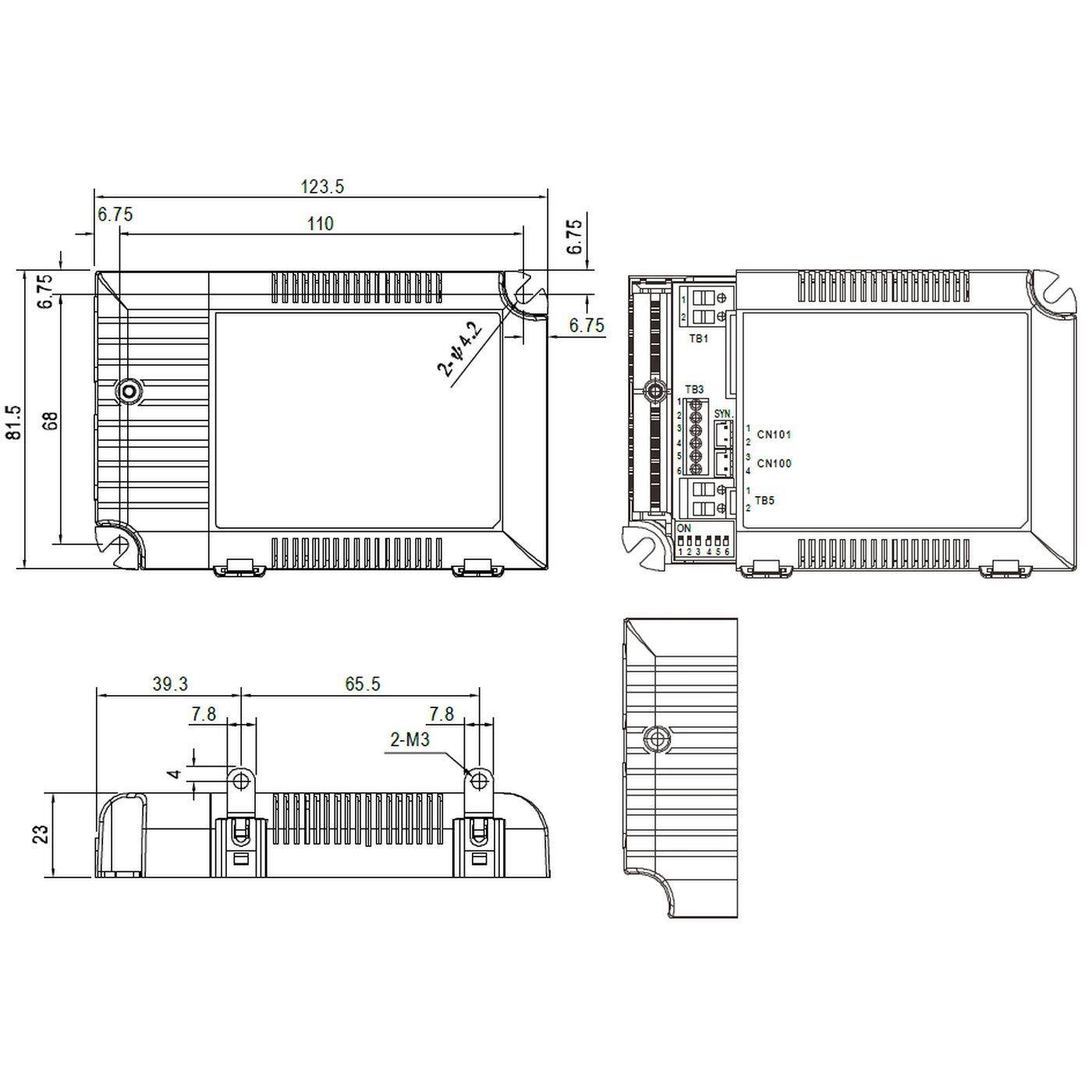

| Length: | 123,5mm |
| Width: | 81,5mm |
| Height: | 23mm |
