MEAN WELL HRP-300-36 324W 36V 9A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-009535
Model:
HRP-300-36
Shipping weight:
0.95 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
Regular price:
€70.00
(€0.00* / )
Content:
1 Stück
Product description
| ✔ closed design (case), screw terminals |
| ✔ Universal input |
| ✔ Overvoltage protection 300V AC/5s |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Low overall height |
| ✔ Sensor connection for correct voltage at the load |
| ✔ DC-OK signal |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 36V |
| Output current: | 9A |
| Power: | 324W |
| Input voltage (min...max): | 85...264VAC |
| Output voltage (min...max): | 28,8…39,6VDC |
| Efficiency: | 88% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

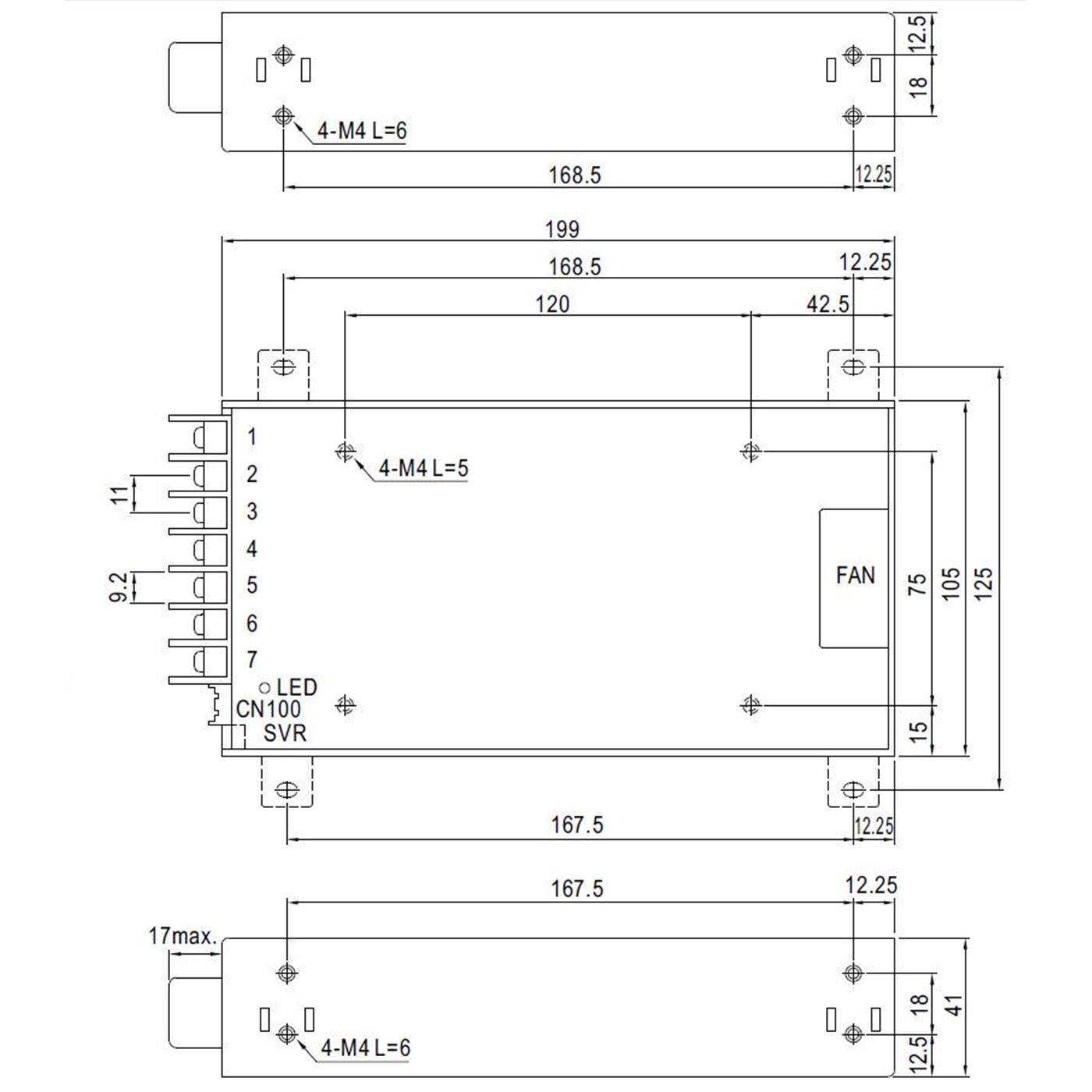

| Length: | 199mm |
| Width: | 105mm |
| Height: | 41mm |
