MDR-60-5 50W 5V 10A Din Rail power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005322
Model:
MDR-60-5
Shipping weight:
0.33 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ Universal input |
| ✔ Closed design, contact-protected screw connections |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ LED indicator for power-on |
| ✔ Low idle power |
| ✔ DC OK relay output |
| ✔ complies with NEC Class 2 |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 5V |
| Output current: | 10A |
| Power: | 50W |
| Input voltage (min...max): | 85...264VAC |
| Output voltage (min...max): | 5...6VDC |
| Efficiency: | 78% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

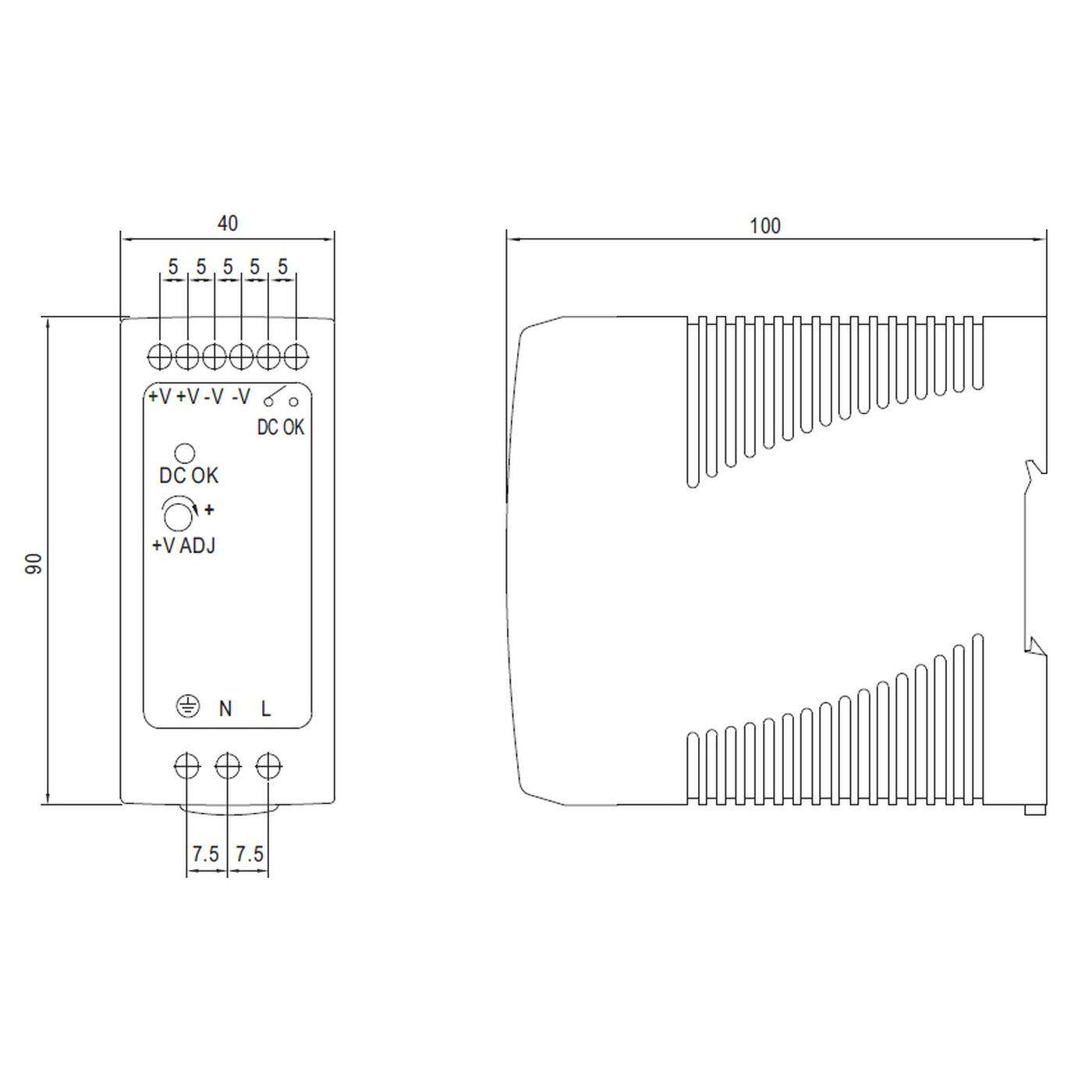

| Length: | 90mm |
| Width: | 40mm |
| Height: | 100mm |
