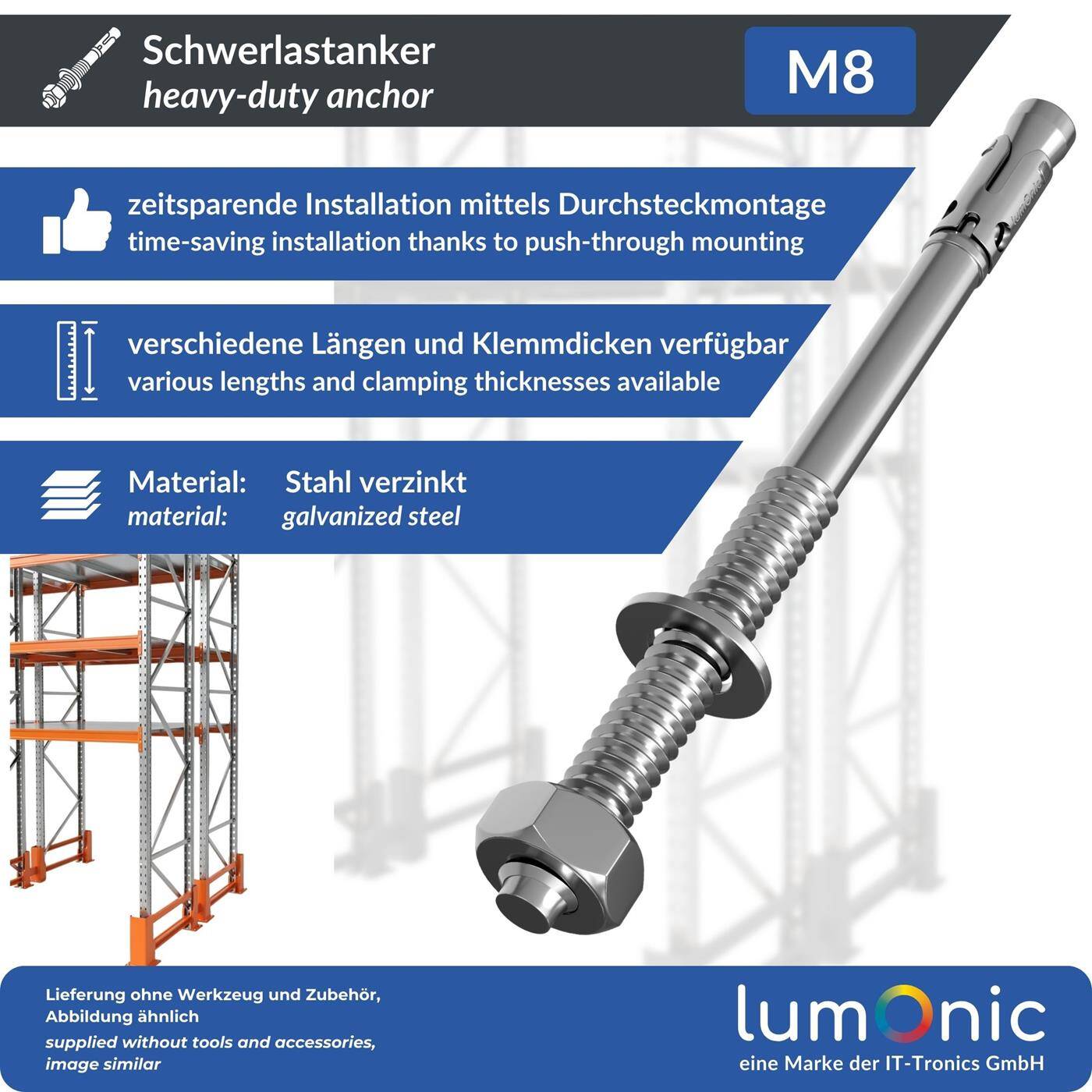

M8x150mm Heavy duty anchor Galvanised Wedge anchor Heavy Duty Anchor Wedge anchor Lightning dowel
Available, delivery time: 1-3 days
Article-No.:
IT-006359
Model:
KDK 8-85/150
Shipping weight:
0.06 kg
Shipping Zone:
30
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 5 - 50 |
€0.70*
|
| 51 - 100 |
€0.69*
|
| 101 - 200 |
€0.67*
|
| 201 - 500 |
€0.66*
|
| 501 - 1000 |
€0.64*
|
| From 1001 |
€0.63*
|
Product description

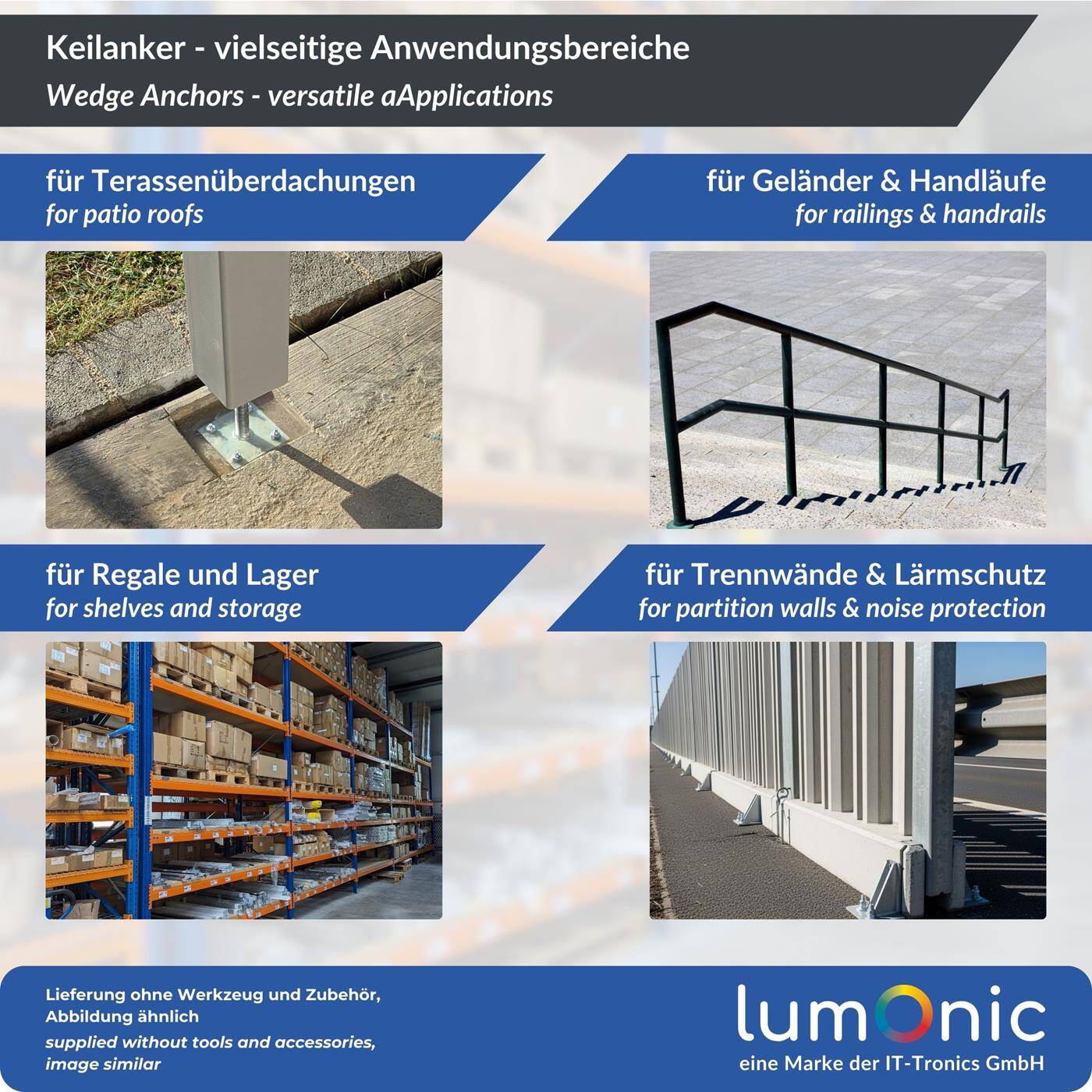

| ✔ RELIABLE ANCHORING: High-quality Lumonic heavy-duty anchors ensure that your roofing, railings, shelving and partition walls in concrete and masonry are immediately load-bearing and durable. |
| ✔ OPTIMUM RUST PROTECTION: The galvanized surface provides reliable protection against rust and ensures long-lasting fastening, even outdoors and in damp environments. |

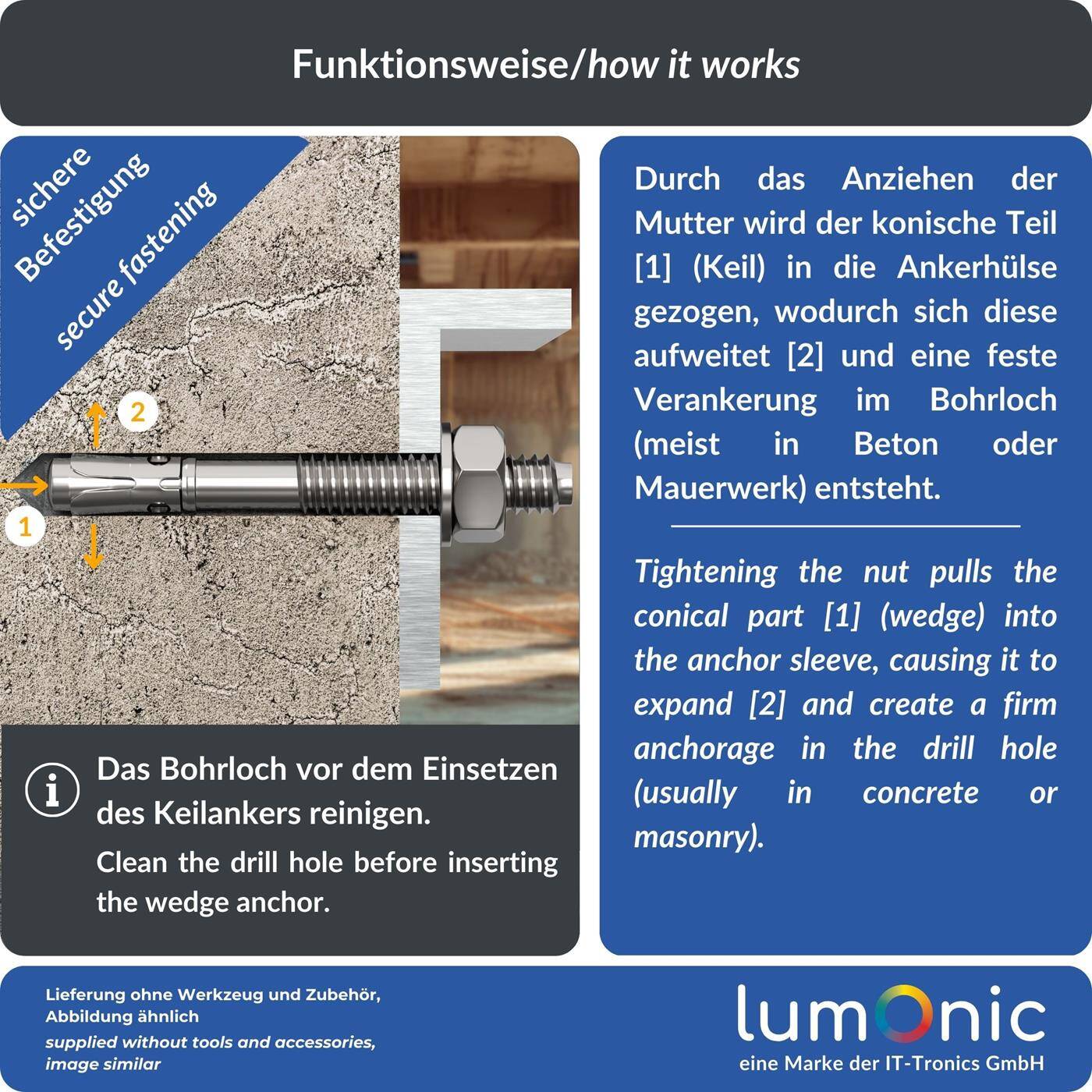

| ✔ VERSATILE PUSH-THROUGH MOUNTING: Ideal for angle profiles, rails, brackets and wooden beams - the cone-spreader mechanism is activated by simply tightening the nut without a setting tool. |
| ✔ IMMEDIATELY LOADABLE: No curing times as with chemical anchors - you can load your construction immediately after installation and complete your project without waiting. |

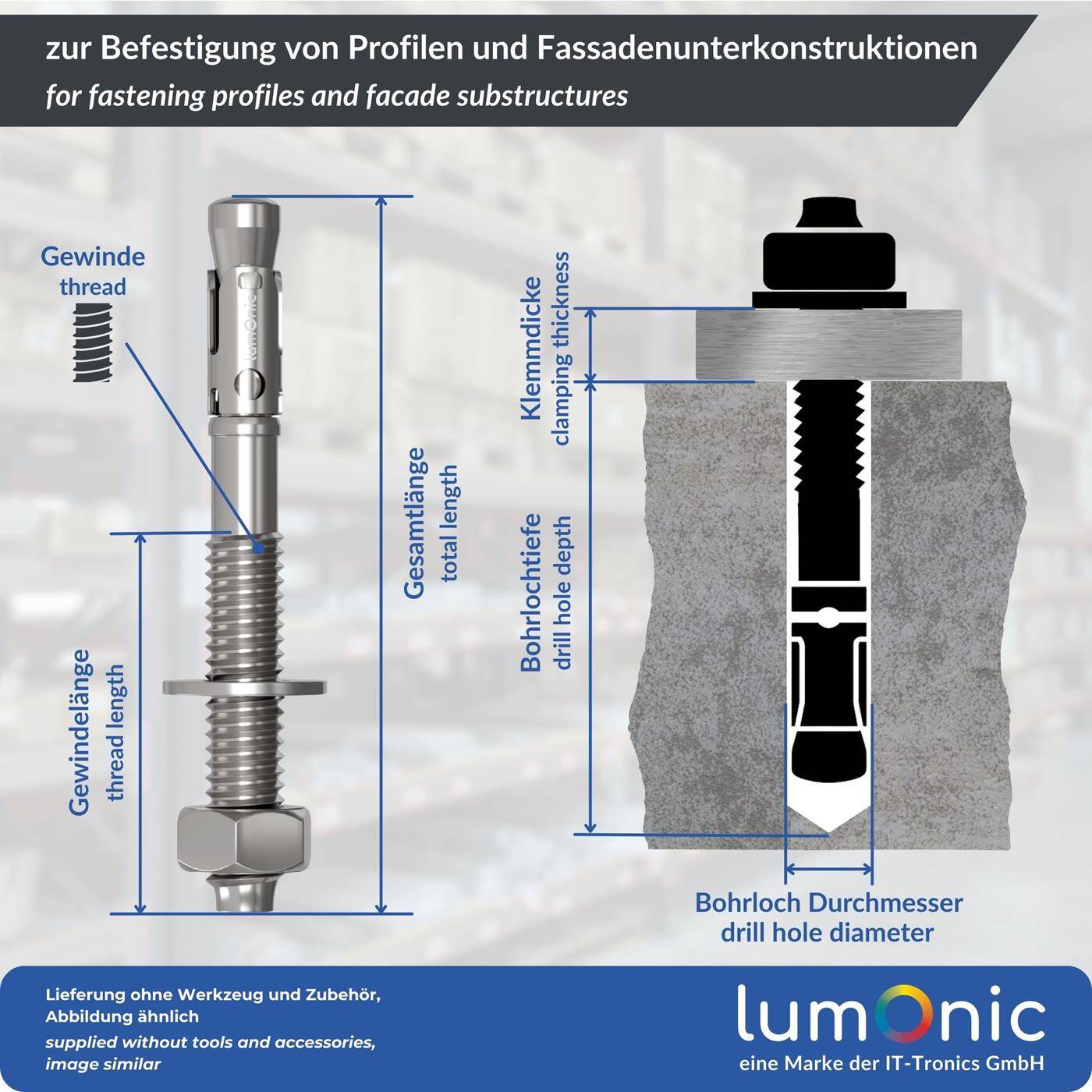

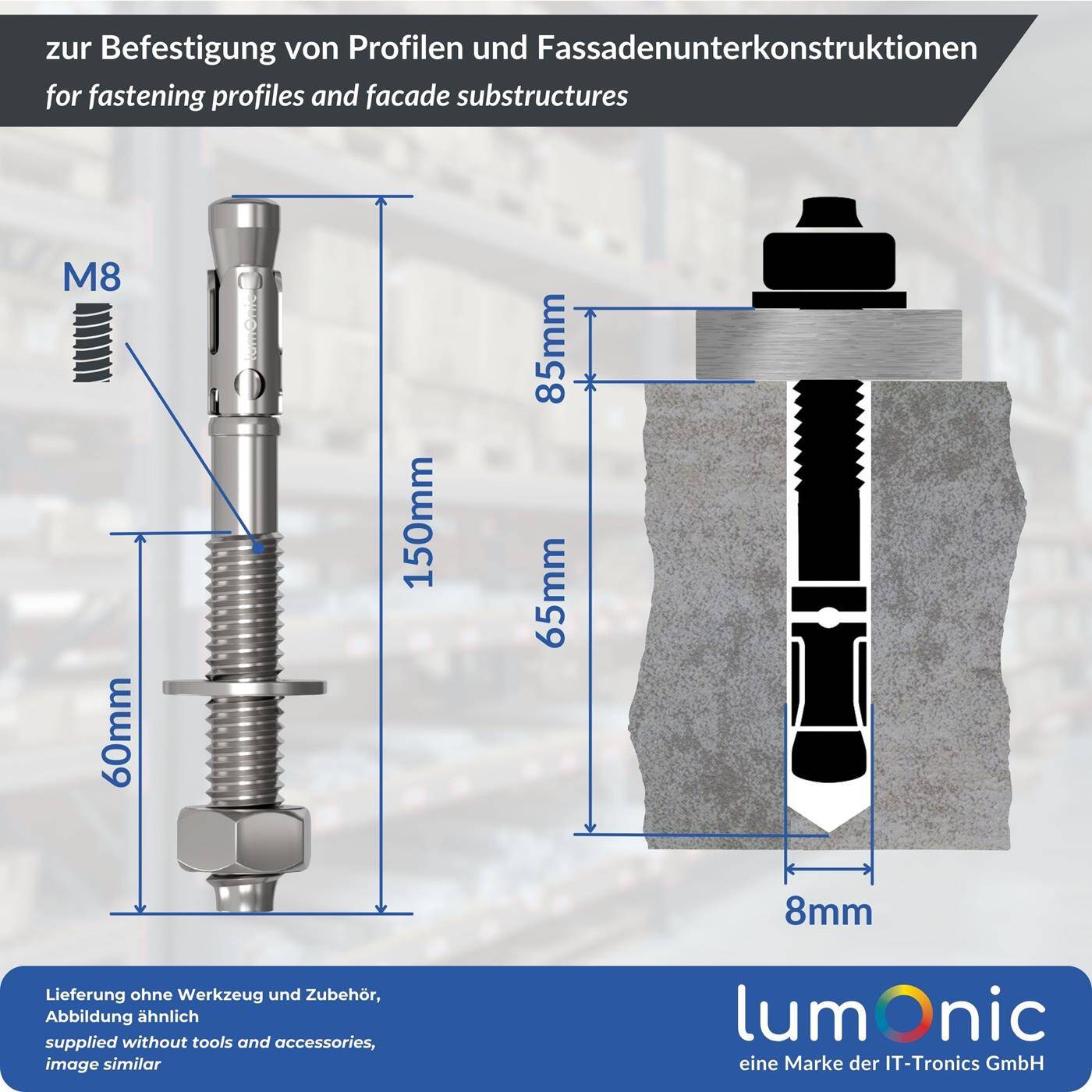

| ✔ TECHNICAL SPECIFICATIONS: M8 Thread, 150mm Total length, 60mm Thread length, 85mm Clamping thickness, 8mm Drill hole, 65mm Drilling depth - Precise dimensions for secure installation. |
Technical specifications
| Product: | Metal dowels |
|---|---|
| Species: | Heavy duty anchor |
| Material / Quality: | Galvanised |
| Thread: | M8 |
| Total length: | 150mm |
| Thread length: | 60mm |
| Clamping thickness: | 85mm |
| Drill hole Diameter: | 8mm |
| Drill hole Length: | 65mm |
| Torque: | 15Nm |
