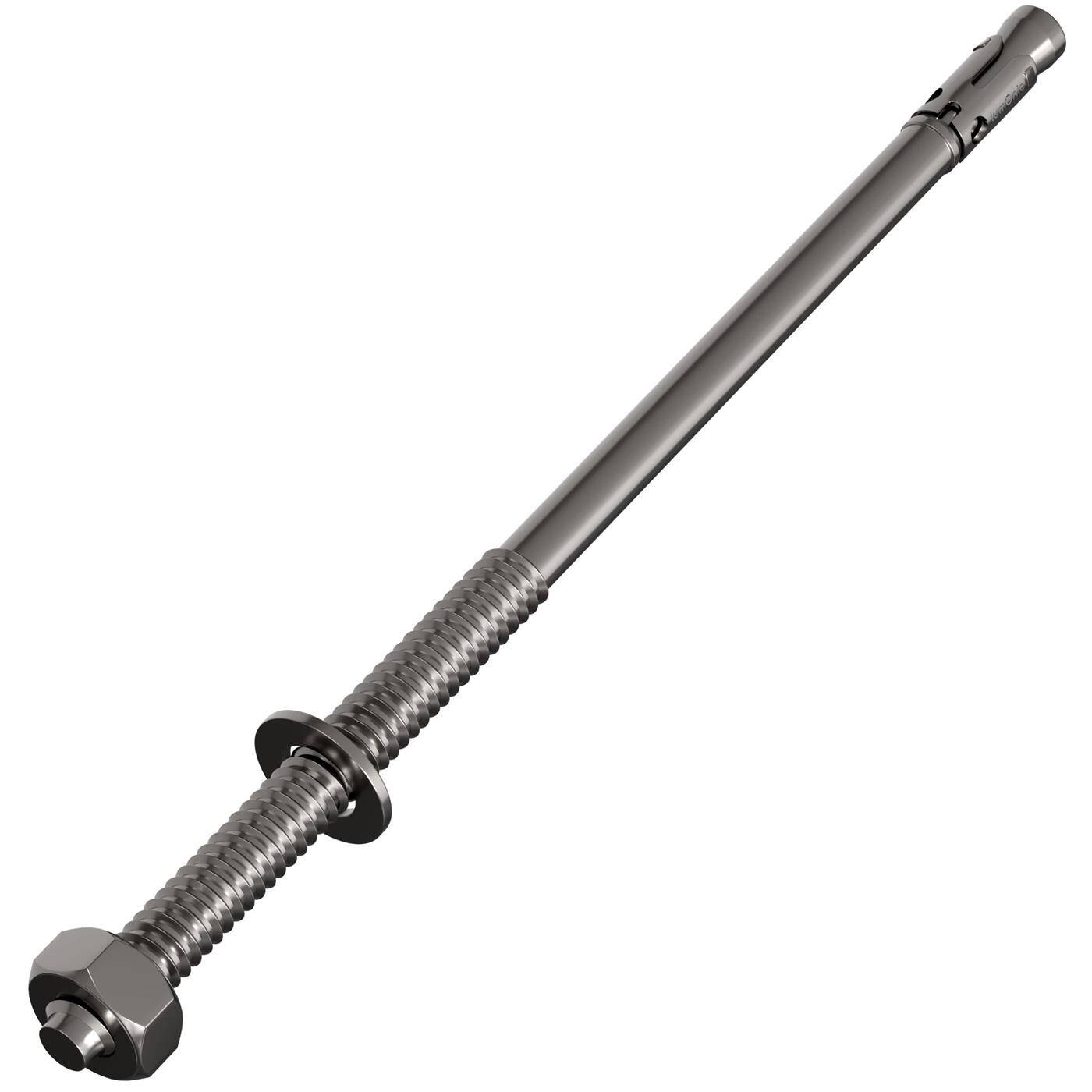

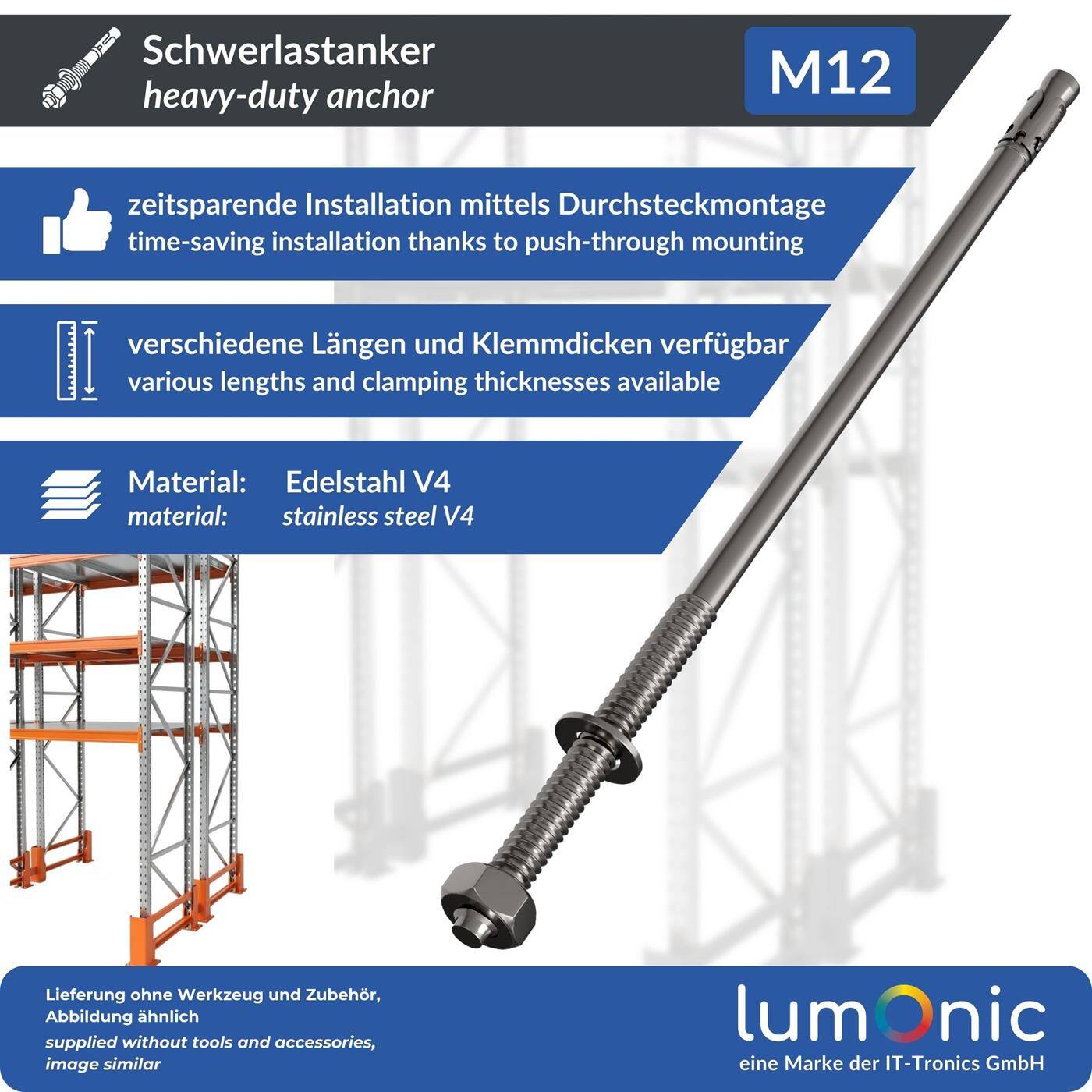

M12x240mm Heavy duty anchor V4A Stainless steel Wedge anchor Heavy Duty Anchor Wedge anchor Lightning dowel
Available, delivery time: 1-3 days
Article-No.:
IT-006670
Model:
KDK-E A4 12-145/240
Shipping weight:
0.197 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€7.50*
|
| 6 - 10 |
€7.35*
|
| 11 - 20 |
€7.20*
|
| 21 - 50 |
€7.13*
|
| 51 - 100 |
€7.05*
|
| From 101 |
€6.98*
|
Product description
| ✔ RELIABLE ANCHORING: High-quality Lumonic heavy-duty anchors ensure that your roofing, railings, shelving and partition walls in concrete and masonry are immediately load-bearing and durable. |
| ✔ OPTIMUM RUST PROTECTION: The stainless steel V4A wedge anchors offer reliable protection against rust and ensure long-lasting fastening, even outdoors and in damp environments. |

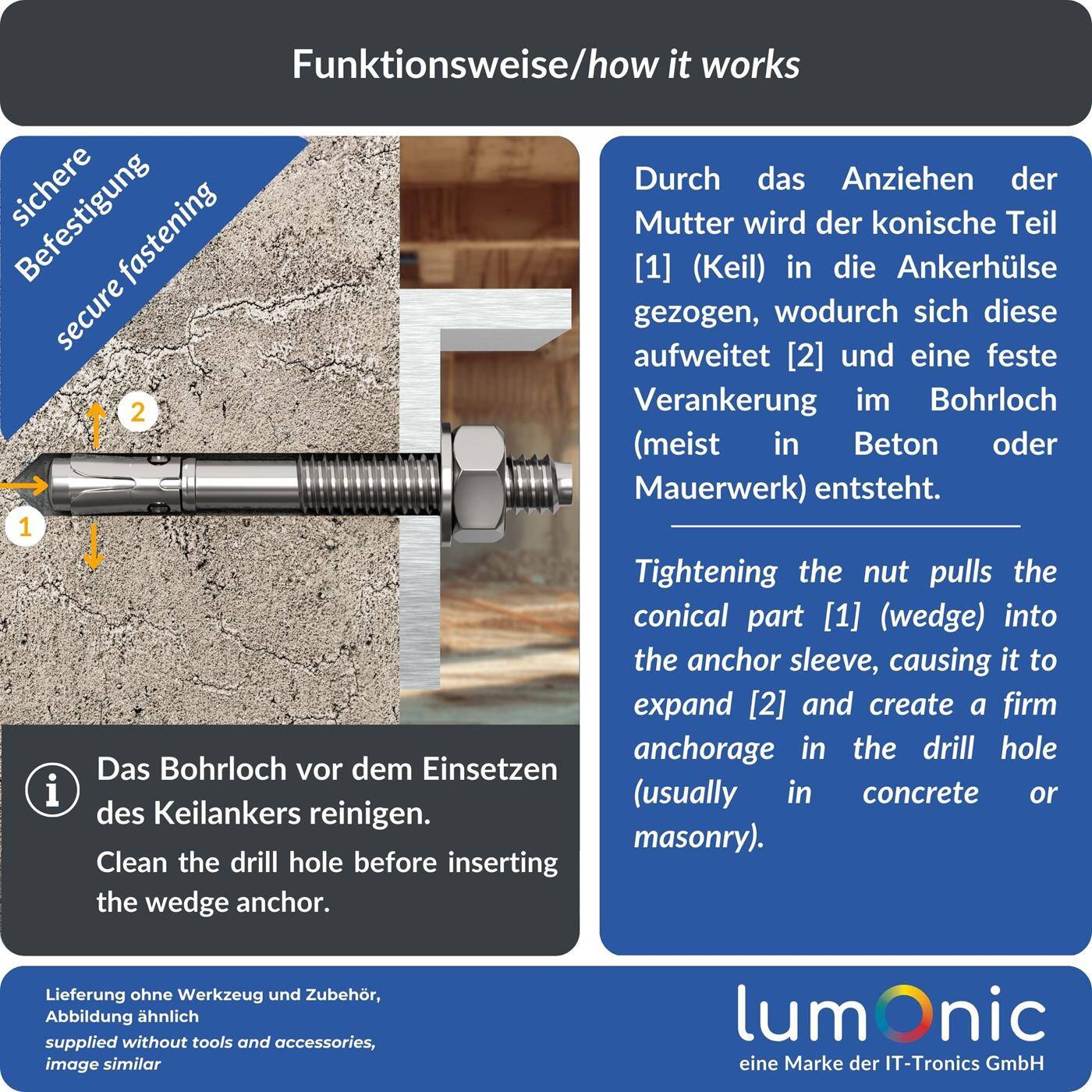

| ✔ VERSATILE PUSH-THROUGH MOUNTING: Ideal for angle profiles, rails, brackets and wooden beams - the cone-spreader mechanism is activated by simply tightening the nut without a setting tool. |
| ✔ IMMEDIATELY LOADABLE: No curing times as with chemical anchors - you can load your construction immediately after installation and complete your project without waiting. |

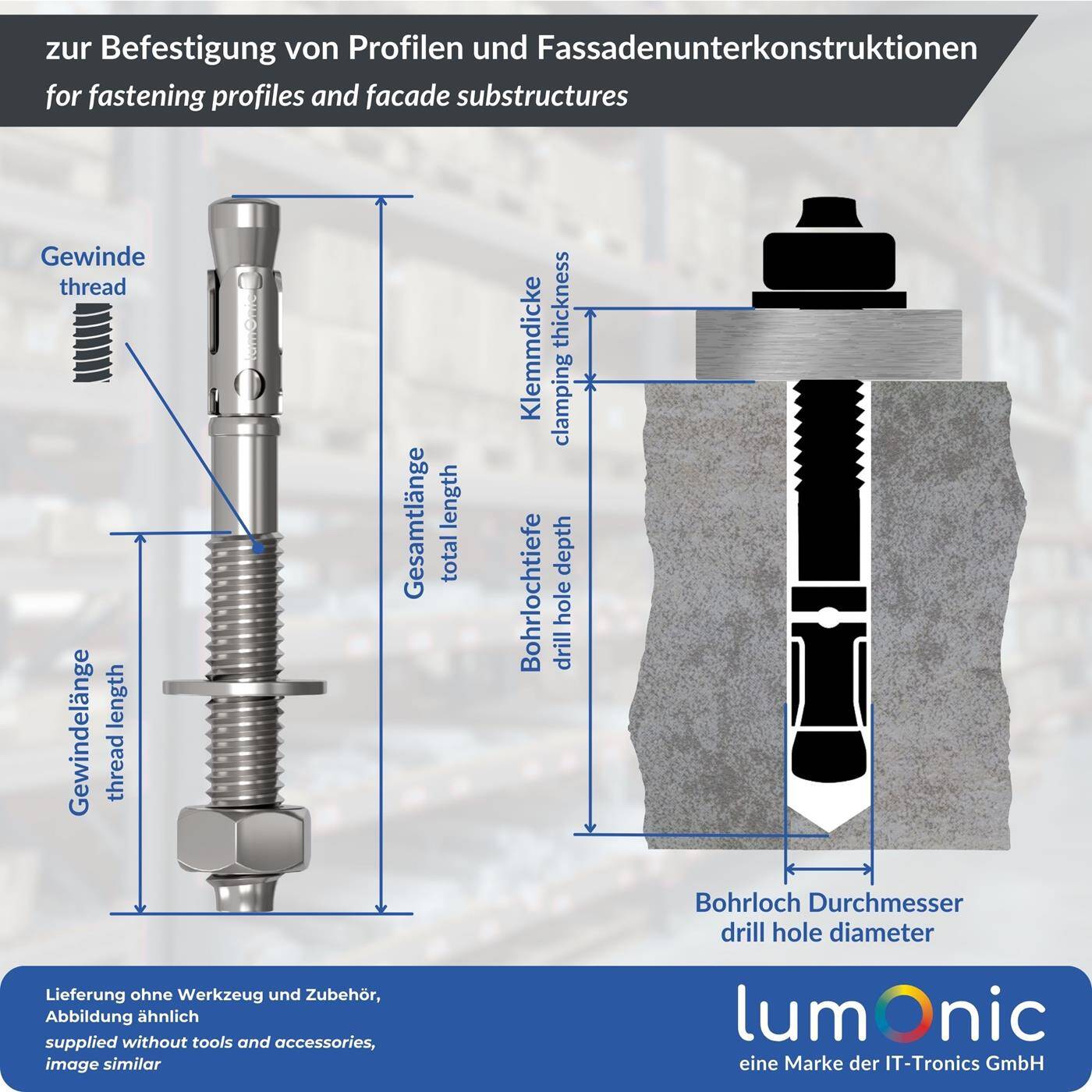

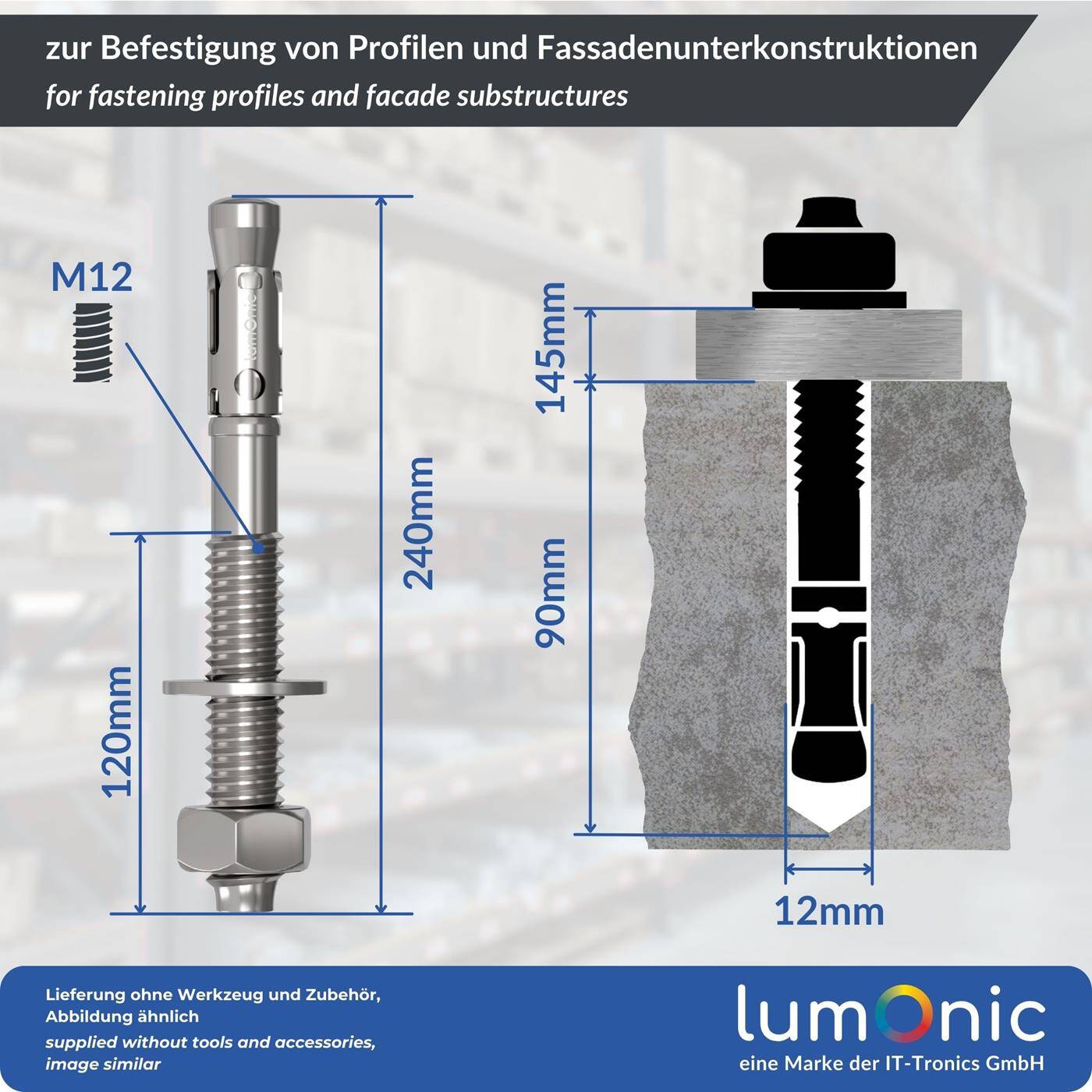

| ✔ TECHNICAL SPECIFICATIONS: M12 Thread, 240mm Total length, 120mm Thread length, 145mm Clamping thickness, 12mm Drill hole, 90mm Drilling depth - Precise dimensions for secure installation. |
Technical specifications
| Product: | Metal dowels |
|---|---|
| Species: | Heavy duty anchor |
| Material / Quality: | Stainless steel A4 |
| Thread: | M12 |
| Total length: | 240mm |
| Thread length: | 120mm |
| Clamping thickness: | 145mm |
| Drill hole Diameter: | 12mm |
| Drill hole Length: | 90mm |
| Torque: | 50Nm |
