M12x180mm Heavy duty anchor Galvanised Wedge anchor Heavy Duty Anchor Wedge anchor Lightning dowel
Available, delivery time: 1-3 days
Article-No.:
IT-006374
Model:
KDK 12-85/180
Shipping weight:
0.17 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 5 - 20 |
€1.60*
|
| 21 - 50 |
€1.57*
|
| 51 - 100 |
€1.54*
|
| 101 - 200 |
€1.50*
|
| 201 - 500 |
€1.47*
|
| From 501 |
€1.44*
|
Product description

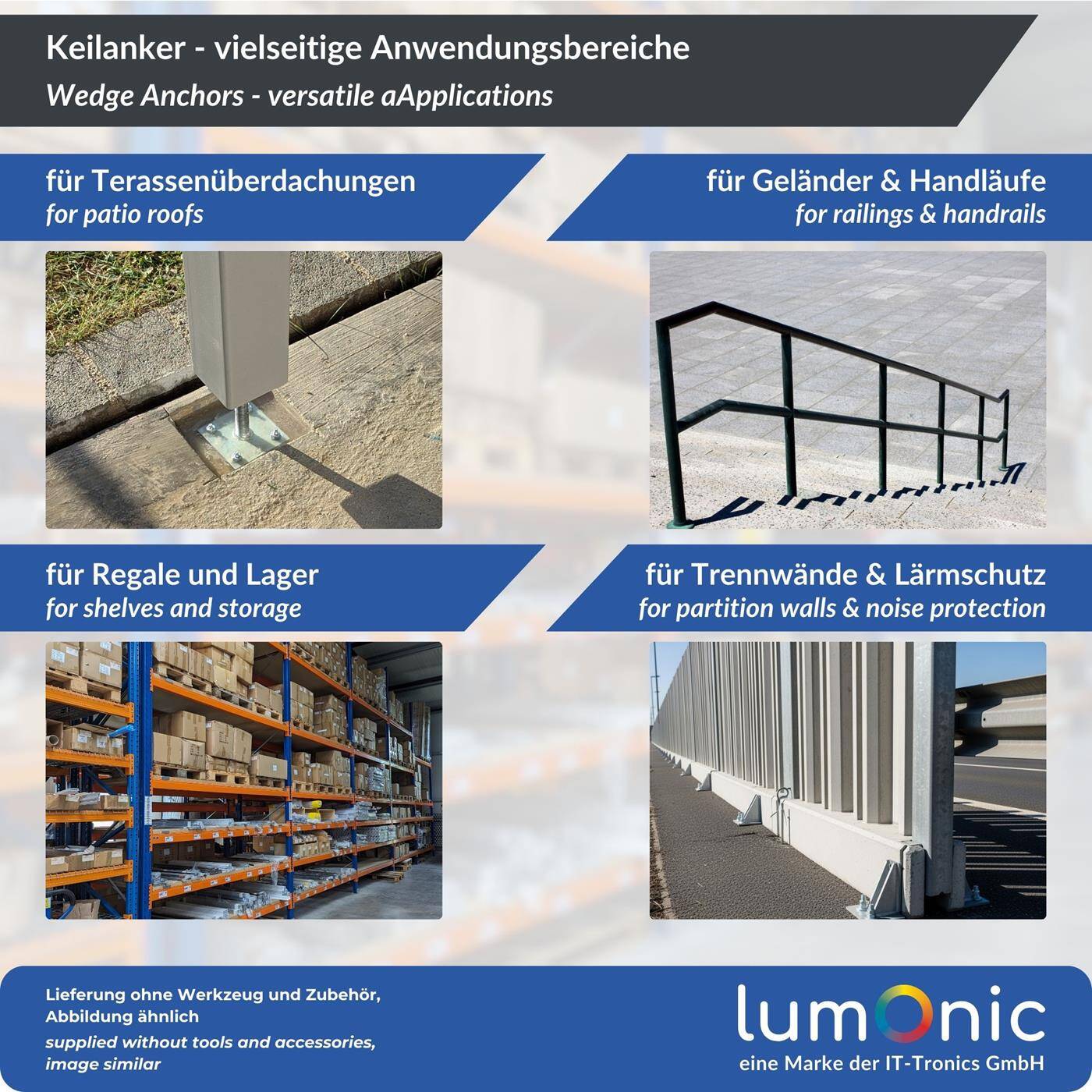

| ✔ RELIABLE ANCHORING: High-quality Lumonic heavy-duty anchors ensure that your roofing, railings, shelving and partition walls in concrete and masonry are immediately load-bearing and durable. |
| ✔ OPTIMUM RUST PROTECTION: The galvanized surface provides reliable protection against rust and ensures long-lasting fastening, even outdoors and in damp environments. |
| ✔ VERSATILE PUSH-THROUGH MOUNTING: Ideal for angle profiles, rails, brackets and wooden beams - the cone-spreader mechanism is activated by simply tightening the nut without a setting tool. |
| ✔ IMMEDIATELY LOADABLE: No curing times as with chemical anchors - you can load your construction immediately after installation and complete your project without waiting. |

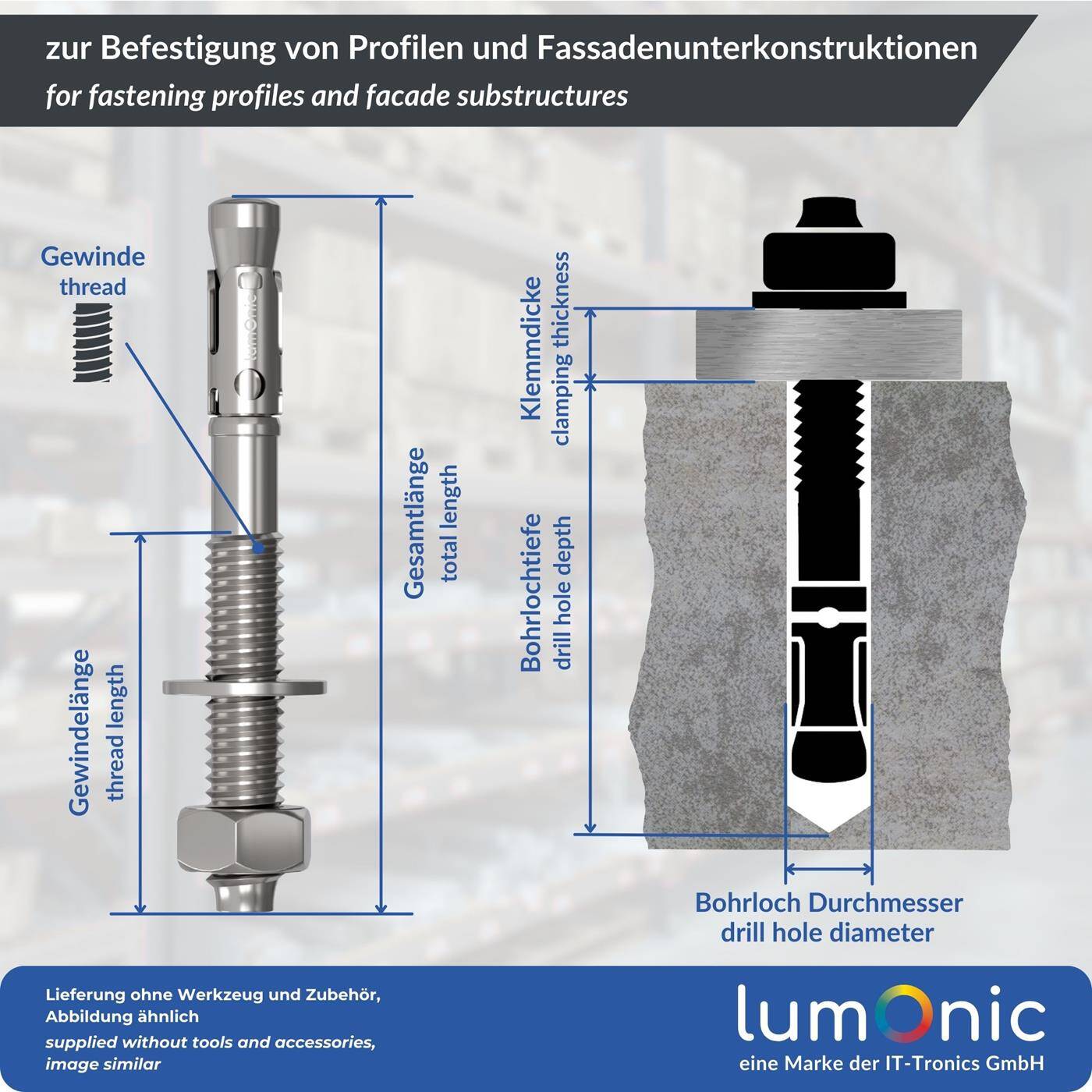

| ✔ TECHNICAL SPECIFICATIONS: M12 Thread, 180mm Total length, 100mm Thread length, 85mm Clamping thickness, 12mm Drill hole, 90mm Drilling depth - Precise dimensions for secure installation. |
Technical specifications
| Product: | Metal dowels |
|---|---|
| Species: | Heavy duty anchor |

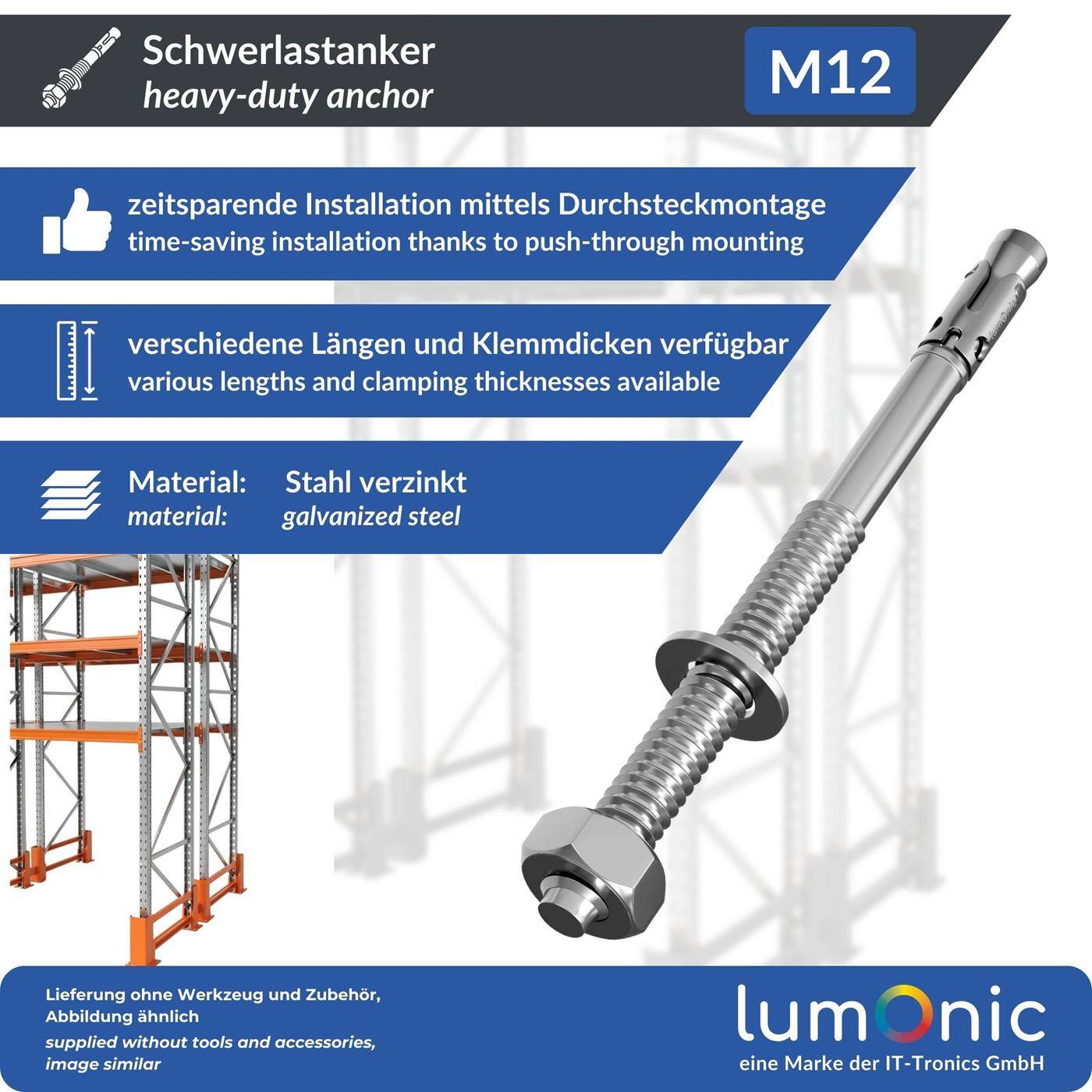

| Material / Quality: | Galvanised |

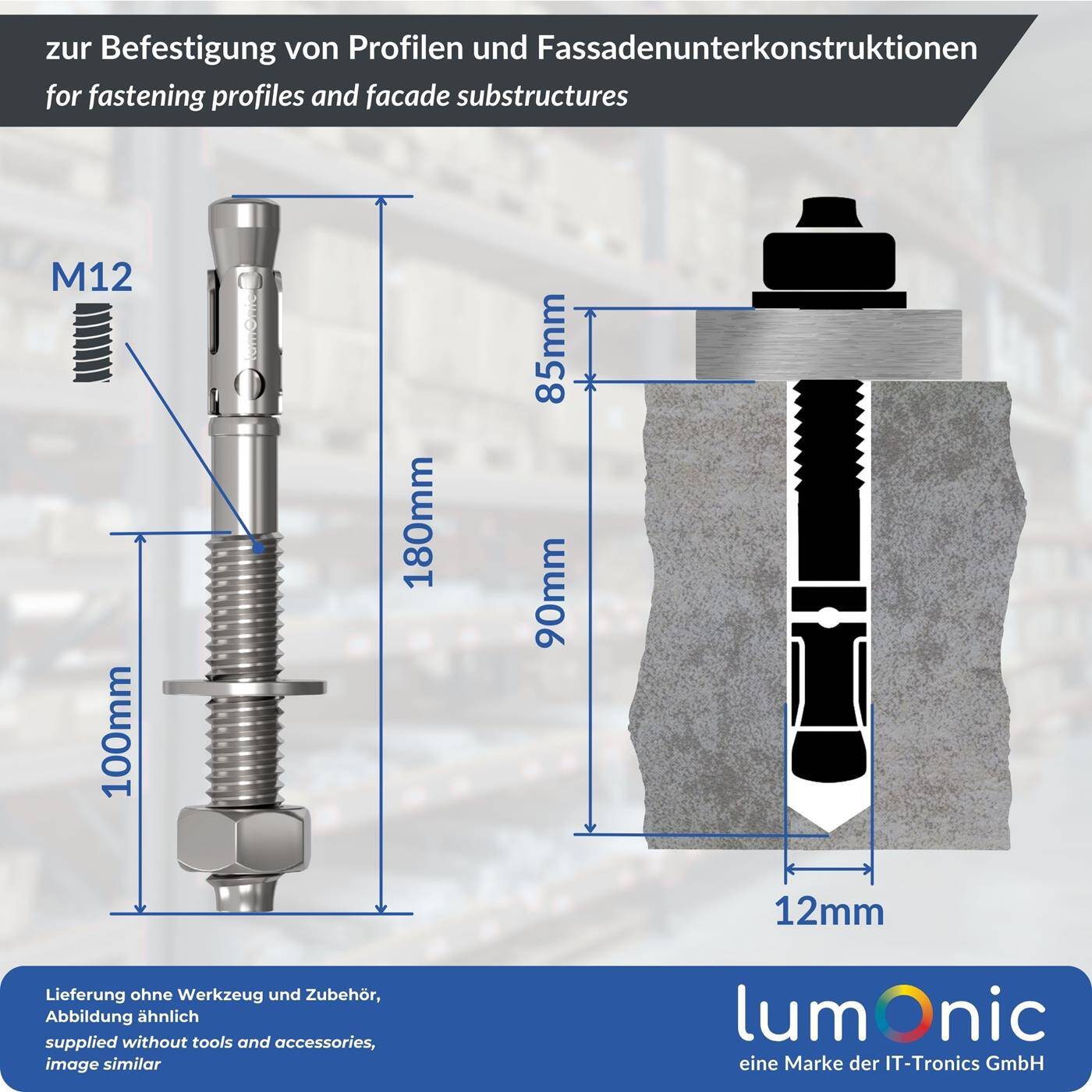

| Thread: | M12 |
| Total length: | 180mm |
| Thread length: | 100mm |
| Clamping thickness: | 85mm |
| Drill hole Diameter: | 12mm |
| Drill hole Length: | 90mm |
| Torque: | 50Nm |
