M10x80mm Heavy duty anchor Galvanised Wedge anchor Heavy Duty Anchor Wedge anchor Lightning dowel
Available, delivery time: 1-3 days
Article-No.:
IT-006360
Model:
KDK 10-10/80
Shipping weight:
0.06 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 5 - 50 |
€0.65*
|
| 51 - 100 |
€0.64*
|
| 101 - 200 |
€0.62*
|
| 201 - 500 |
€0.61*
|
| 501 - 1000 |
€0.60*
|
| From 1001 |
€0.59*
|
Product description

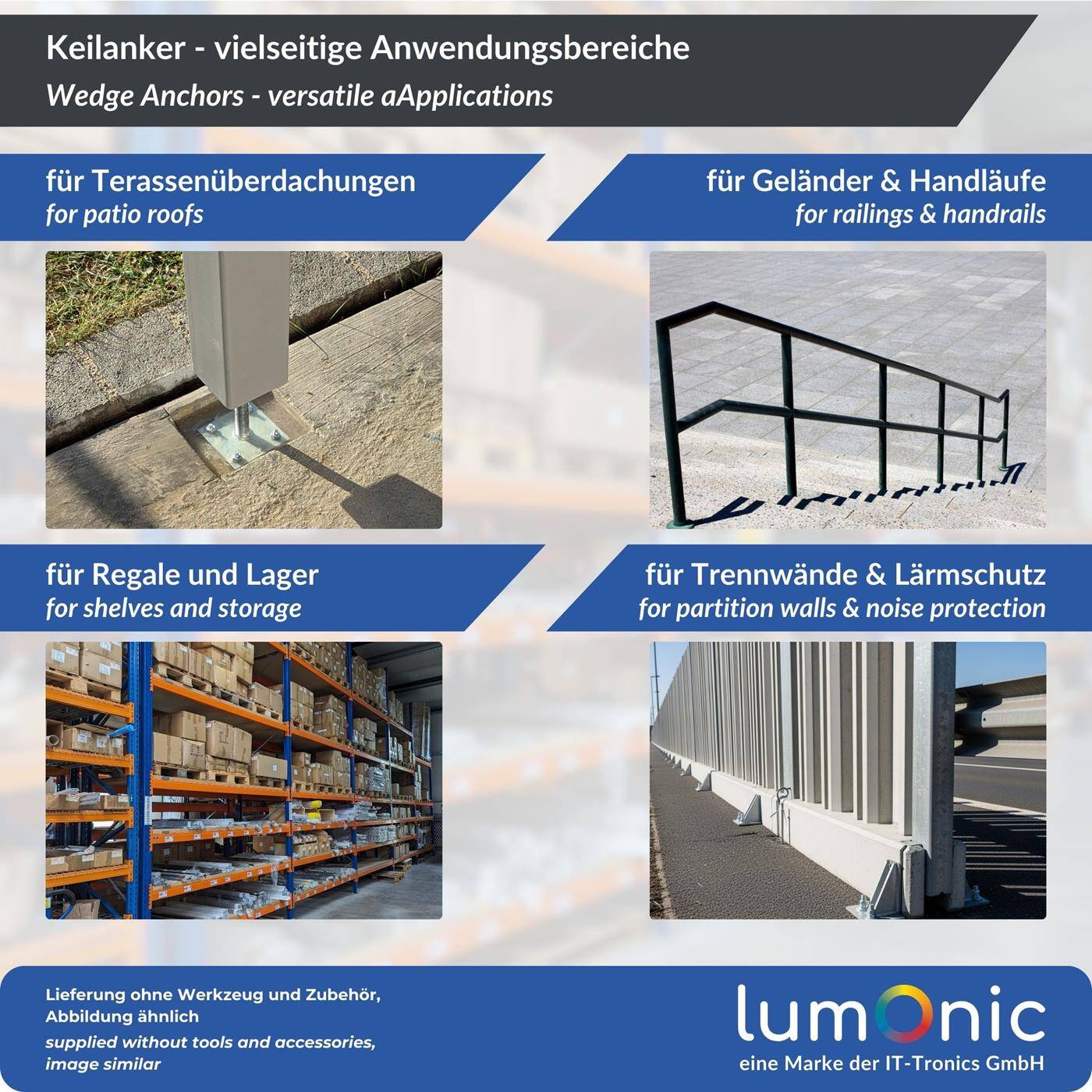

| ✔ RELIABLE ANCHORING: High-quality Lumonic heavy-duty anchors ensure that your roofing, railings, shelving and partition walls in concrete and masonry are immediately load-bearing and durable. |
| ✔ OPTIMUM RUST PROTECTION: The galvanized surface provides reliable protection against rust and ensures long-lasting fastening, even outdoors and in damp environments. |

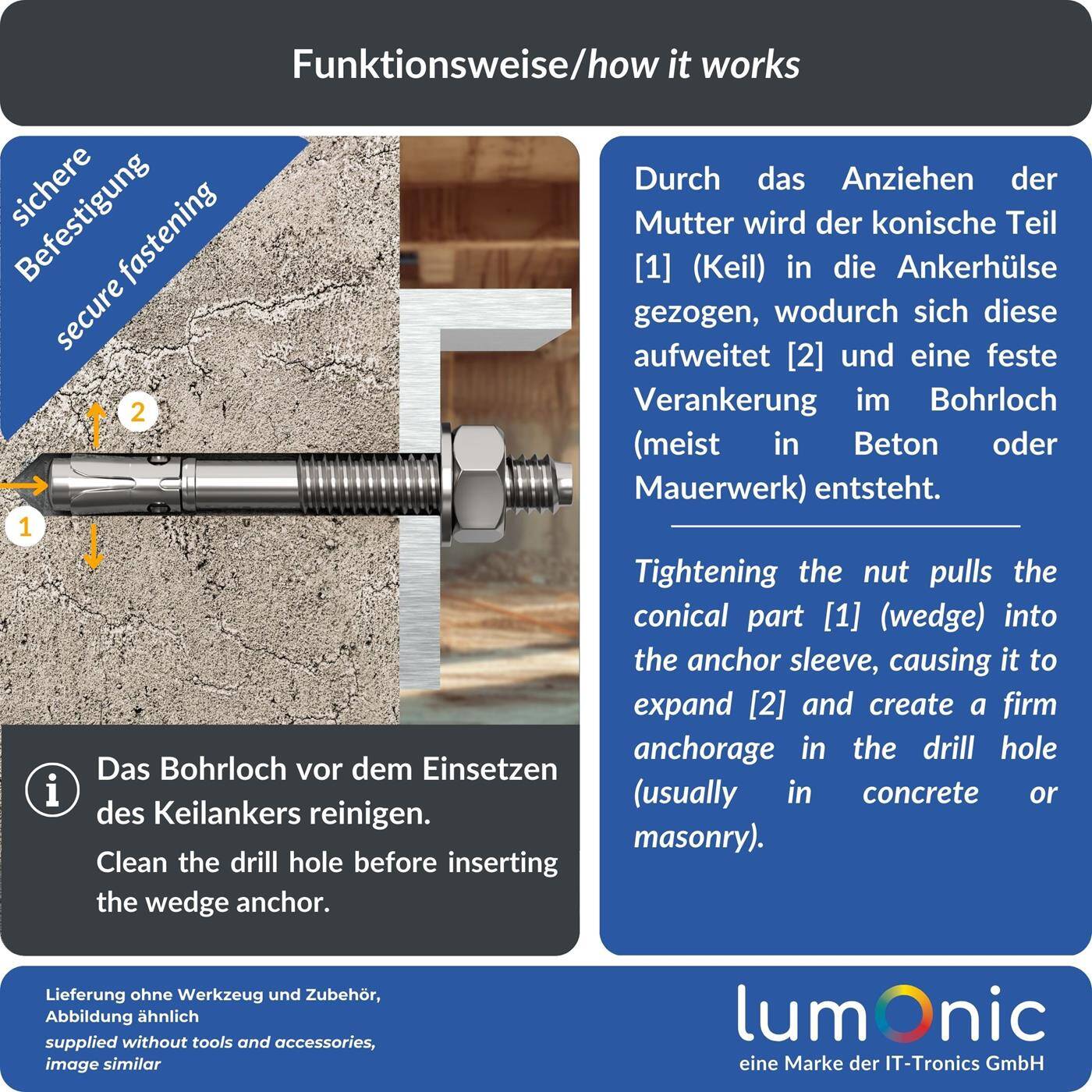

| ✔ VERSATILE PUSH-THROUGH MOUNTING: Ideal for angle profiles, rails, brackets and wooden beams - the cone-spreader mechanism is activated by simply tightening the nut without a setting tool. |
| ✔ IMMEDIATELY LOADABLE: No curing times as with chemical anchors - you can load your construction immediately after installation and complete your project without waiting. |

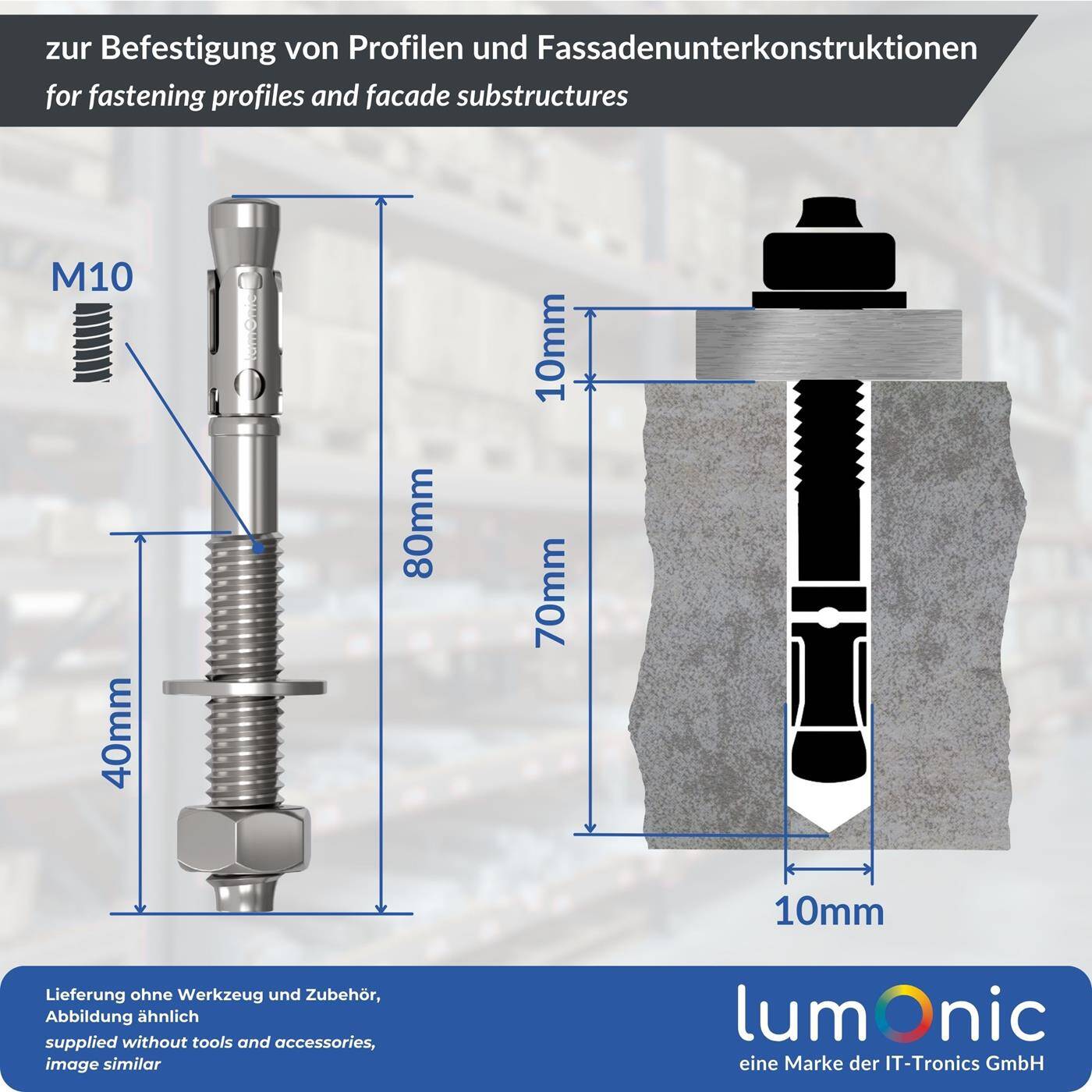

| ✔ TECHNICAL SPECIFICATIONS: M10 Thread, 80mm Total length, 40mm Thread length, 10mm Clamping thickness, 10mm Drill hole, 70mm Drilling depth - Precise dimensions for secure installation. |

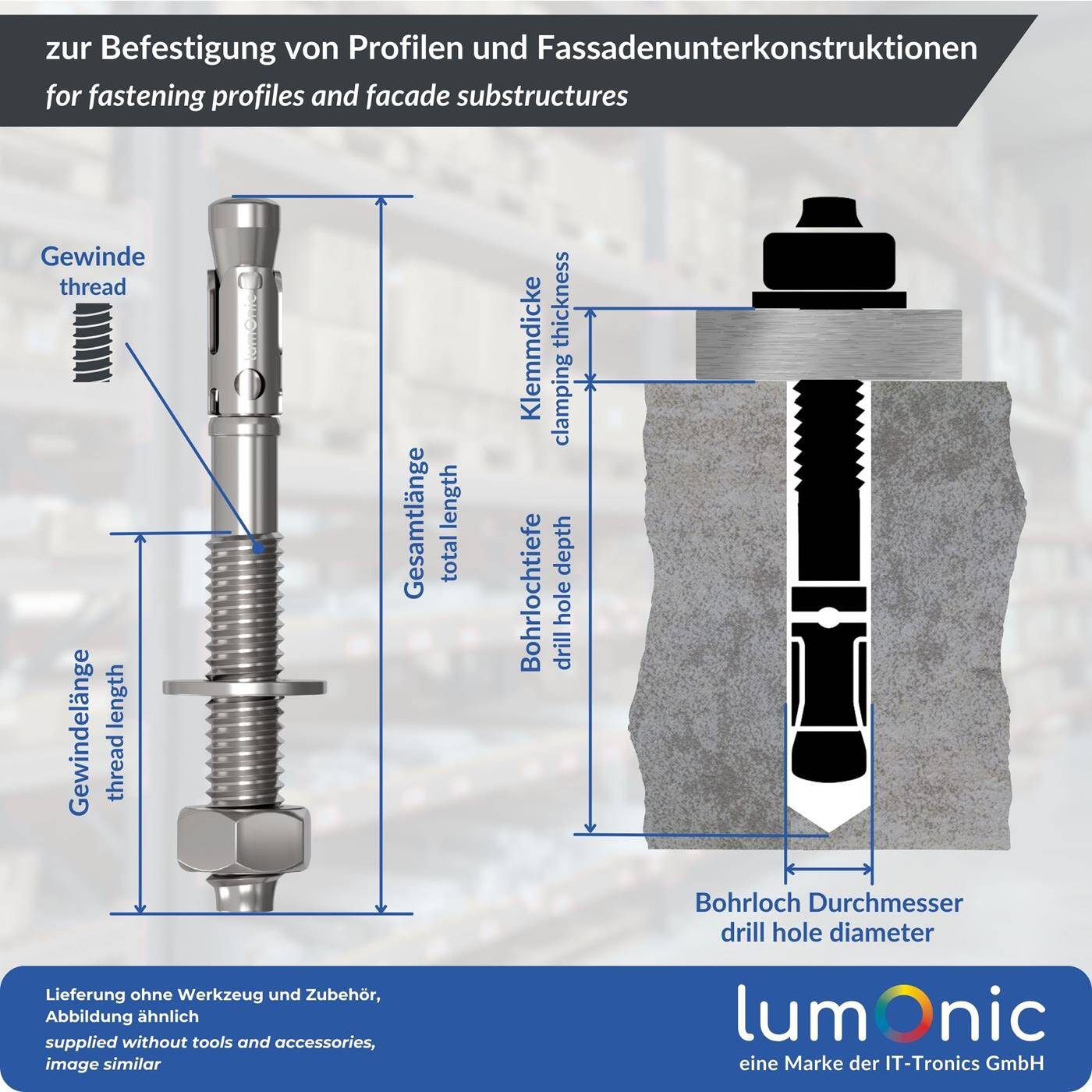

Technical specifications
| Product: | Metal dowels |
|---|---|

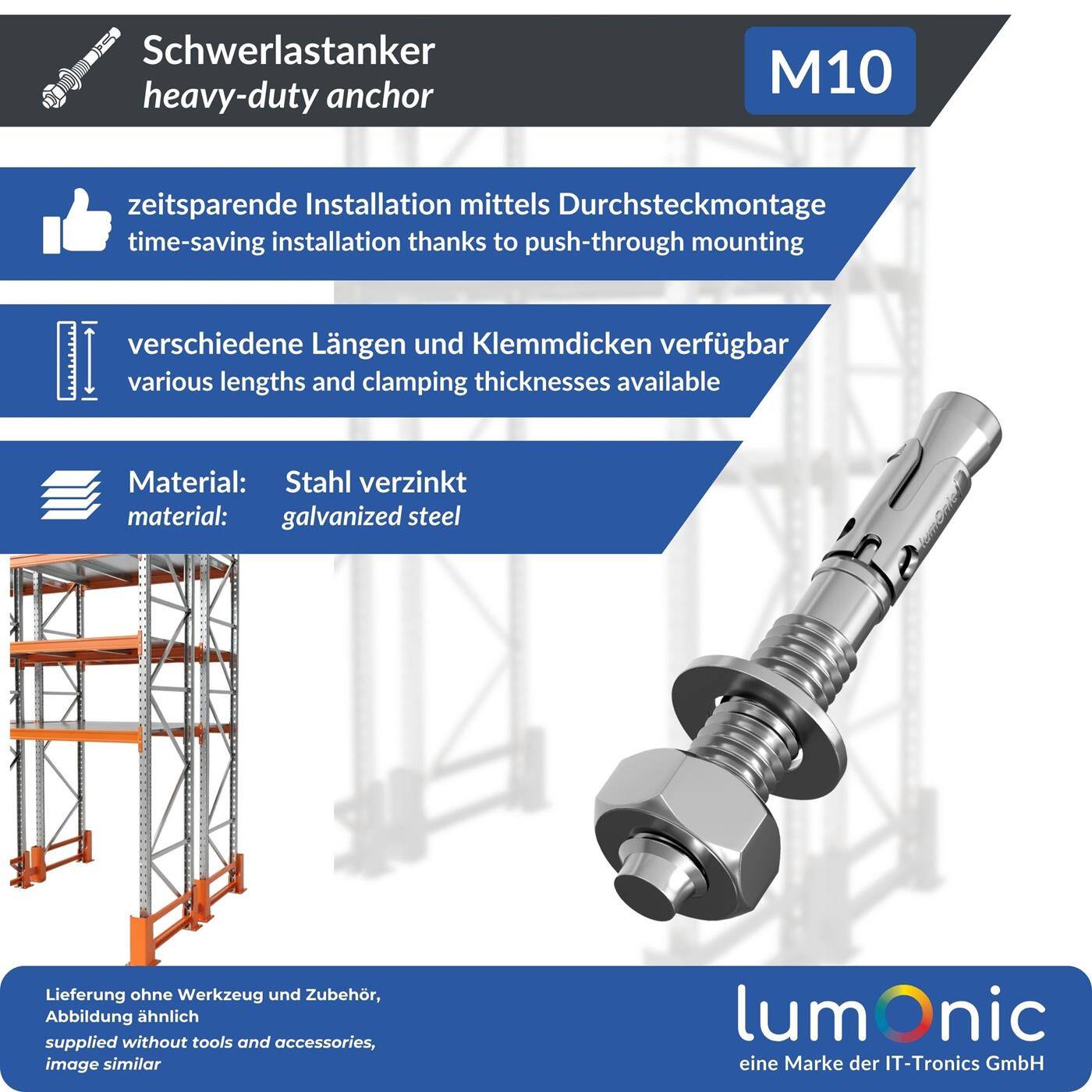

| Species: | Heavy duty anchor |
| Material / Quality: | Galvanised |
| Thread: | M10 |
| Total length: | 80mm |
| Thread length: | 40mm |
| Clamping thickness: | 10mm |
| Drill hole Diameter: | 10mm |
| Drill hole Length: | 70mm |
| Torque: | 30Nm |
