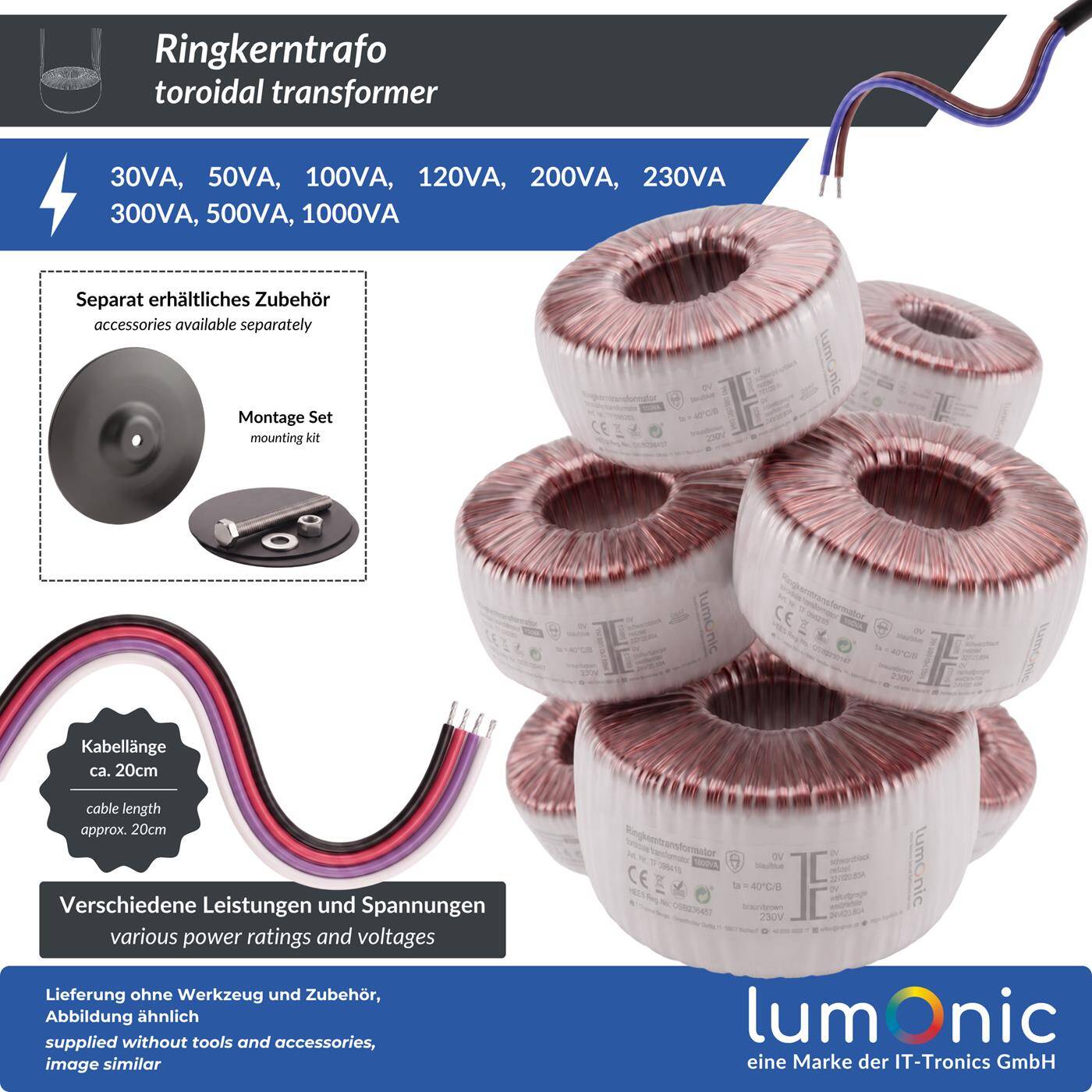

Lumonic Toroidal transformer 50VA | Primary 230V AC | Secondary 2x 18V AC or 1x 36V AC | Humming arm | Transformer for HiFi audio amplifiers

Quantity	Unit price
1 - 5	€25.00*
6 - 10	€24.50*
11 - 20	€24.00*
21 - 50	€23.75*
51 - 100	€23.50*
From 101	€23.25*

Prices incl. VAT plus shipping costs

Stk

aktueller
Bestand

Product description

✔ EFFICIENT: Low power loss and heat generation in continuous operation. Efficiency up to 87% at nominal load, no-load voltage approx. 20.8V (18V nominal voltage), no-load power consumption approx. 0.7W. Suitable for industrial and audio applications..

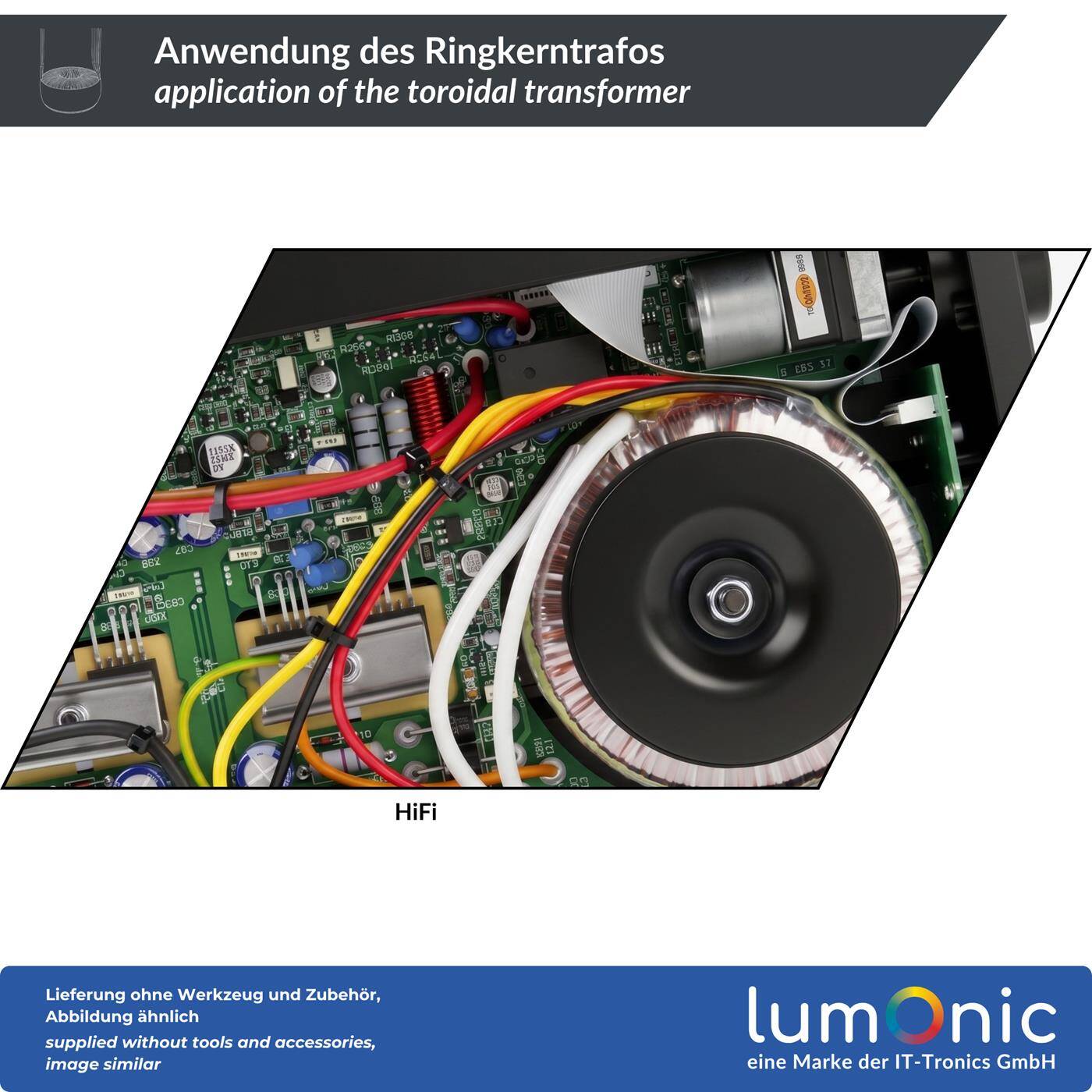

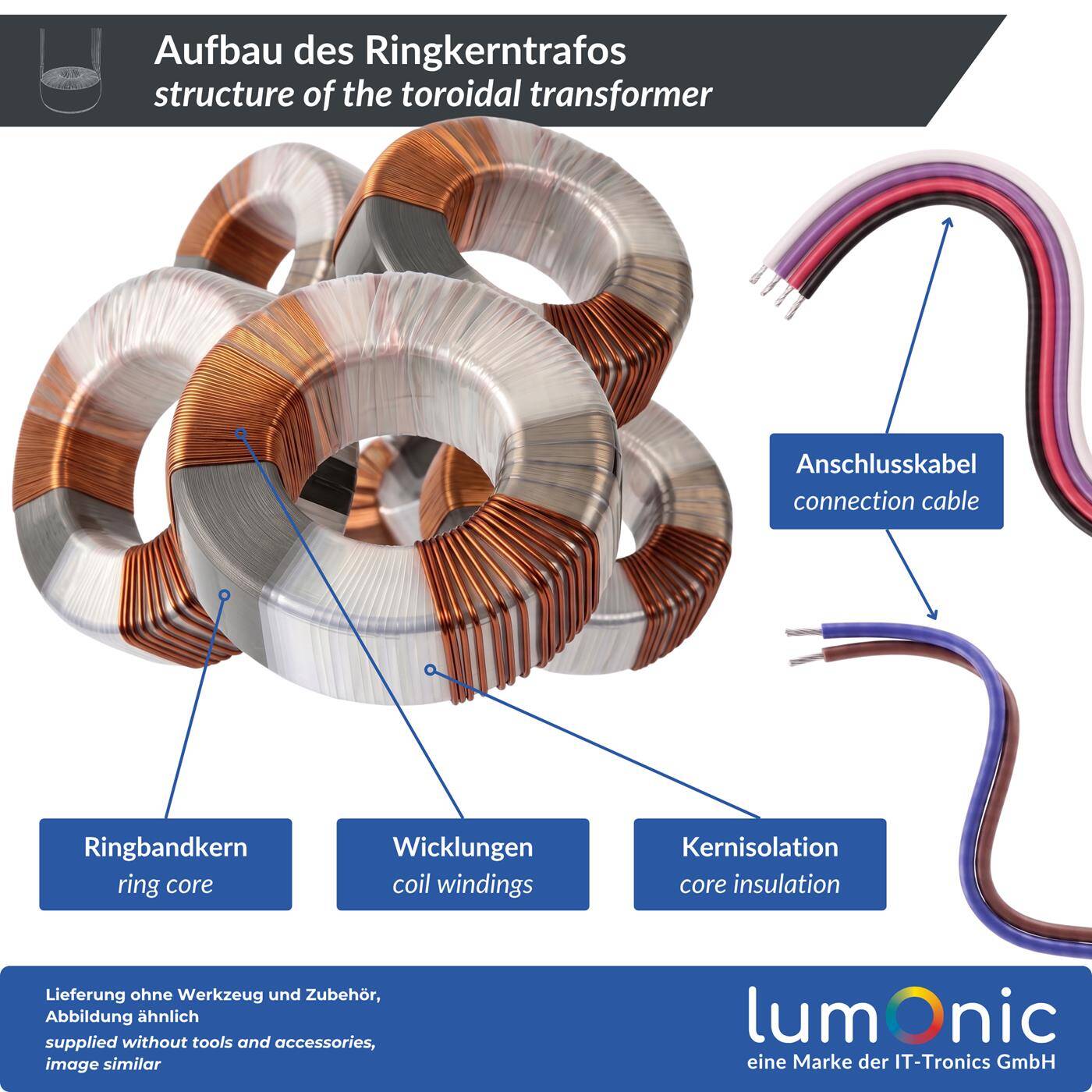

✔ LOW HUM & TROUBLE-FREE: The toroidal core technology minimizes electromagnetic radiation. No periodic humming that disturbs your hi-fi system. Ideally suited for audiophile DIY projects.

✔ SAFETY: Designed for rated operation with max. temperature rise of 52°C to ambient temperature and dielectric strength of 4kV AC.

✔ : Compatible with 230V AC networks (50/60Hz) on the primary side. Output voltage on the secondary side is 2x 18V AC or 1x 36V AC. Maximum power 50W.

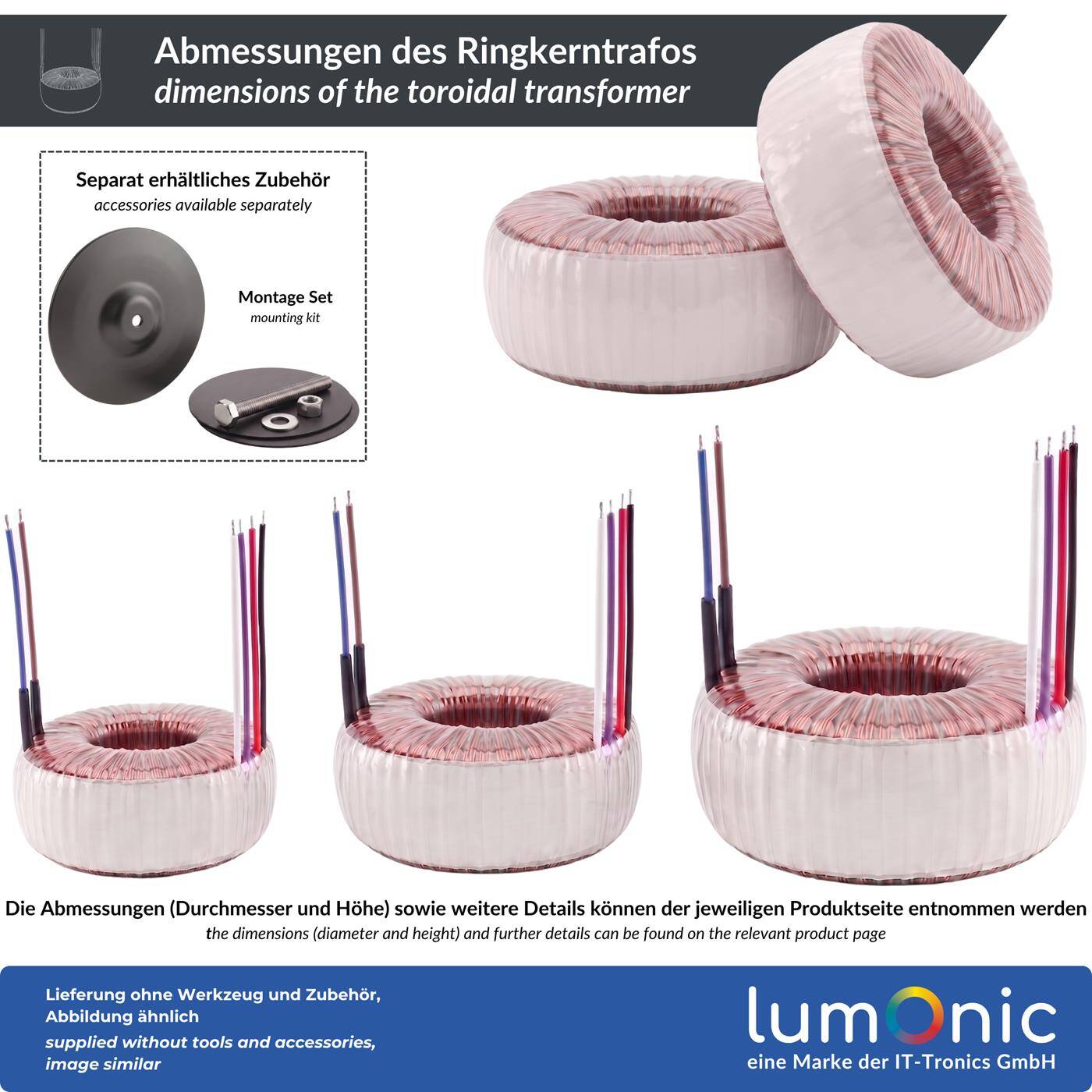

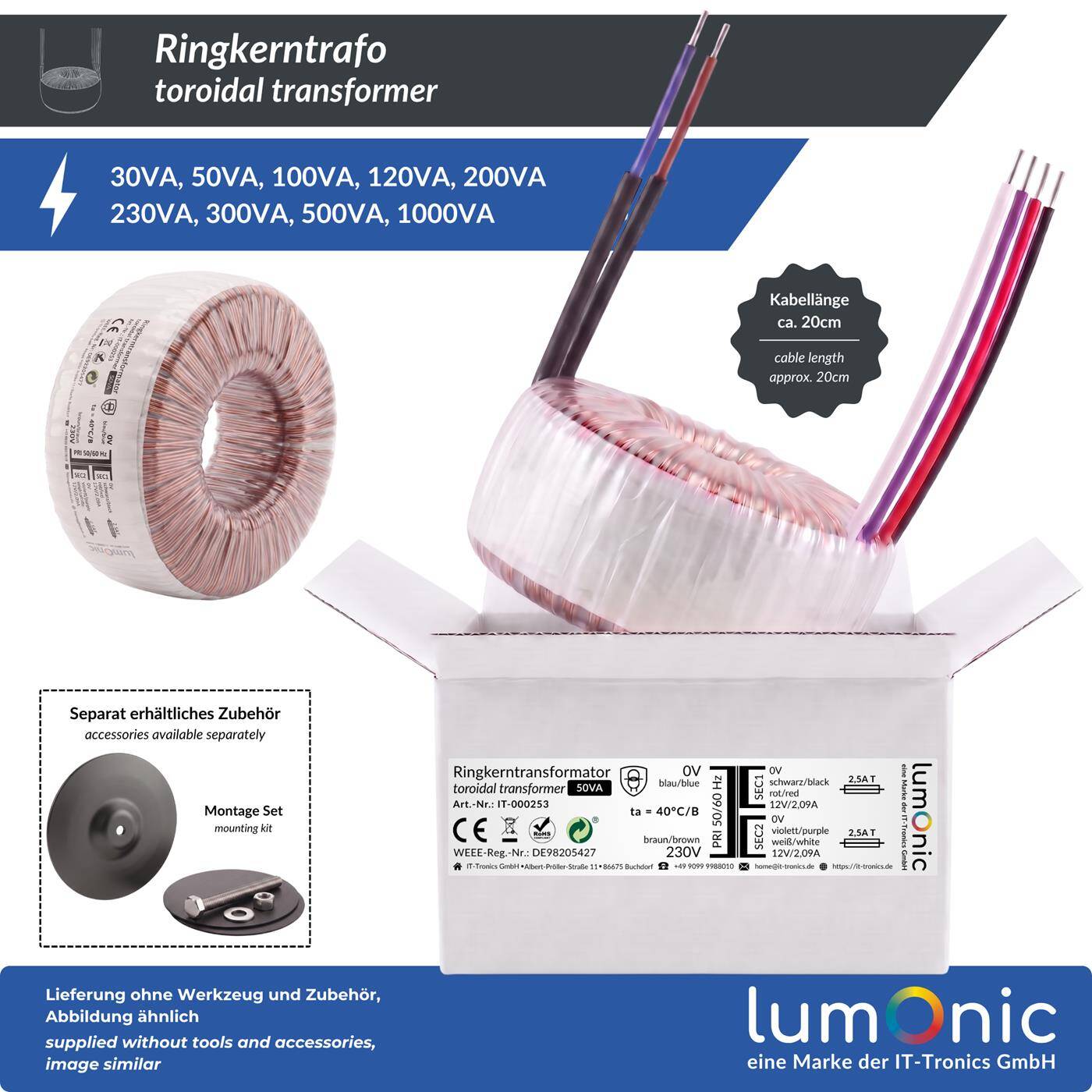

✔ SCOPE OF DELIVERY: 1x Lumonic toroidal transformer 50VA, dimensions 79mm Ø × 33mm height, connection cable 20cm each. Select the appropriate variant depending on the application and ambient conditions.

Technical specifications

Power:	50VA
Output voltage:	2x18V 36V
Output current:	2x1,39A
Input voltage:	230V
Frequency:	50/60Hz
Diameter:	80mm
Height:	33mm
Weight:	0,6kg
Open circuit voltage:	2x21,00V
No-load loss:	0,48VA
Max. Temperature:	40°C
Connection Entrance:	Strands, 200mm
Connection Entrance:	Solid wires, 200mm
Dielectric strength PRI-SEK:	4400V / 4,4kV
Temperature class:	B (130°C)
Transformer grouted:	No
Efficiency:	82%
