Lumonic Toroidal transformer 30VA | Primary 230V AC | Secondary 2x 24V AC or 1x 48V AC | Humming arm

Quantity	Unit price
1 - 5	€21.00*
6 - 10	€20.58*
11 - 20	€20.16*
21 - 50	€19.95*
51 - 100	€19.74*
From 101	€19.53*

Quantity

Unit price

1 - 5

€21.00*

6 - 10

€20.58*

11 - 20

€20.16*

21 - 50

€19.95*

51 - 100

€19.74*

From 101

€19.53*

Product description

✔ EFFICIENT: Low power loss and heat generation in continuous operation. Efficiency up to 86% at nominal load, no-load voltage approx. 28.3V (24V nominal voltage), no-load power consumption approx. 0.6W. Suitable for industrial and audio applications..

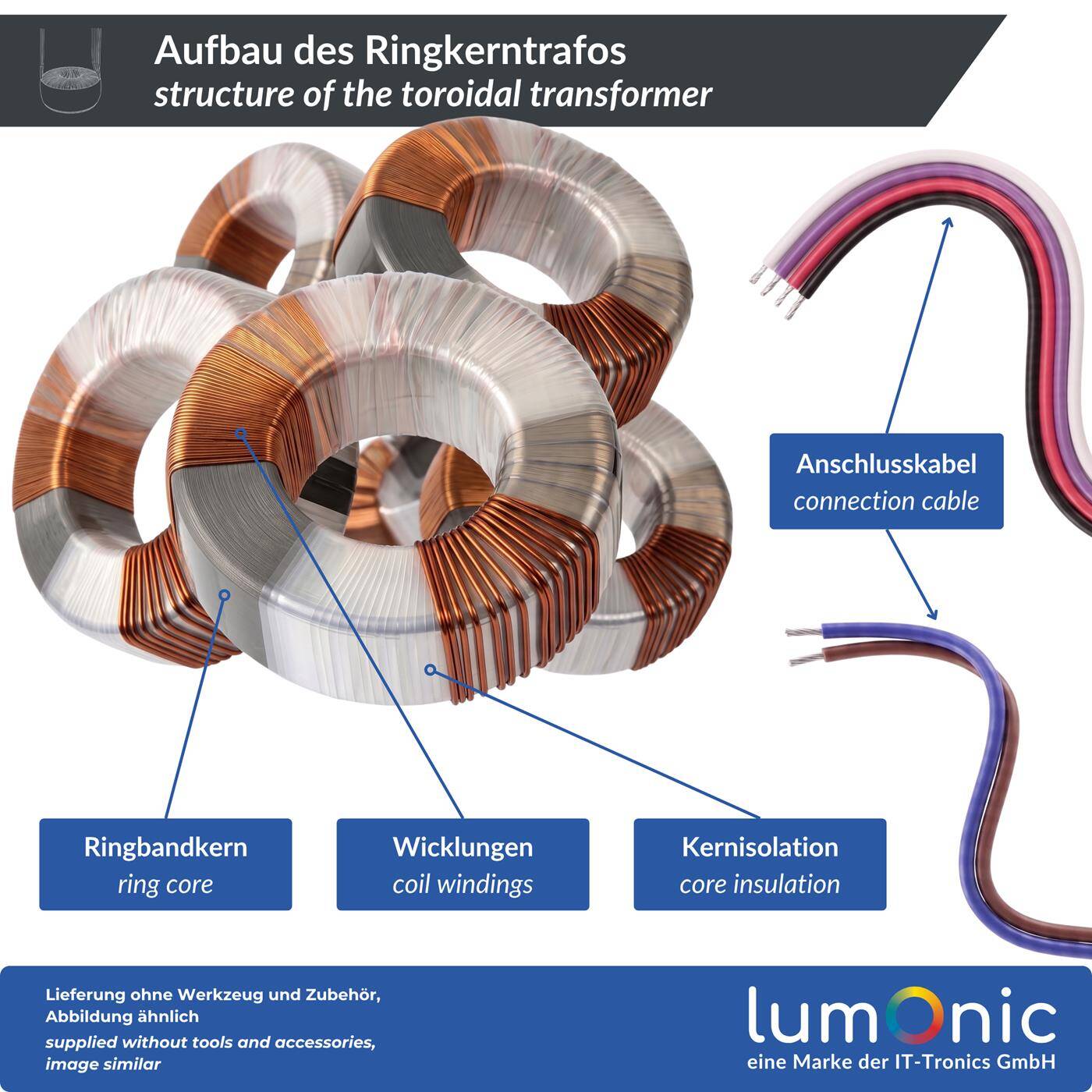

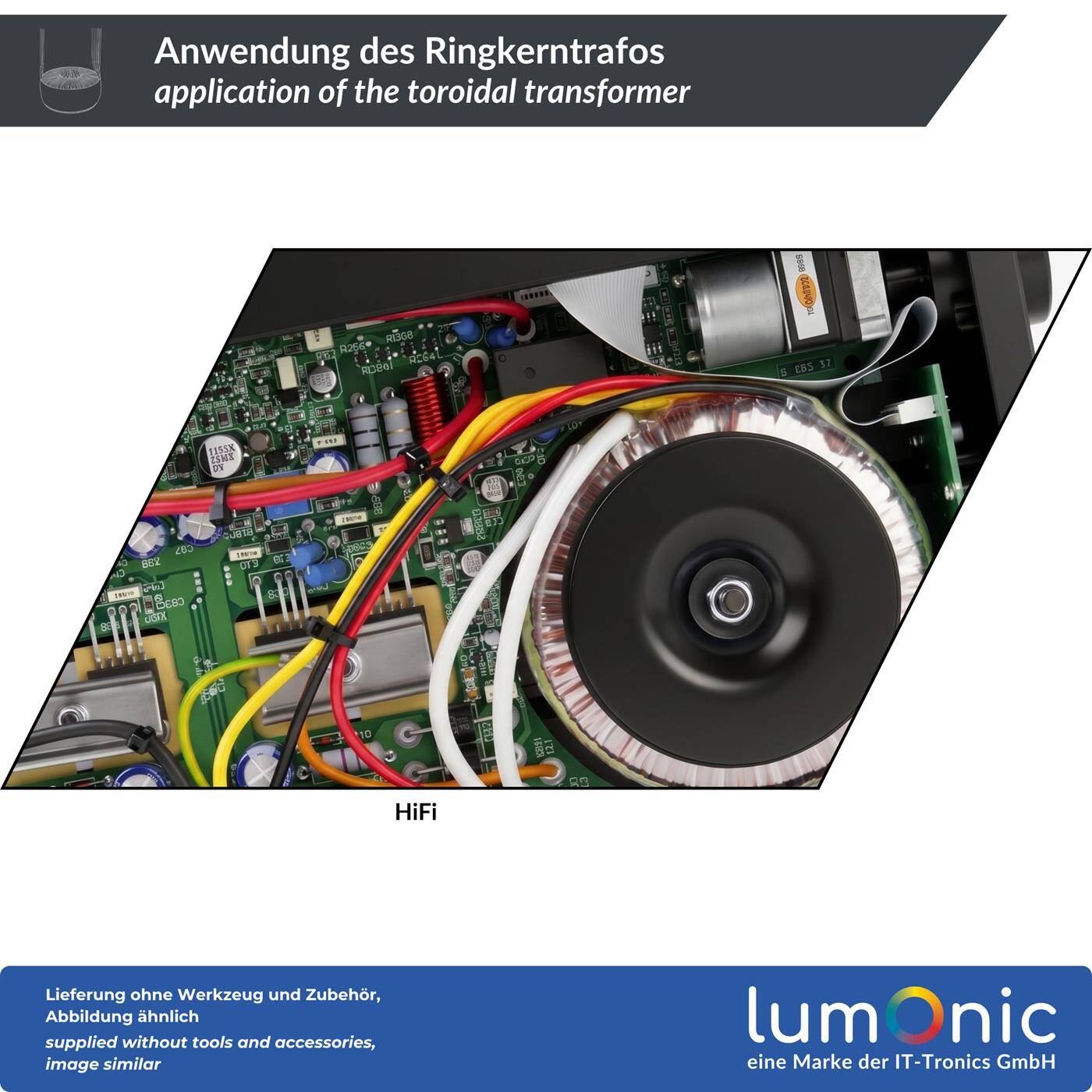

✔ LOW HUM & TROUBLE-FREE: The toroidal core technology minimizes electromagnetic radiation. No periodic humming that disturbs your hi-fi system. Ideally suited for audiophile DIY projects.

✔ SAFETY: Designed for rated operation with max. temperature increase of 46°C to ambient temperature and dielectric strength of 4kV AC.

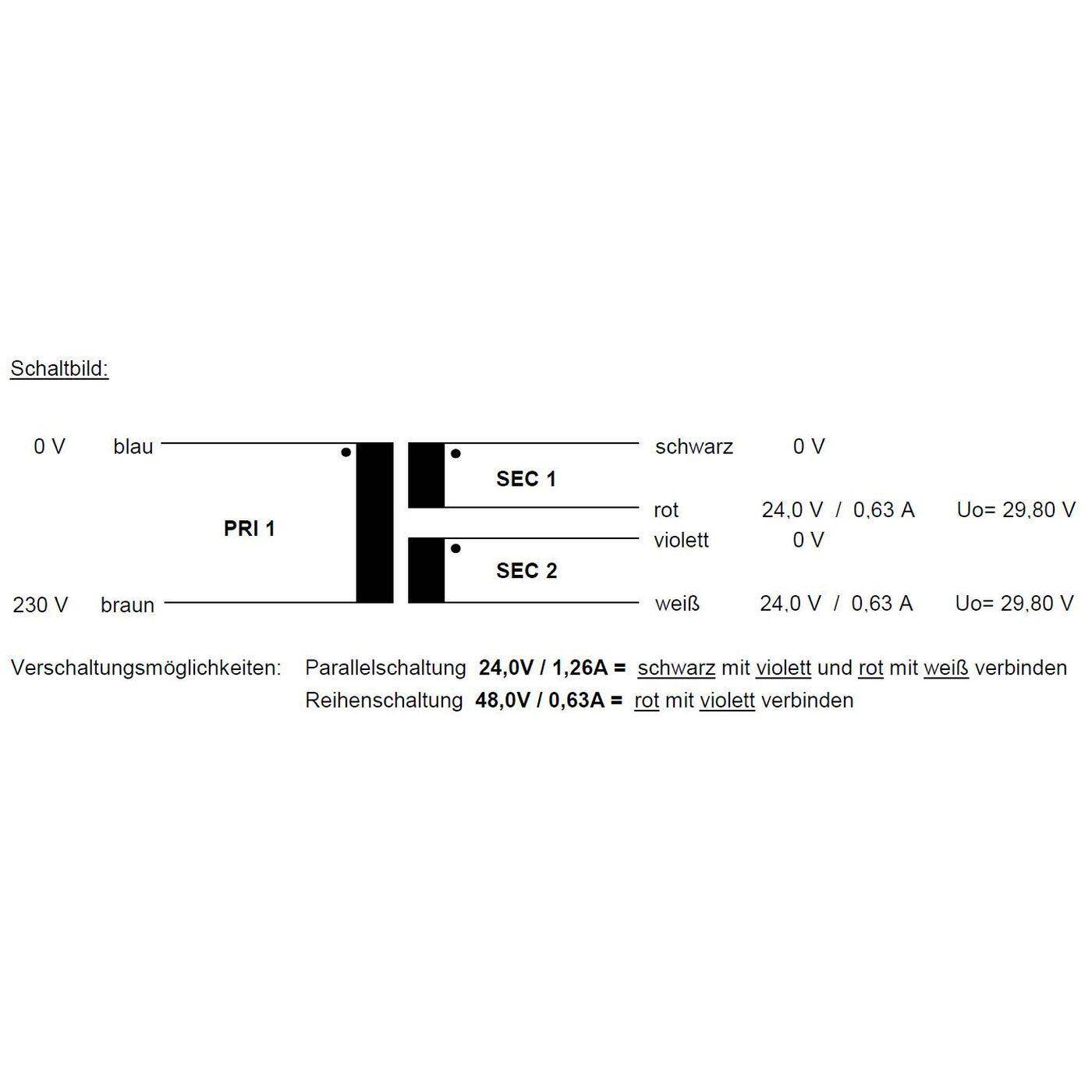

✔ : Compatible with 230V AC networks (50/60Hz) on the primary side. Output voltage on the secondary side is 2x 24V AC or 1x 48V AC. Maximum power 30W.

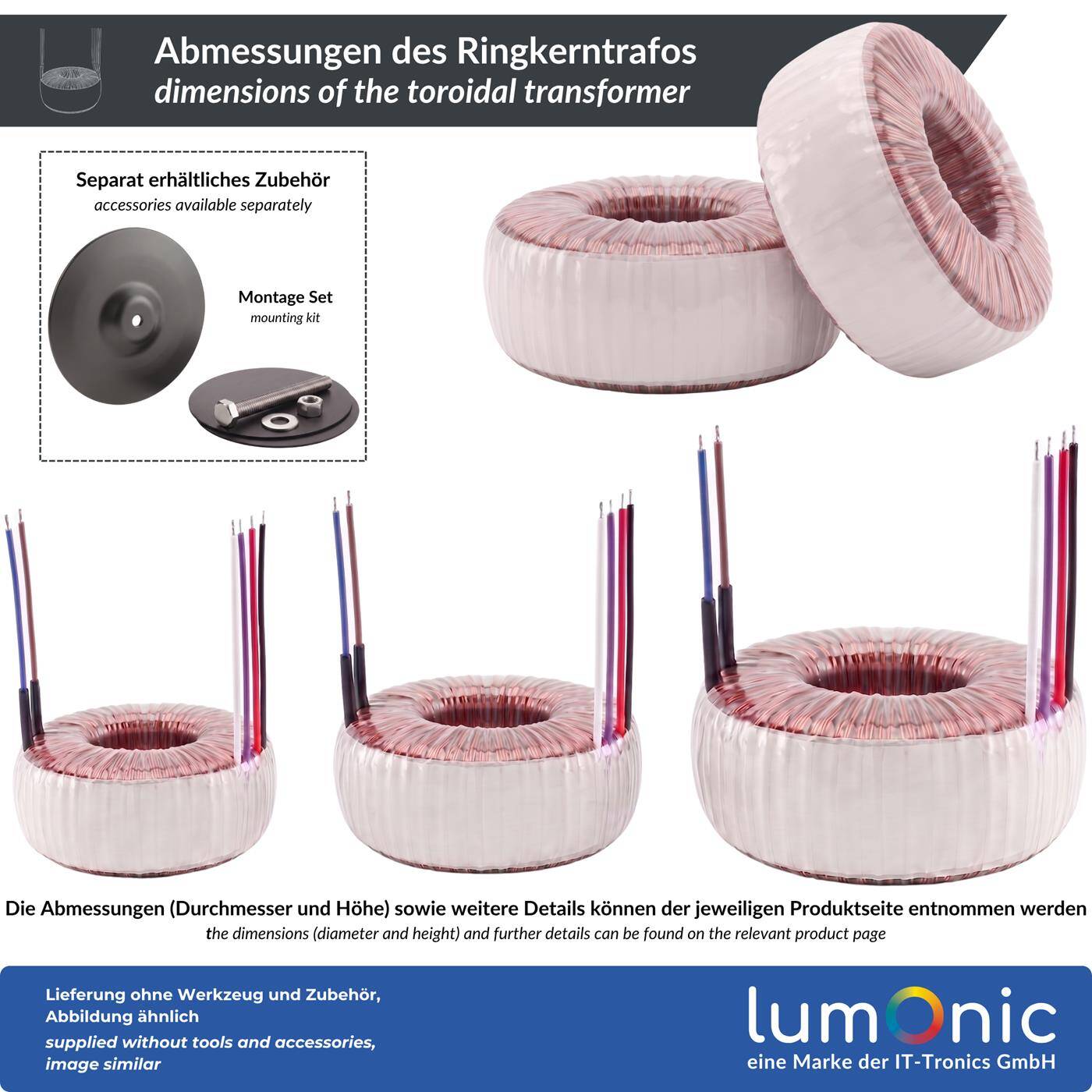

✔ SCOPE OF DELIVERY: 1x Lumonic toroidal transformer 30VA, dimensions 69mm Ø × 33mm height, connection cable 20cm each. Select the appropriate variant depending on the application and ambient conditions.

Technical specifications

Power:	30VA
Output voltage:	2x24V 48V
Output current:	2x0,63A
Input voltage:	230V
Frequency:	50/60Hz
Diameter:	70mm
Height:	33mm
Weight:	0,4kg
Open circuit voltage:	2x29,80V
No-load loss:	0,36VA
Max. Temperature:	40°C
Connection Entrance:	Strands, 200mm
Connection Entrance:	Solid wires, 200mm
Dielectric strength PRI-SEK:	4400V / 4,4kV
Temperature class:	B (130°C)
Transformer grouted:	No
Efficiency:	77%

Lumonic Toroidal transformer 30VA | Primary 230V AC | Secondary 2x 24V AC or 1x 48V AC | Humming arm | Transformer for HiFi audio amplifiers
