Lumonic Thermal switch 115°C NO contact 250V 5A Cable Temperature switch thermostat HKW9700 Bimetal Thermal protection
Available, delivery time: 1-3 days
Article-No.:
IT-008289
Shipping weight:
0.003 kg
Shipping Zone:
10
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 20 |
€1.30*
|
| 21 - 50 |
€1.27*
|
| 51 - 100 |
€1.25*
|
| 101 - 200 |
€1.22*
|
| 201 - 500 |
€1.20*
|
| From 501 |
€1.17*
|
Product description
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Erfüllt: RoHS, SAE-AMS-DTL-23053/4 |
| ✔ {Min. Temperatur zur vollständigen Schrumpfung}: +110°C |
| ✔ UV resistant |
Technical specifications
| Type: | Temperature switch HKW9700 |
|---|---|
| Switching contact: | NO contact |
| Switching temperature: | 115°C |
| Switching temperature Tolerance: | ± 5°C |
| Reset temperature: | 80°C |
| Reset temperature Tolerance: | ± 15°C |
| Maximum load capacity AC: | 250V 5A |
| Maximum load capacity DC: | 24V 8A |
| Contact resistance: | 50mOhm |
| Material Casing: | Plastic |
| Dimensions Casing: | 21x8x4mm |
| Connection: | Cable 70mm |
Ihr Produktverlauf
10x Superbright LEDs SMD 0603 pink with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.34* / Stück)
incl. VAT
plus shipping costs

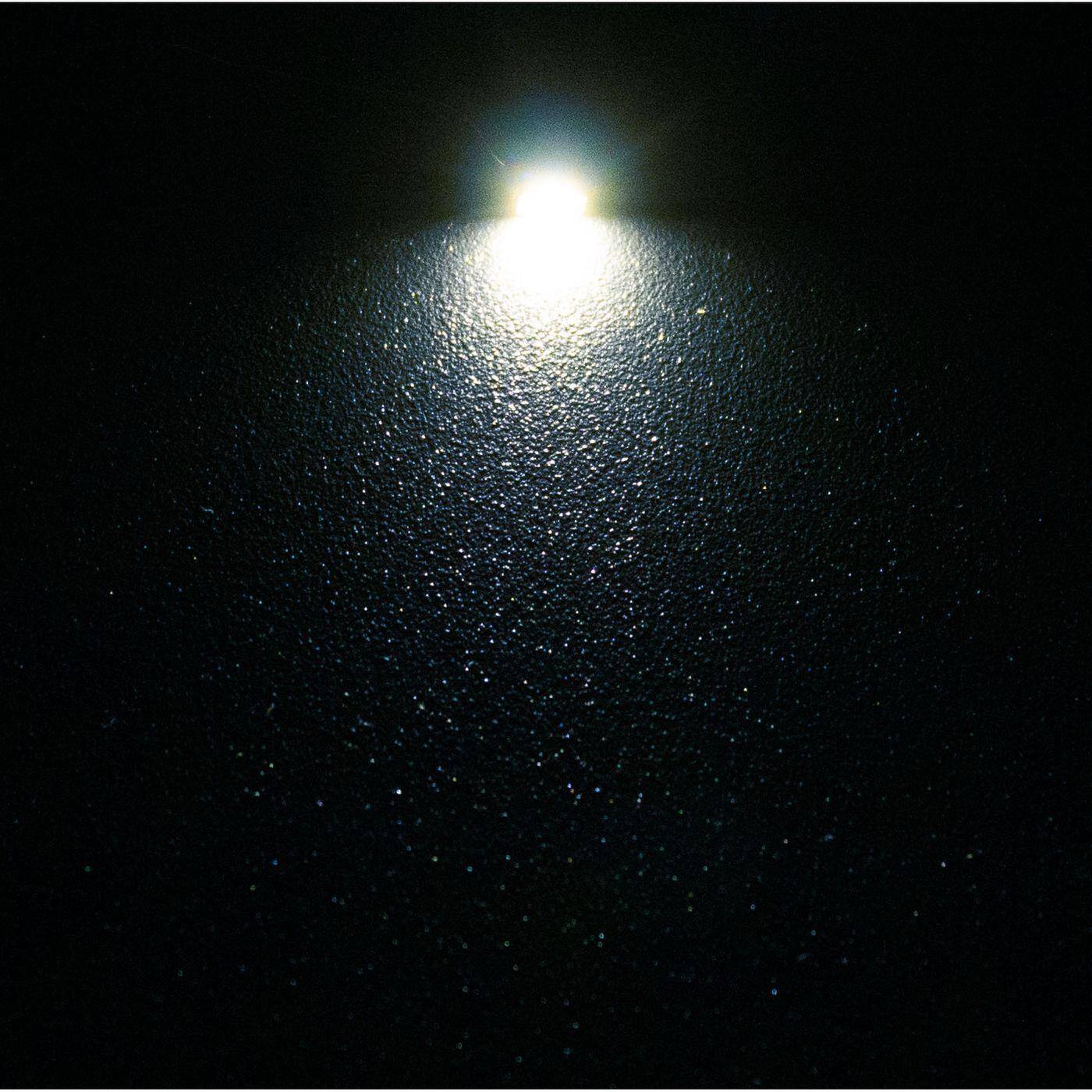

10x Superbright LEDs SMD 1206 Cold White with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.35* / Stück)
incl. VAT
plus shipping costs

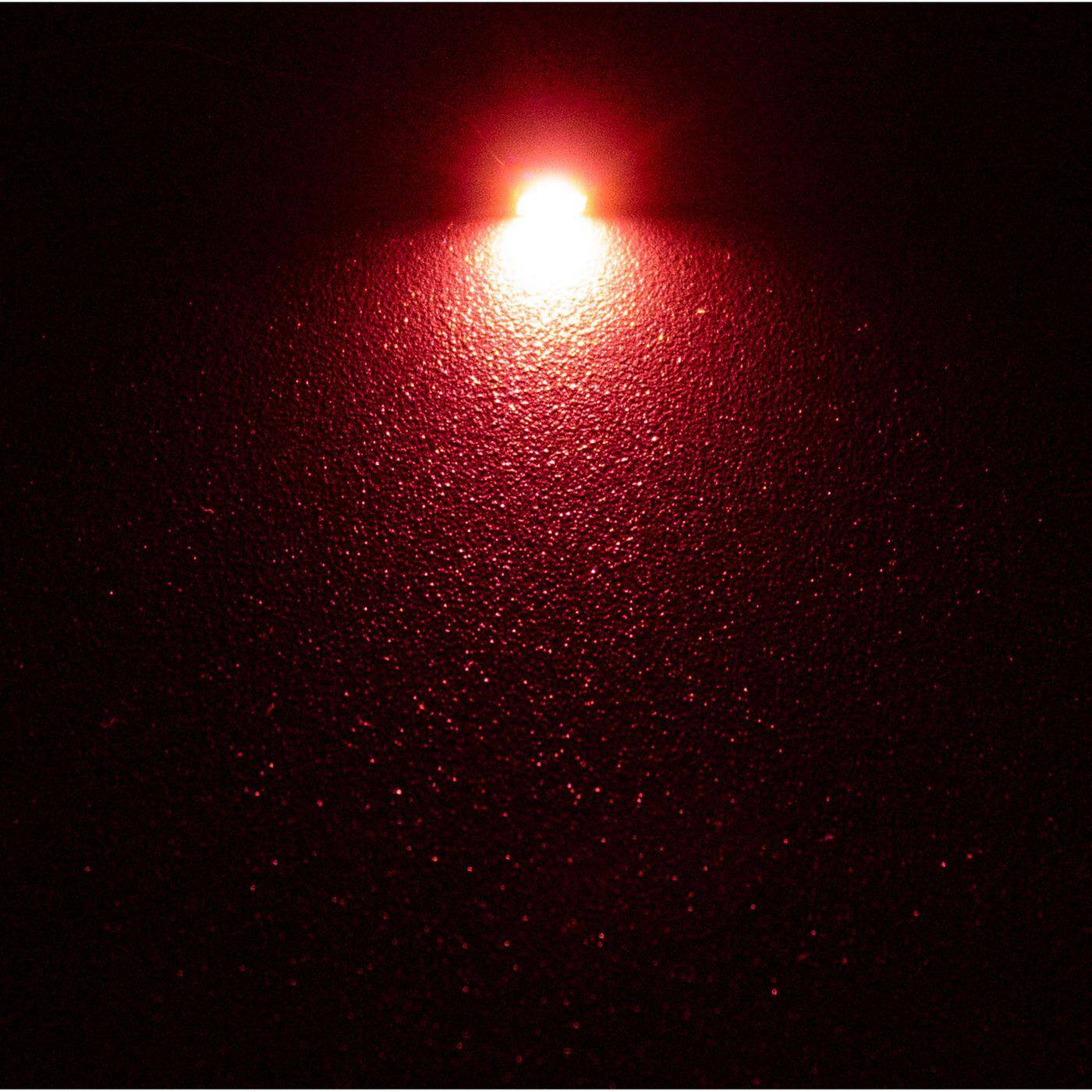

10x Superbright LEDs SMD 0603 Red with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.33* / Stück)
incl. VAT
plus shipping costs
10x Superbright LEDs SMD 1206 Red with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.35* / Stück)
incl. VAT
plus shipping costs

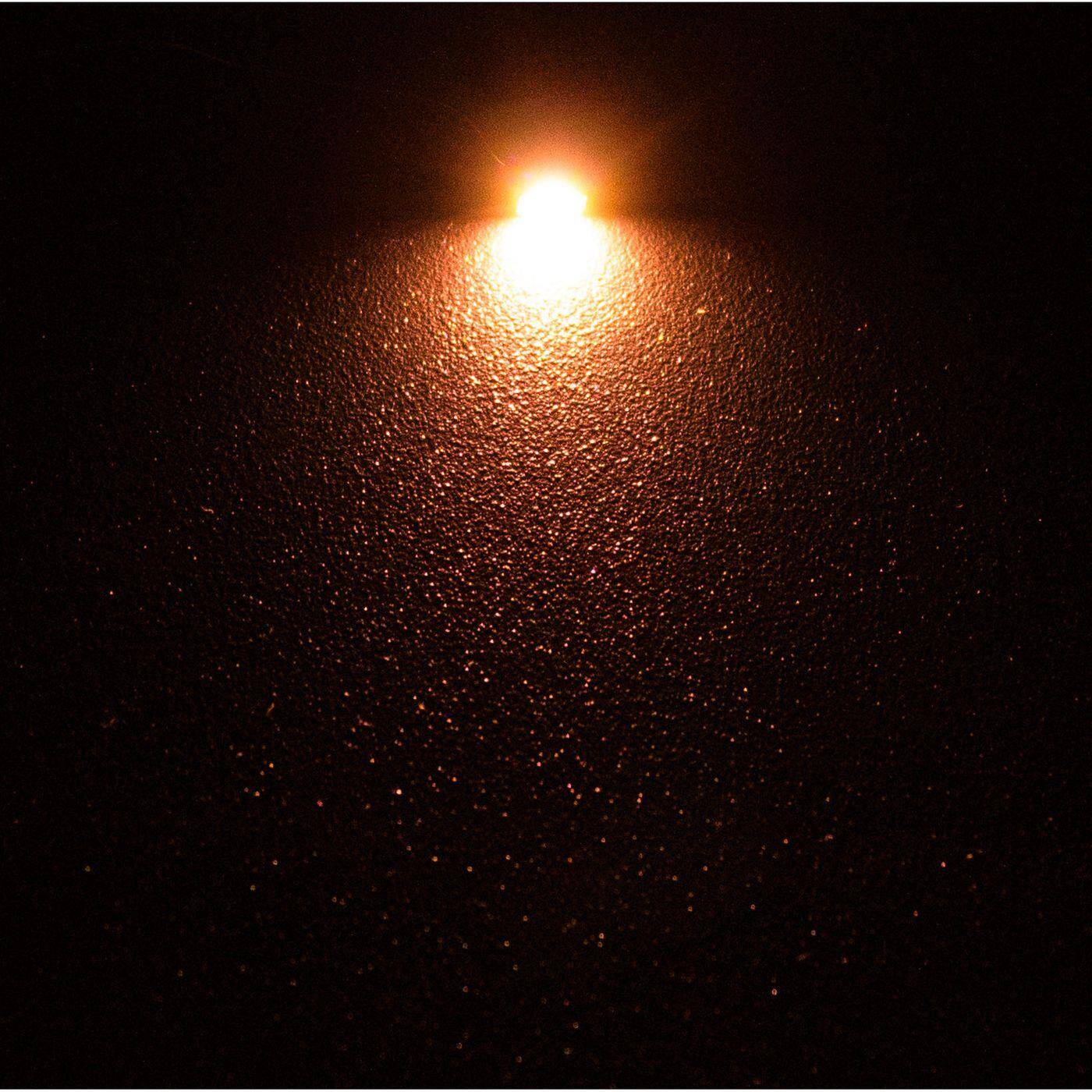

10x Superbright LEDs SMD 0603 Orange with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.35* / Stück)
incl. VAT
plus shipping costs

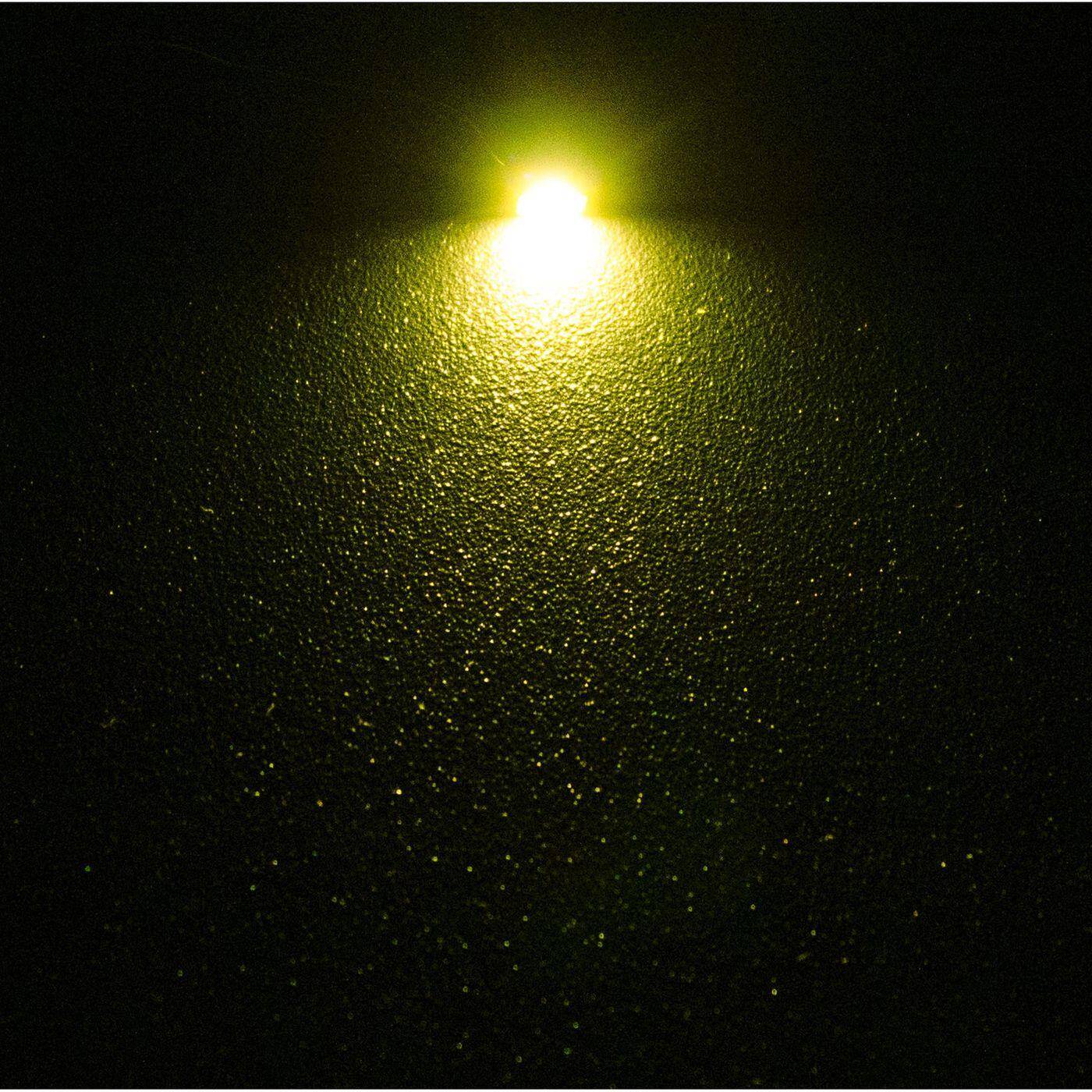

10x Superbright LEDs SMD 0805 Yellow with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.35* / Stück)
incl. VAT
plus shipping costs
10x Superbright LEDs SMD 0805 Blue with Enamelled copper wire 20cm + 12V Series resistor
€3.50*
(€0.35* / Stück)
incl. VAT
plus shipping costs

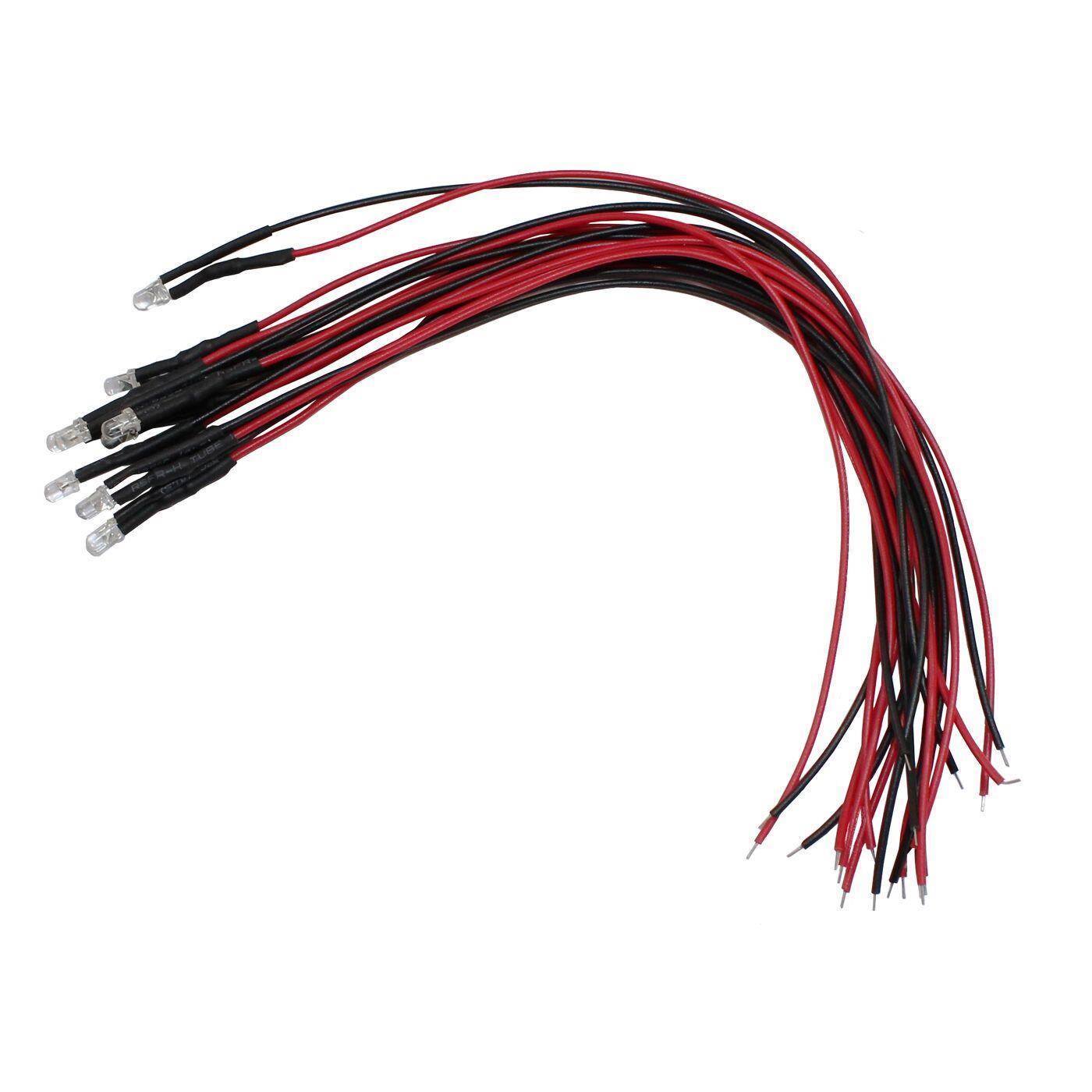

5x Superbright LEDs 3mm Yellow for 5V 20cm Cable 2000…2500mcd 30°
€2.00*
(€0.37* / Stück)
incl. VAT
plus shipping costs

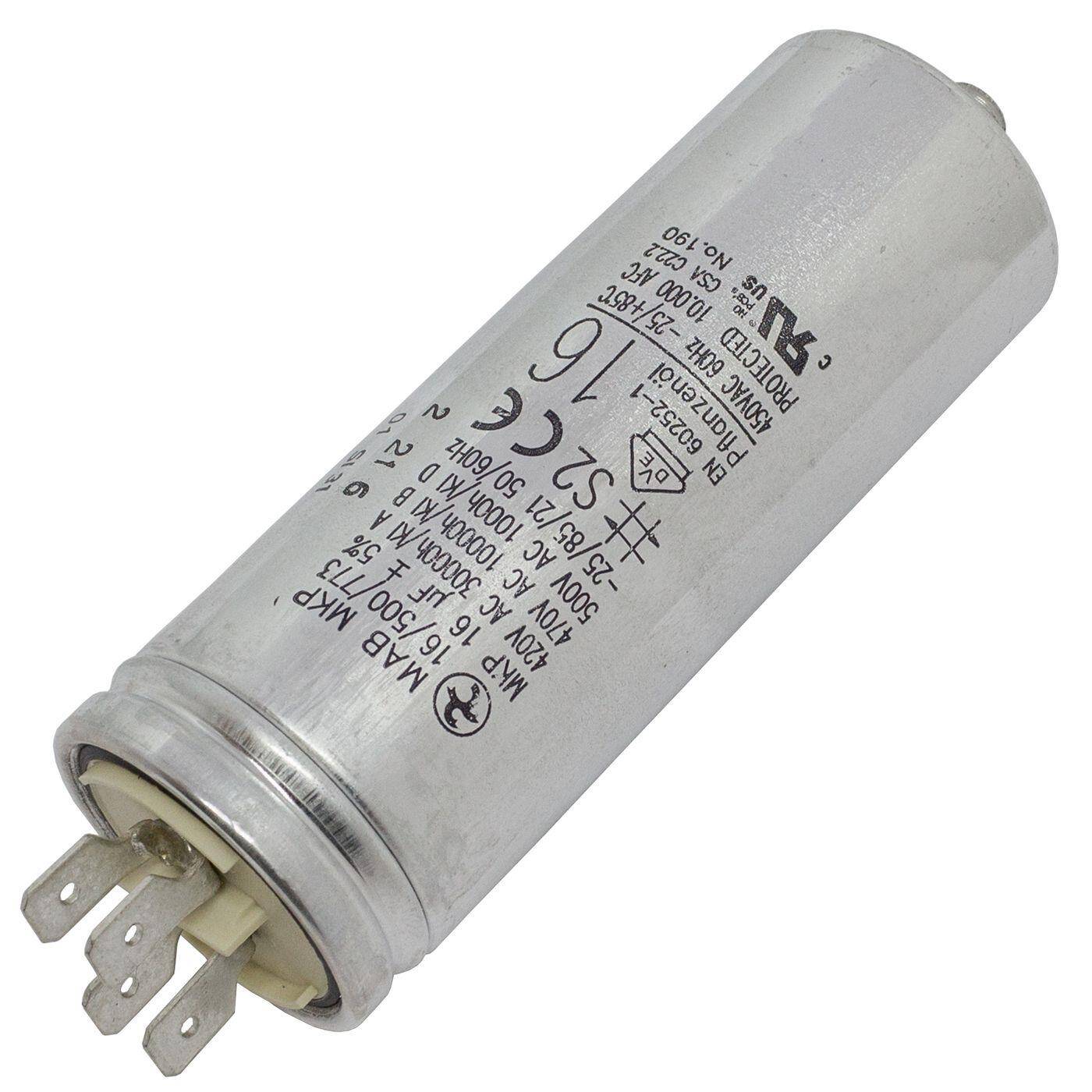

Starting capacitor Motor capacitor 16µF 420V 35x98mm Plug 6,3x0,8mm Hydra MKP-500 16-A 16uF
€7.50*
incl. VAT
plus shipping costs
50x Superbright LEDs SMD 0805 Cold White 6000K 20mA 2,9V 150…300mcd 120° 2x1,25mm
€3.60*
(€0.07* / Stück)
incl. VAT
plus shipping costs

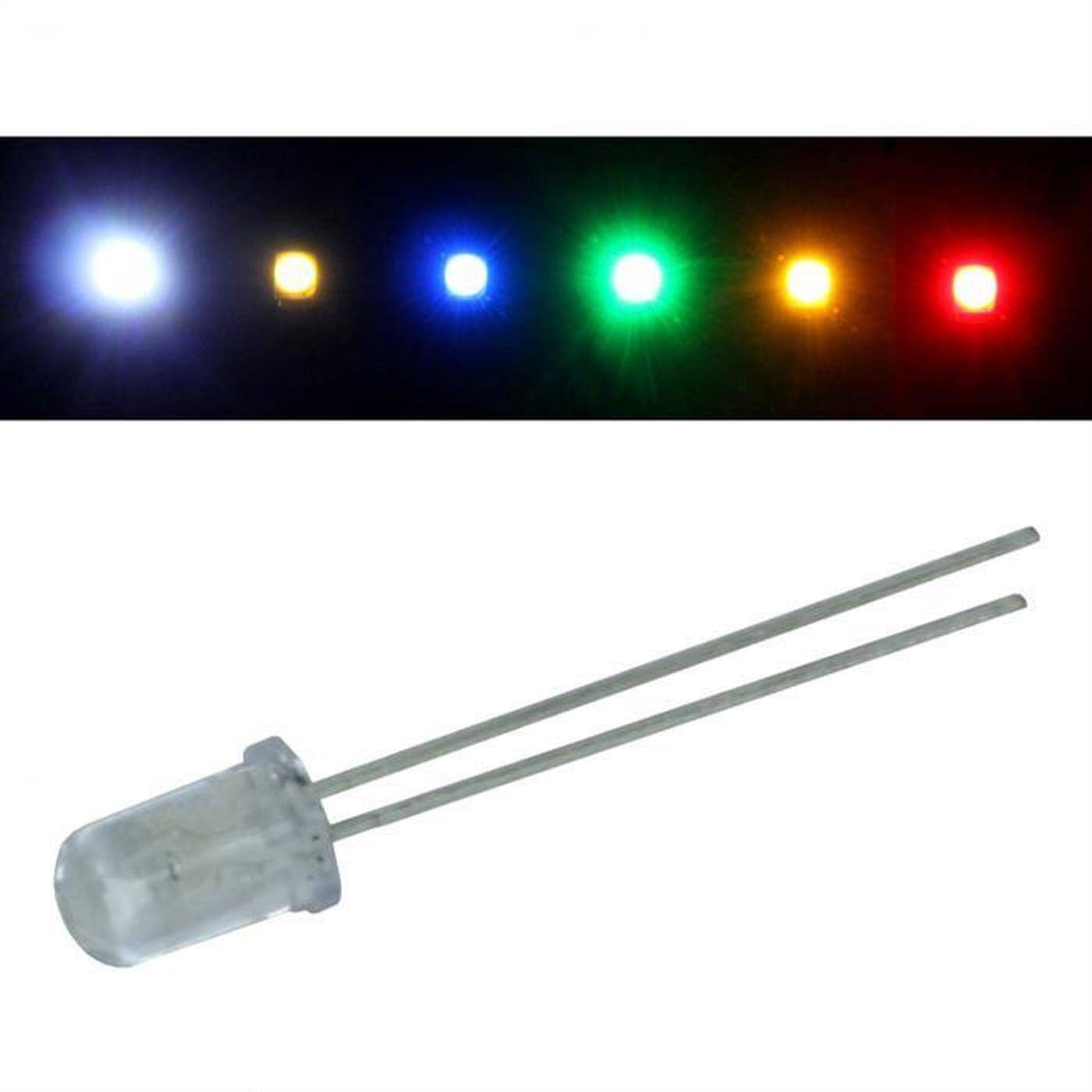

20x Superbright LEDs 5mm Yellow 20mA 2,1V 3000…5000mcd 45° Conventional LED
