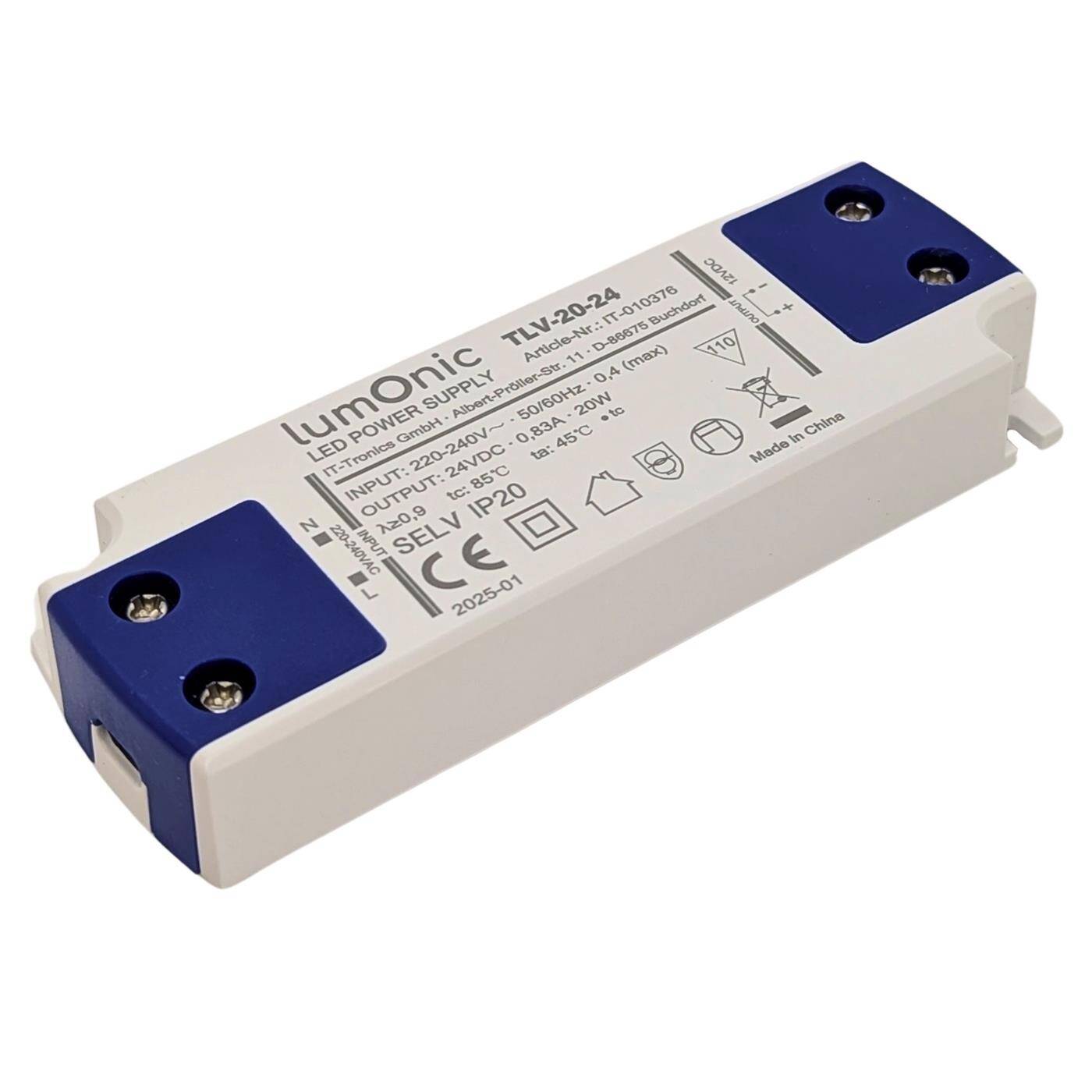

Lumonic I LED transformer TLV-20-24 I 24V 20W I Input 220-240VAC I flicker-free I Overload protection I LED power supply unit I for LED lighting

Available, delivery time: 1-3 days

Article-No.: IT-010376

Model: TLV-20-24

Shipping weight: 0.09 kg

Shipping Zone: 30

ROHS: Ja

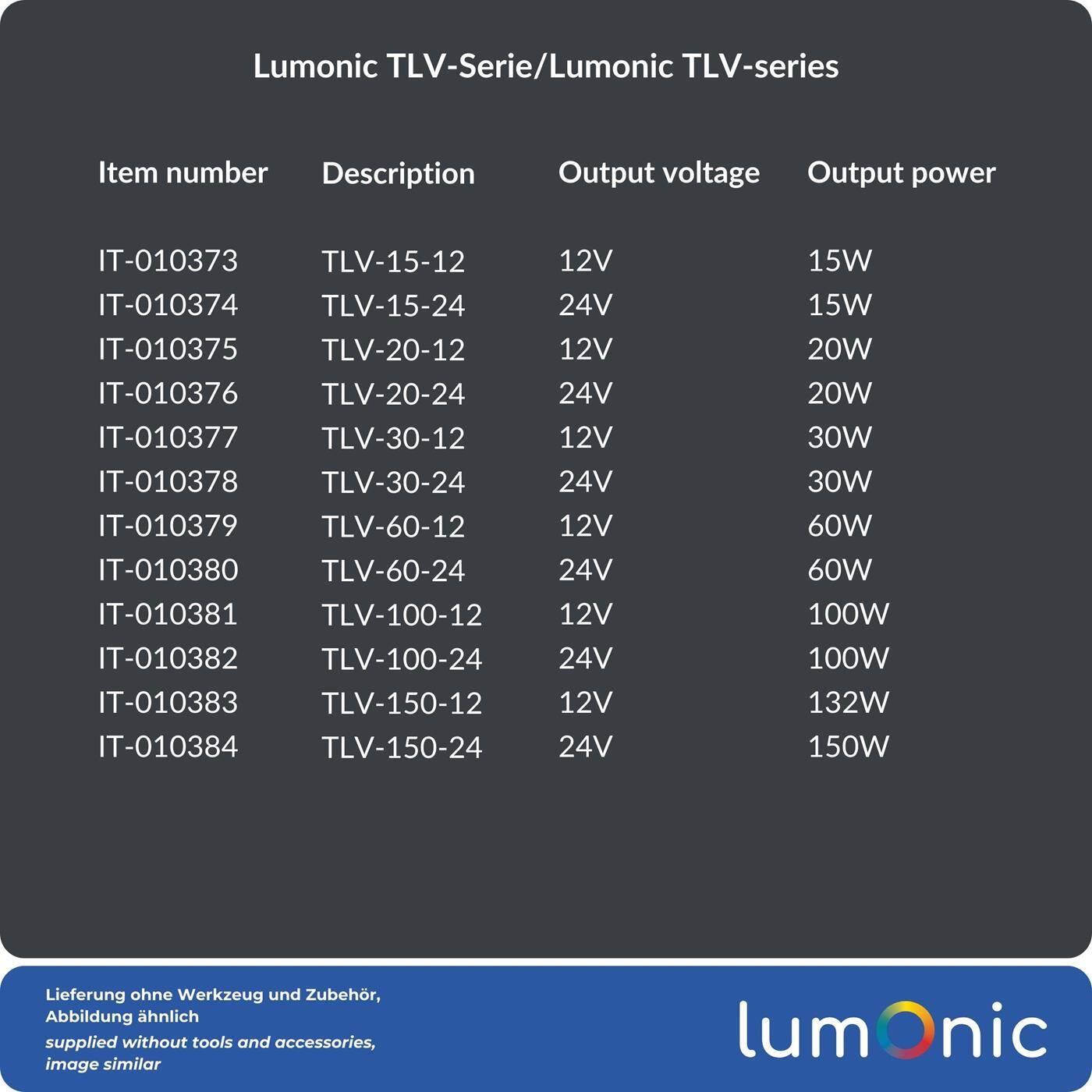

Netzteil-Serie

TLV-15

TLV-20

TLV-30

TLV-60

TLV-100

TLV-150

Ausgangsspannung

12V

24V

Quantity	Unit price
1 - 10	€5.50
11 - 20	€5.39
21 - 50	€5.28
51 - 100	€5.23
101 - 200	€5.17
From 201	€5.12

Content: 1 Stück

Stk

detail.currentStock

Product description

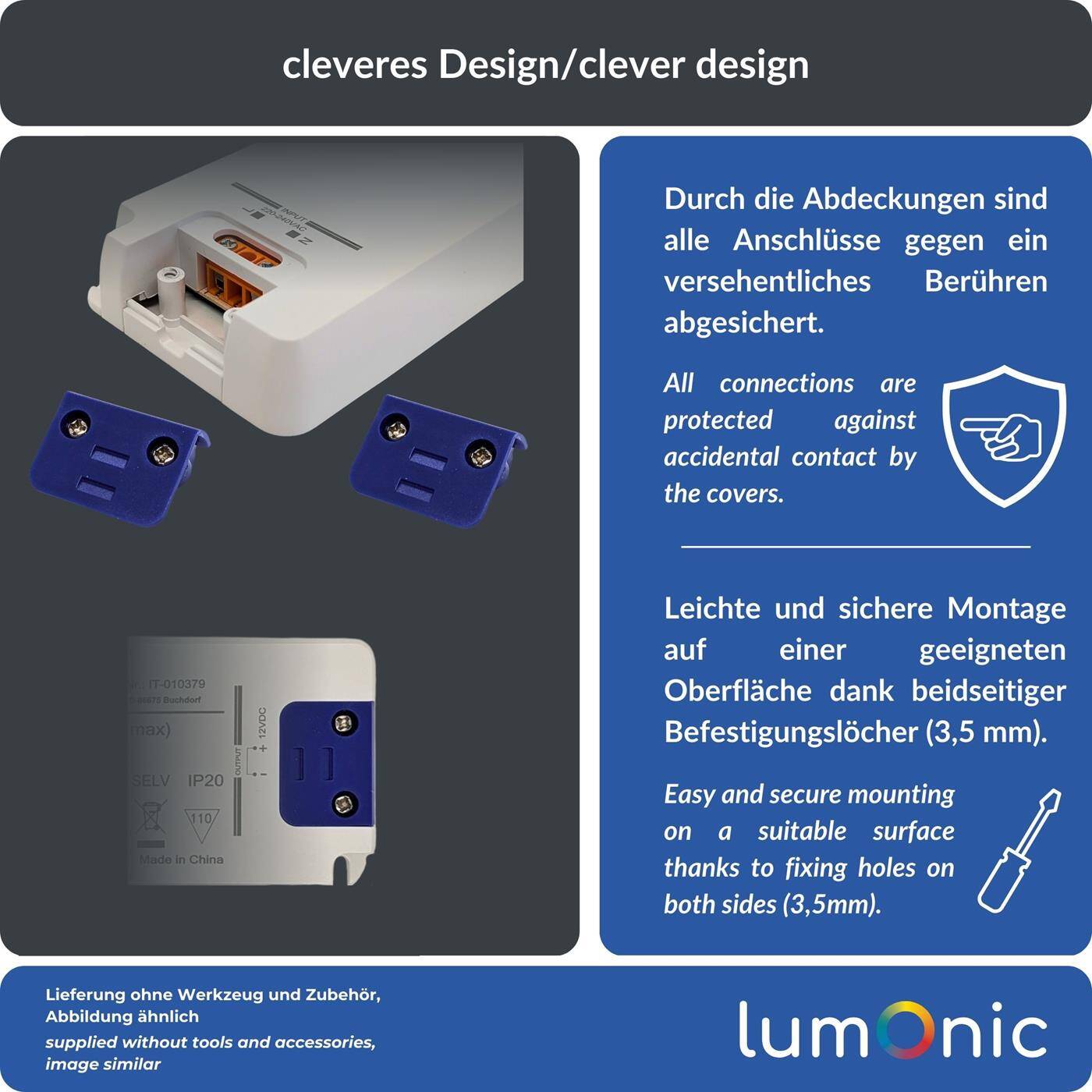

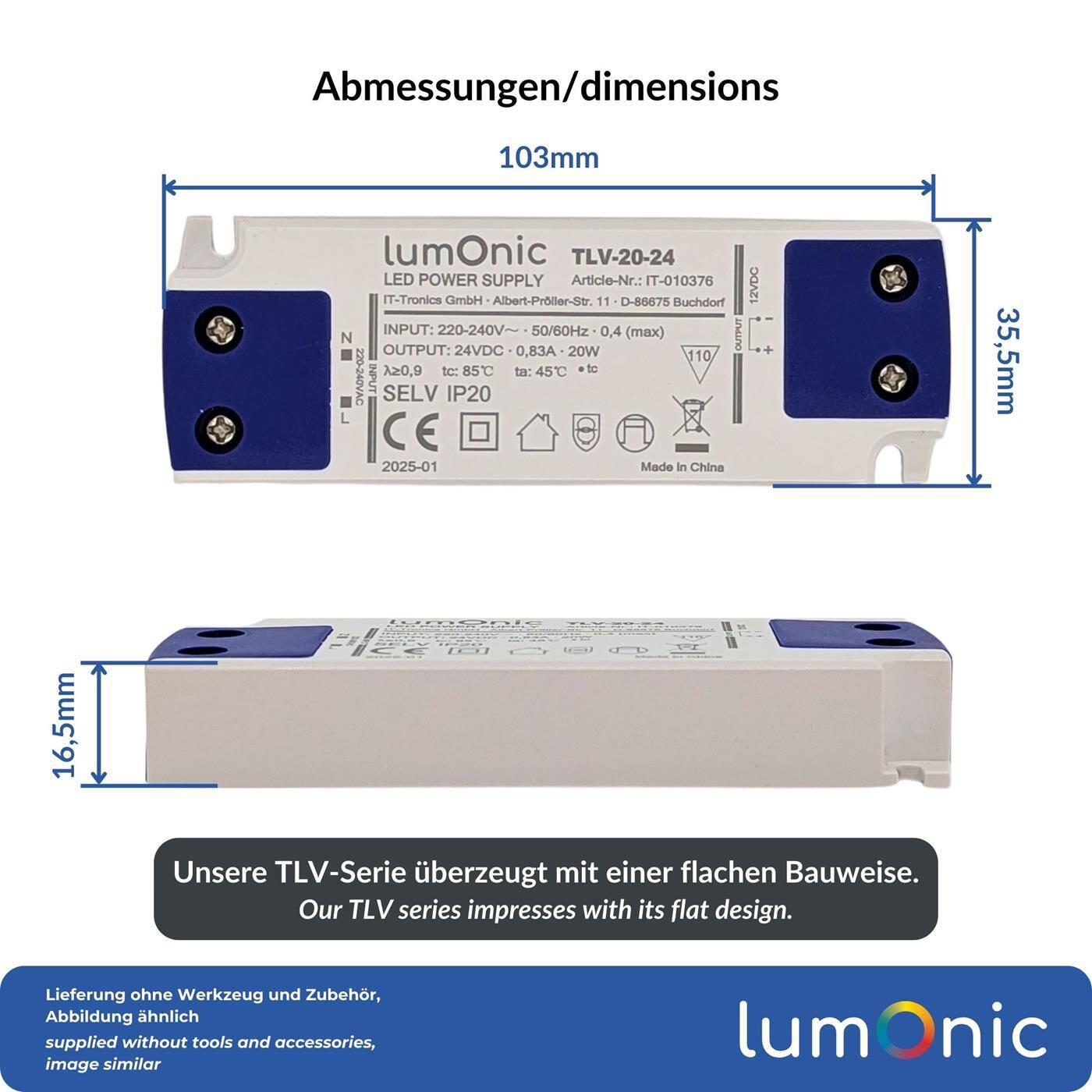

✔ ultra-thin design: Our TLV series LED transformer is characterized by a flat design and compact dimensions of 103x35.5x16.5mm. It is mounted on a suitable surface using practical mounting holes, while the electrical connection is established via screw terminals. These are protected against contact by a cover.

✔ RELIABLE PERFORMANCE: The power supply unit delivers a constant voltage of 24V with an output of up to 20W (max. 0.83A) as soon as it is switched on. Perfect for the reliable operation of LED strips, recessed lights, aquarium lighting and decorative lighting systems.

✔ UNIVERSALLY APPLICABLE: Thanks to the input voltage range of 220-240VAC (50/60Hz), the power supply unit is suitable for common domestic installations. The permissible ambient temperature of between -20°C and 45°C enables a wide range of applications.

✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 88% as well as a ripple and noise value of 400mVp-p.

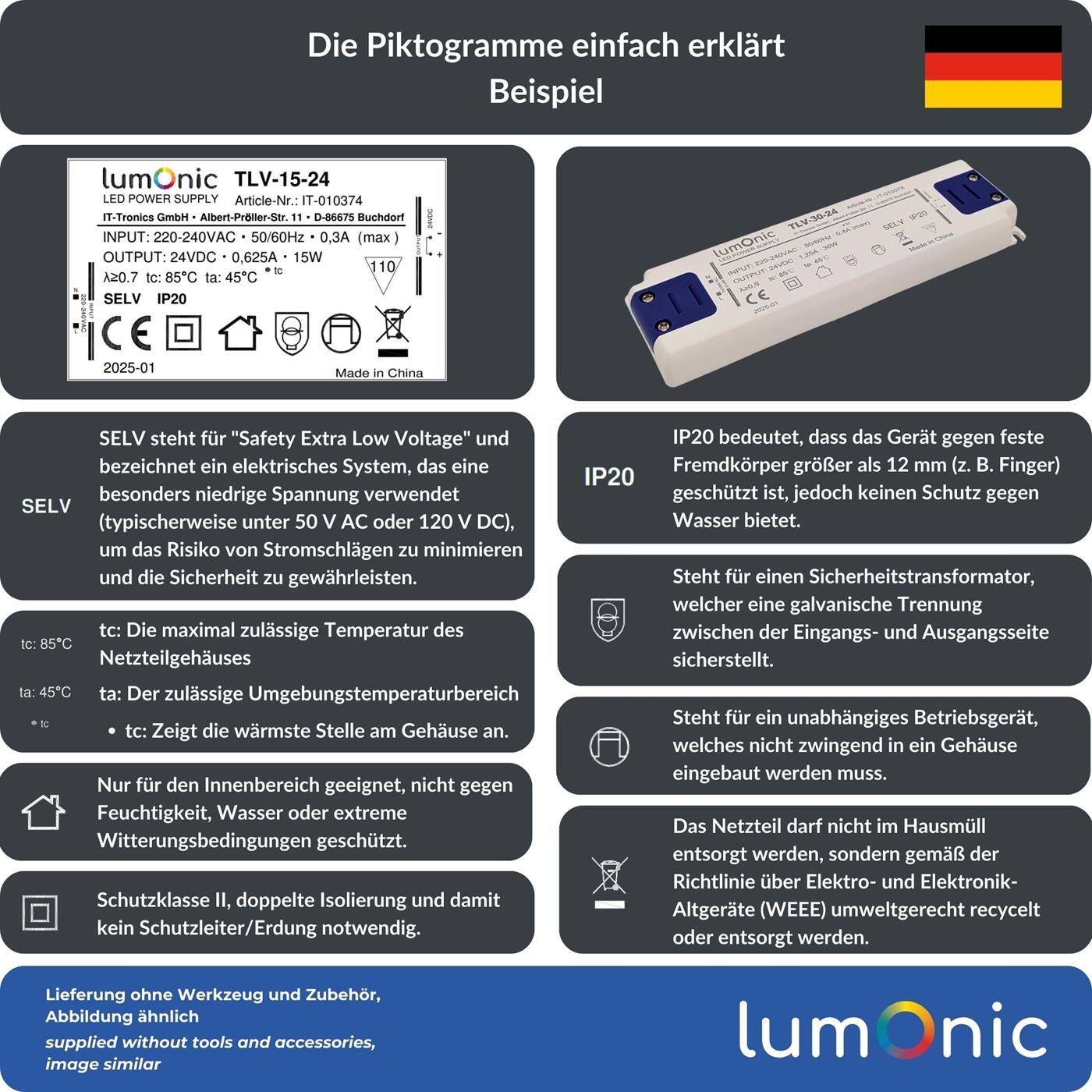

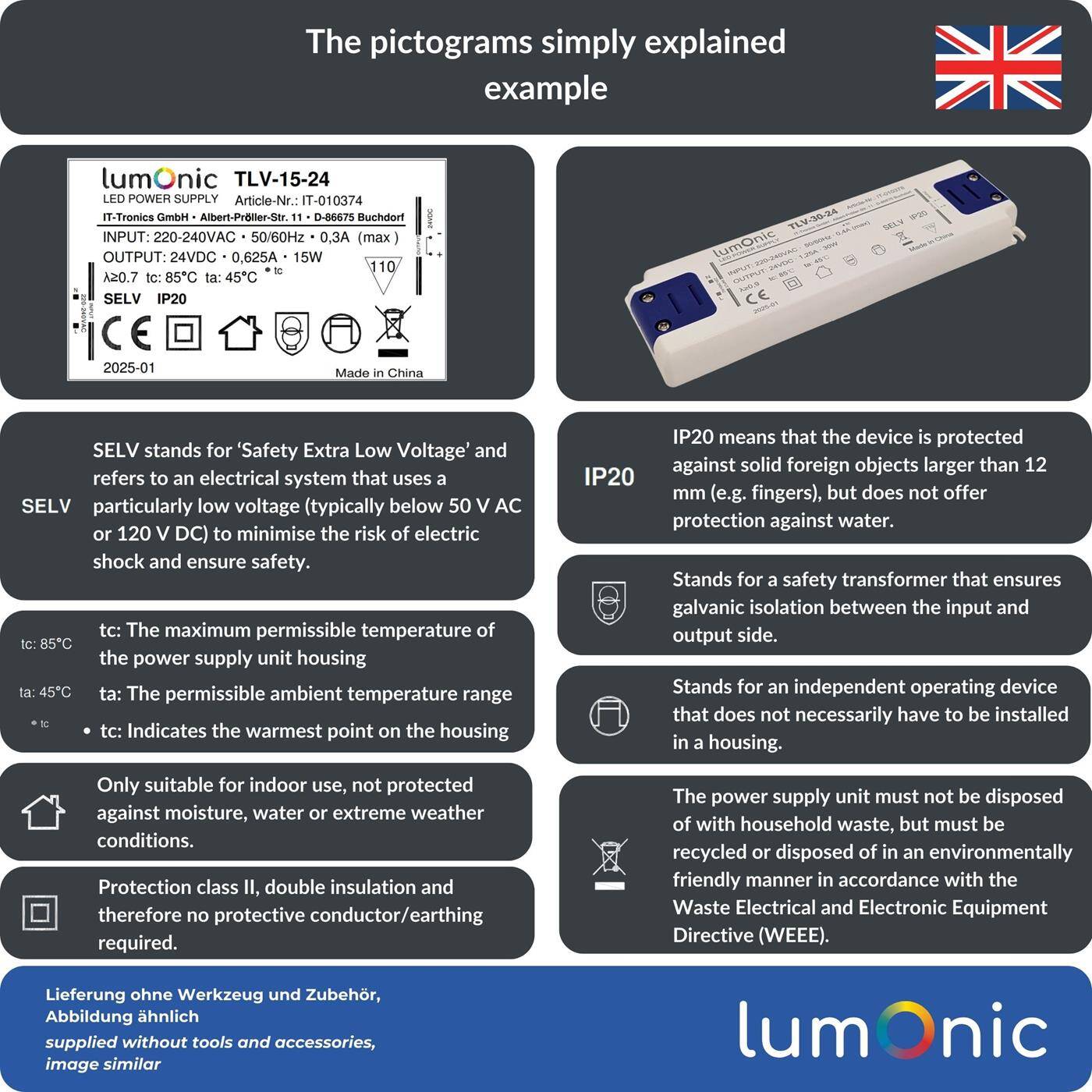

✔ SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device complies with the standards EN61347-2-13:2014 A1:2017,EN61347-1:2015

Technical specifications

Power supply type:	LED power supply
Stabilisation:	Constant voltage
Topology:	AC/DC Converter
Input voltage:	230V
Output voltage:	24V
Output current:	0,83A
Power:	20W
Input voltage (min...max):	198...264VAC
Efficiency:	88%
Protection class:	IP20
Input connection:	Screw terminals
Connection Output:	Screw terminals
Length:	103mm
Width:	35,5mm
Height:	16,5mm
