LRS-75-48 76W 48V 1,6A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-006133
Model:
LRS-75-48
Shipping weight:
0.3 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€15.00*
|
| 6 - 10 |
€14.70*
|
| 11 - 20 |
€14.40*
|
| 21 - 50 |
€14.25*
|
| 51 - 100 |
€14.10*
|
| From 101 |
€13.95*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Low current consumption in load-free operation |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 1,6A |
| Power: | 76W |
| Input voltage (min...max): | 85...373VAC |
| Output voltage (min...max): | 43,2...52,8VDC |
| Efficiency: | 91,5% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

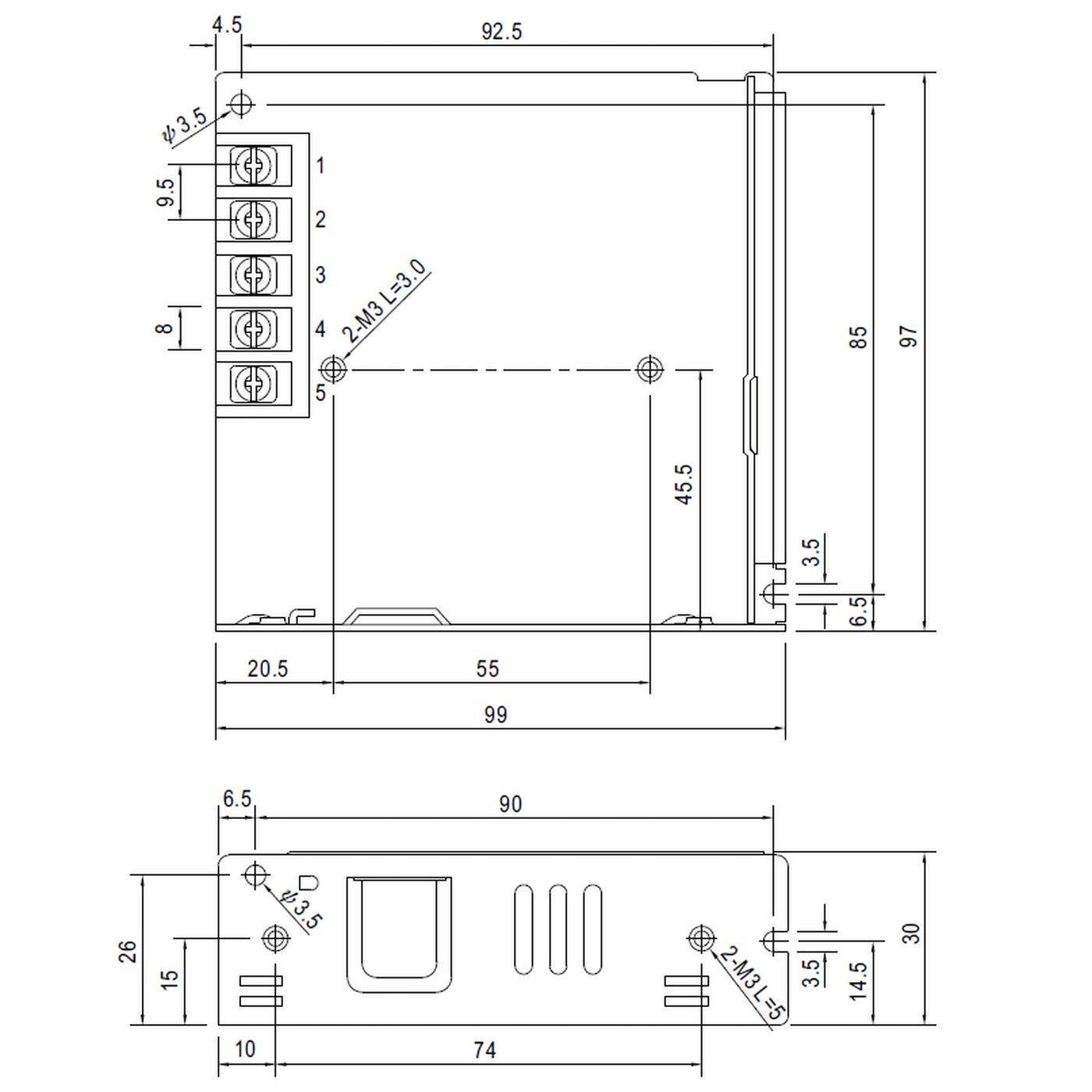

| Length: | 99mm |
| Width: | 97mm |
| Height: | 30mm |
