LRS-100-15 105W 15V 7A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-008934
Model:
LRS-100-15
Shipping weight:
0.34 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€17.50*
|
| 6 - 10 |
€17.15*
|
| 11 - 20 |
€16.80*
|
| 21 - 50 |
€16.63*
|
| 51 - 100 |
€16.45*
|
| From 101 |
€16.28*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Low current consumption in load-free operation |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 15V |
| Output current: | 7A |
| Power: | 105W |
| Input voltage (min...max): | 85...373VAC |
| Output voltage (min...max): | 13,5...18VDC |
| Efficiency: | 88,5% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

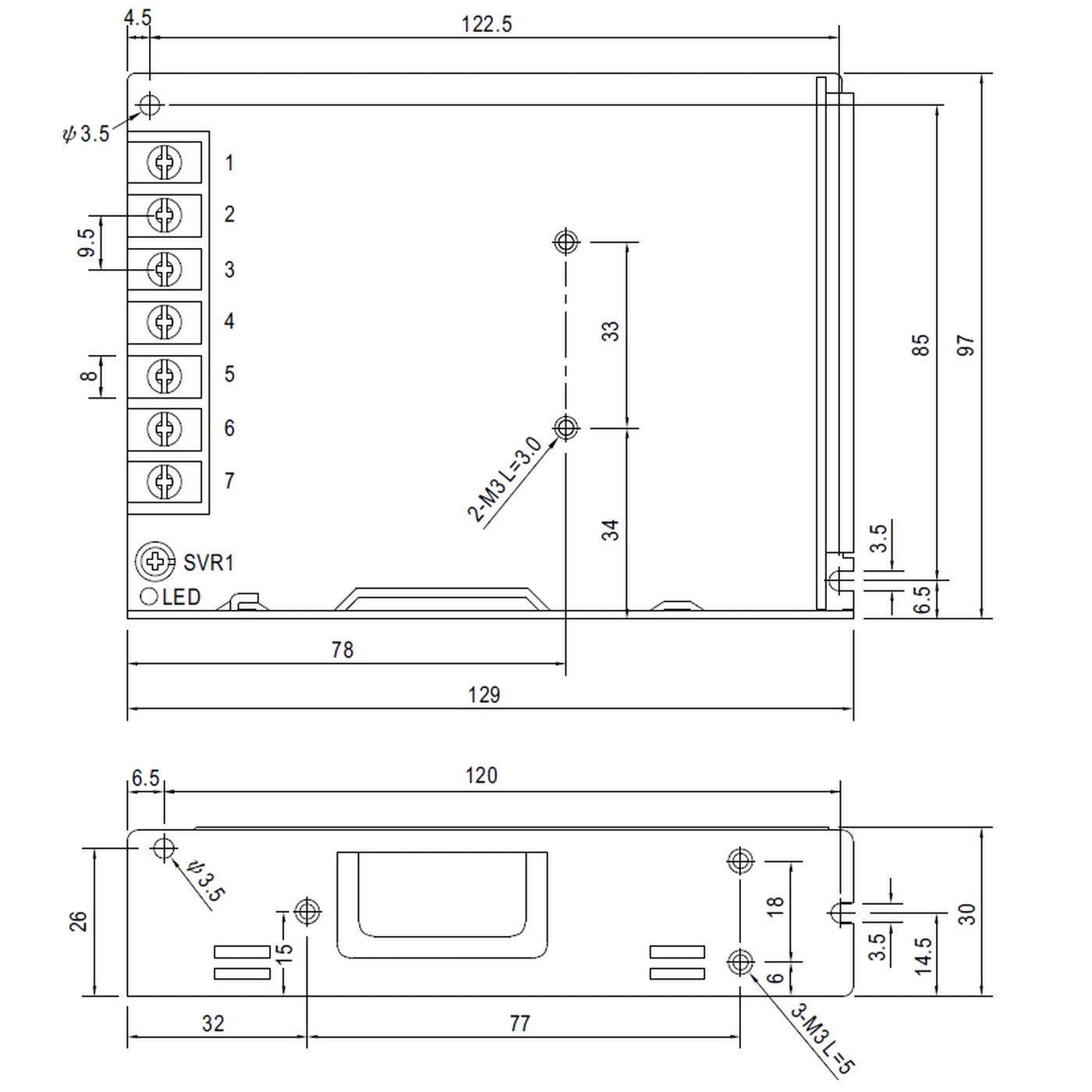

| Length: | 127mm |
| Width: | 97mm |
| Height: | 30mm |
