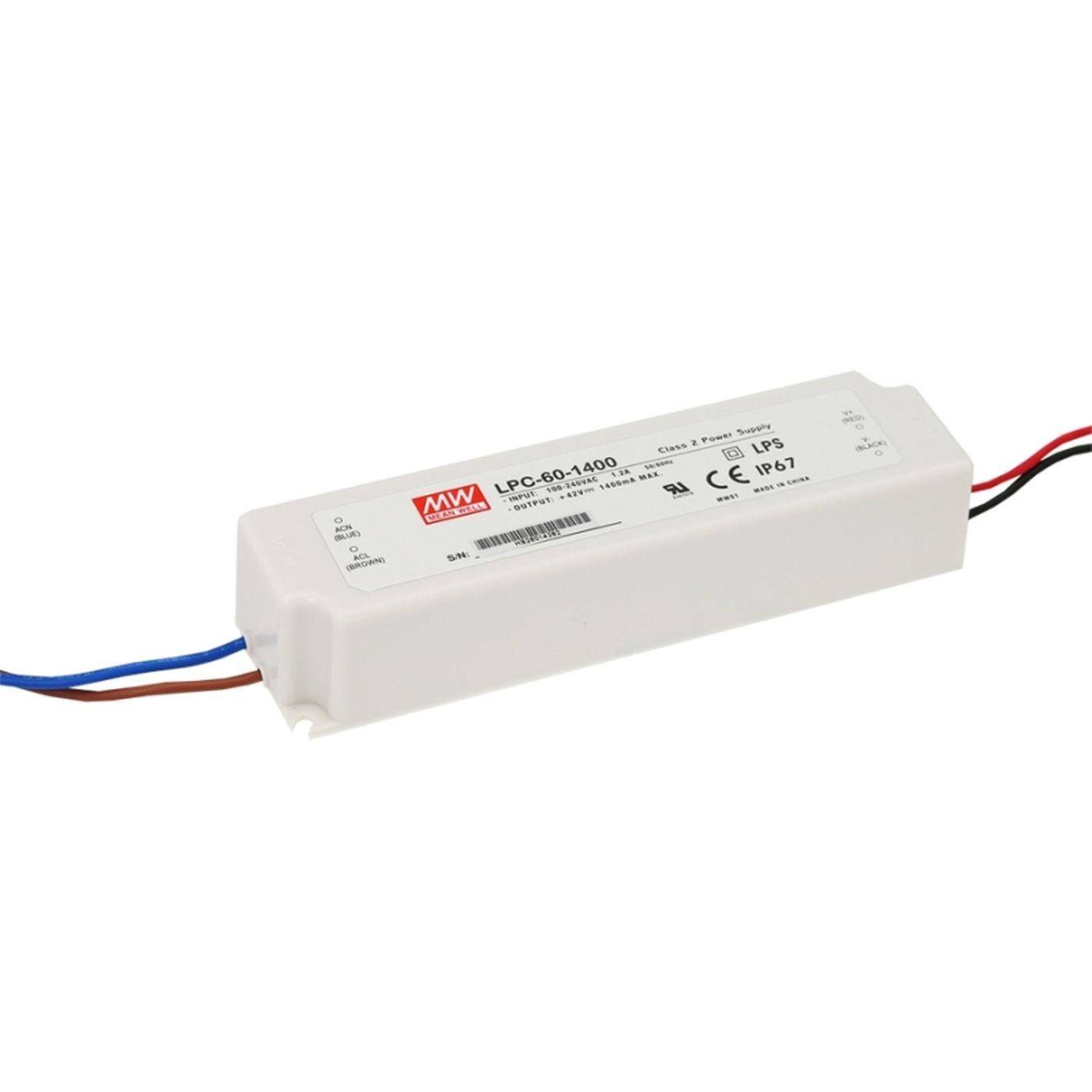

LPC-60-1400 59W 1400mA 9...42VDC Constant current LED power supply Driver Transformer IP67
Available, delivery time: 1-3 days
Article-No.:
IT-005813
Model:
LPC-60-1400
Shipping weight:
0.4 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€15.00*
|
| 6 - 10 |
€14.70*
|
| 11 - 20 |
€14.40*
|
| 21 - 50 |
€14.25*
|
| 51 - 100 |
€14.10*
|
| From 101 |
€13.95*
|
Product description
| ✔ Constant-current power supply unit |
| ✔ Universal input |
| ✔ Plastic housing IP67 |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ UL1310 Class 2 |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant current |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Constant current: | 1400mA |
| Power: | 59W |
| Input voltage (min...max): | 90...264VAC |
| Output voltage (min...max): | 9...42VDC |
| Efficiency: | 85% |
| Protection class: | IP67 |
| Input connection: | Cable: 2x60cm |
| Connection Output: | Cable: 2x60cm |

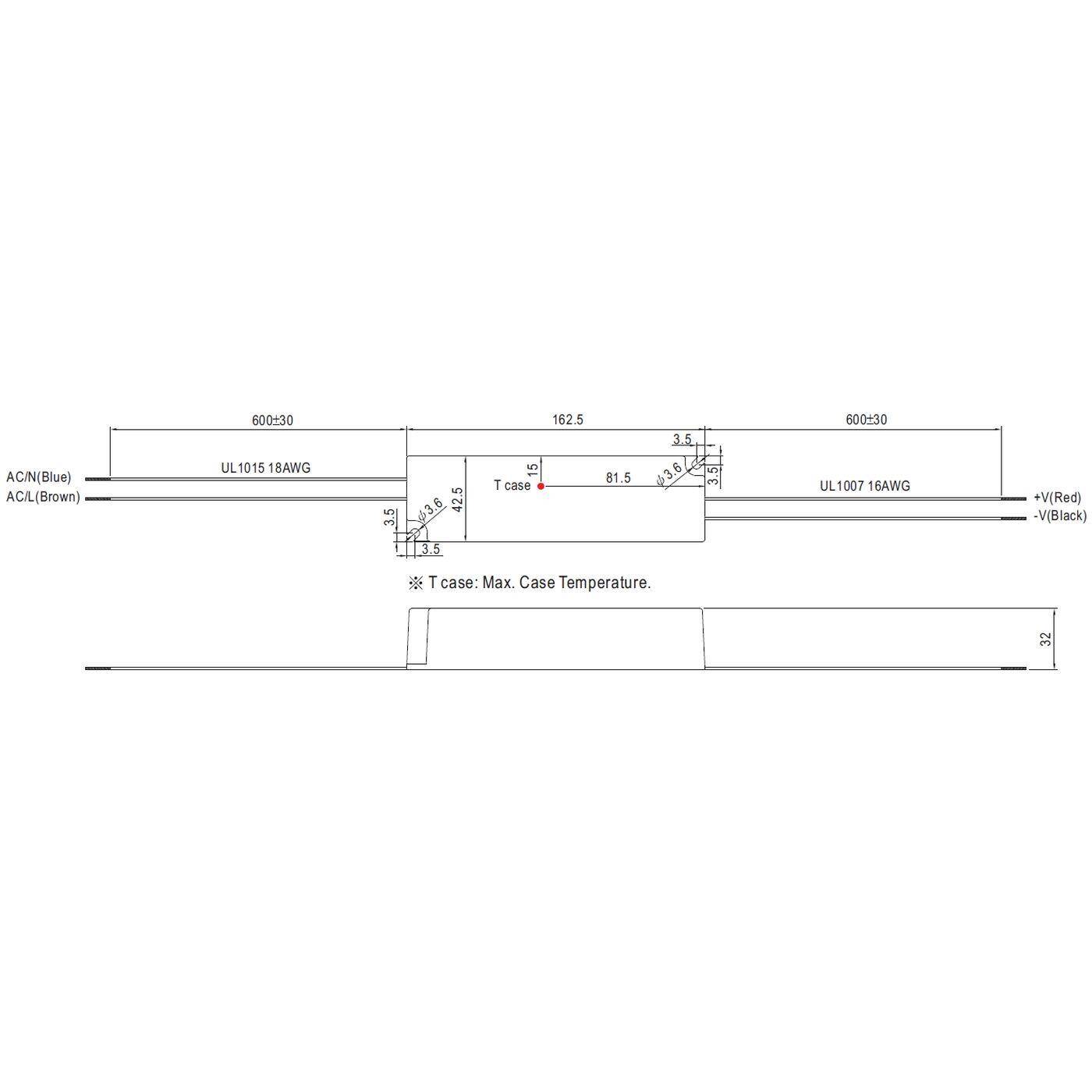

| Length: | 162,5mm |
| Width: | 42,5mm |
| Height: | 32mm |
