LED transformer TLV-150-12 12V 132W Input 220-240VAC flicker-free Overload protection LED power supply unit for LED lighting

Available, delivery time: 1-3 days

Article-No.: IT-010383

Model: TLV-150-12

Shipping weight: 0.306 kg

Shipping Zone: 50

ROHS: Ja

Netzteil-Serie

TLV-15

TLV-20

TLV-30

TLV-60

TLV-100

TLV-150

Ausgangsspannung

12V

24V

Quantity	Unit price
1 - 5	€25.00*
6 - 10	€24.75*
11 - 20	€24.50*
21 - 50	€24.25*
51 - 100	€24.25*
From 101	€24.25*

Prices incl. VAT plus shipping costs

Stk

aktueller
Bestand

Product description

✔ ultra-thin design: Our TLV series LED transformer is characterized by a flat design and compact dimensions of 179x58x20mm. It is mounted on a suitable surface using practical fixing holes, while the electrical connection is made via screw terminals. These are protected against contact by a cover.

✔ RELIABLE PERFORMANCE: The power supply delivers a constant voltage of 12V with an output of up to 132W (max. 11A) as soon as it is switched on. Perfect for the reliable operation of LED strips, recessed lights, aquarium lighting and decorative lighting systems.

✔ UNIVERSALLY APPLICABLE: Thanks to the input voltage range of 220-240VAC (50/60Hz), the power supply unit is suitable for common domestic installations. The permissible ambient temperature of between -20°C and 45°C enables a wide range of applications.

✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 90% as well as a ripple and noise value of 400mVp-p.

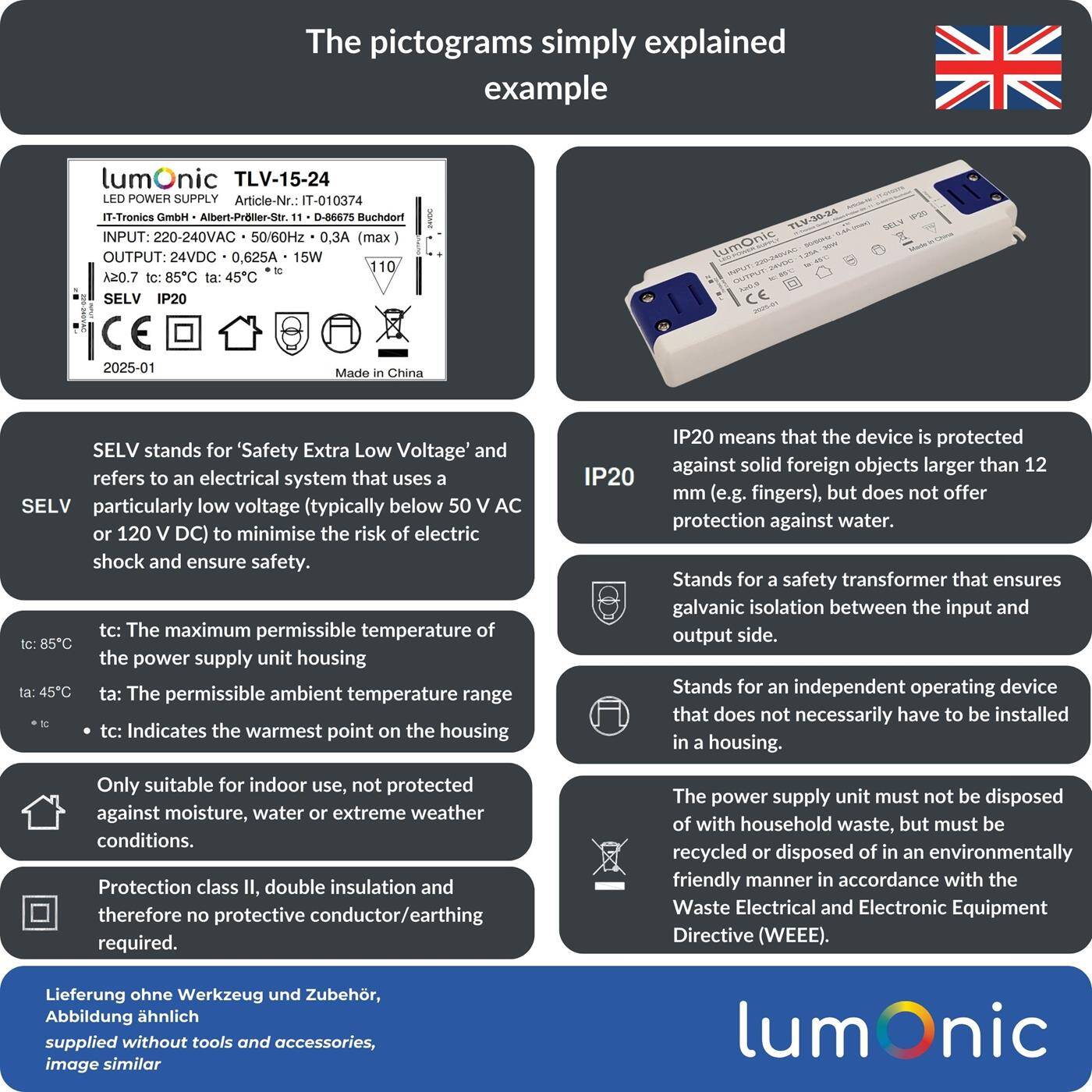

✔ SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device complies with the standards EN61347-2-13:2014 A1:2017,EN61347-1:2015

Technical specifications

Power supply type:	LED power supply
Stabilisation:	Constant voltage
Topology:	AC/DC Converter
Input voltage:	230V
Output voltage:	12V
Output current:	11A
Power:	132W
Input voltage (min...max):	198...264VAC
Efficiency:	90%
Protection class:	IP20
Input connection:	Screw terminals
Connection Output:	Screw terminals
Length:	179mm
Width:	58mm
Height:	20mm
