LED transformer BLV-320-24 24V 320W Input 220-230VAC flicker-free Overload protection LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010401
Model:
BLV-320-24
Shipping weight:
0.904 kg
Shipping Zone:
60
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€36.00*
|
| 6 - 10 |
€35.64*
|
| 11 - 20 |
€35.28*
|
| 21 - 50 |
€34.92*
|
| 51 - 100 |
€34.92*
|
| From 101 |
€34.92*
|
Product description

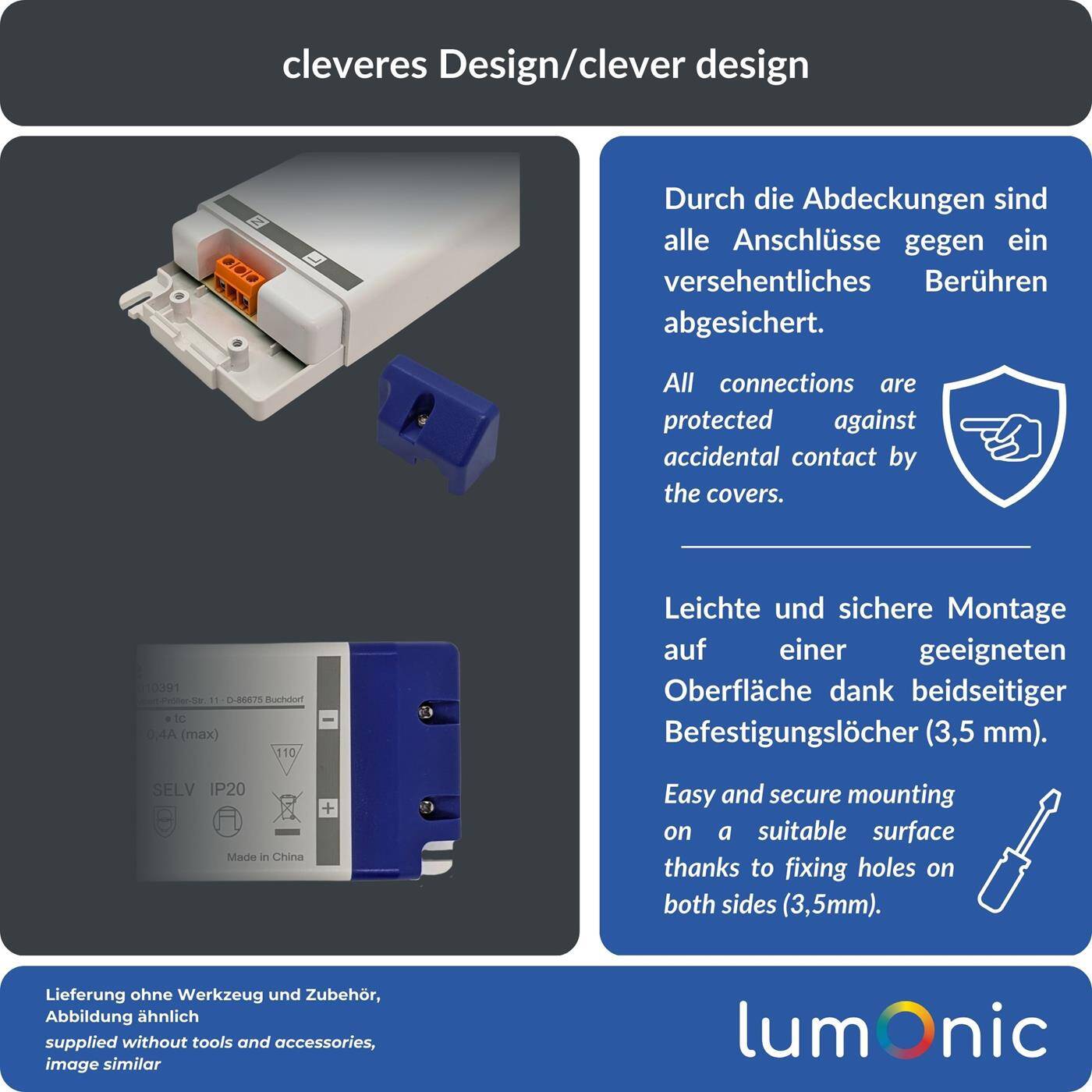

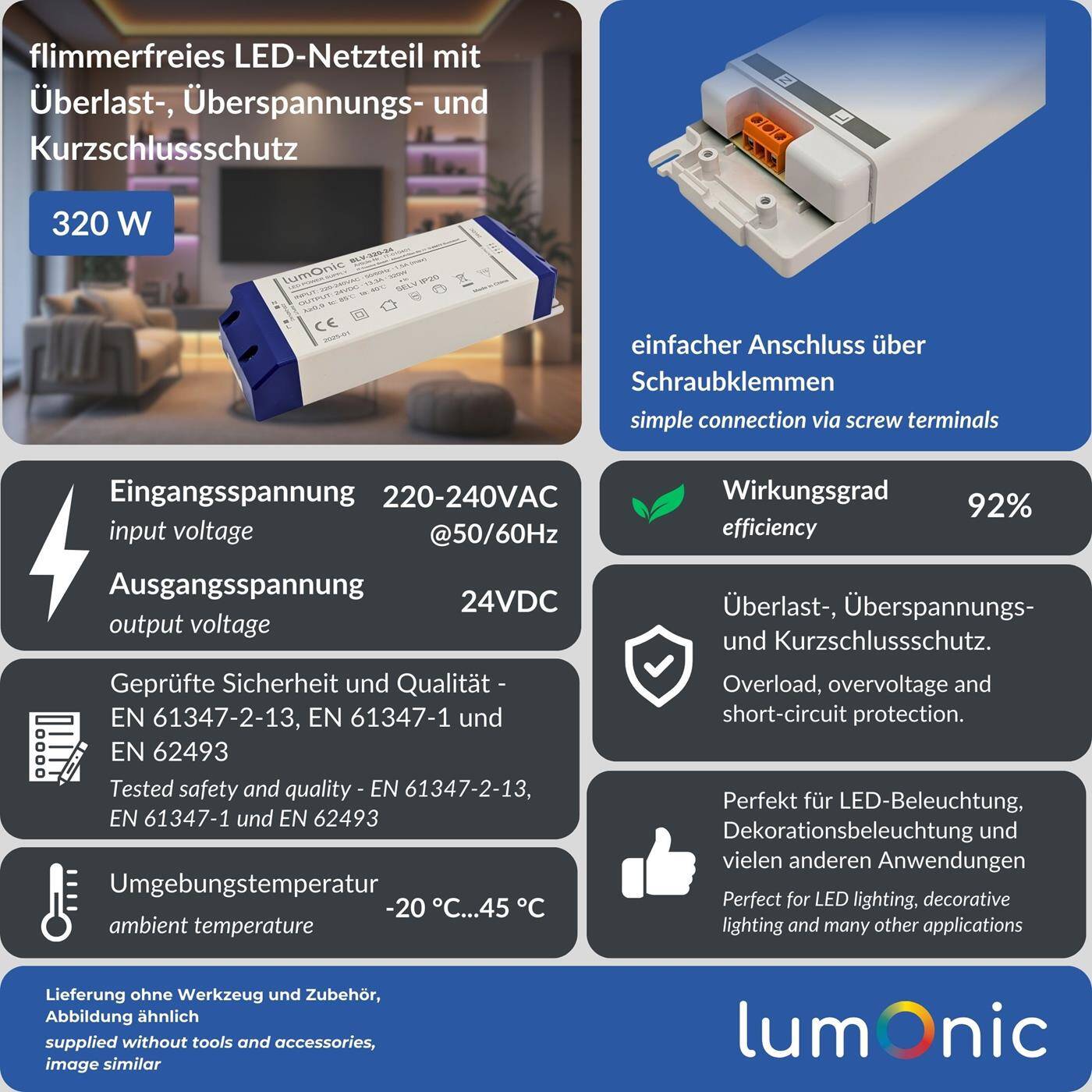

| ✔ COMPACT DESIGN: Our BLV series LED transformer is characterized by its compact dimensions of 210x80x36mm. It is mounted on a suitable surface using practical fixing holes, while the electrical connection is made via screw terminals. These are protected against contact by a cover. |
| ✔ RELIABLE PERFORMANCE: The power supply delivers a constant voltage of 24V with an output of up to 320W (max. 13.33A) as soon as it is switched on. Perfect for the reliable operation of LED strips, recessed lights, aquarium lighting and decorative lighting systems. |
| ✔ UNIVERSALLY APPLICABLE: Thanks to the input voltage range of 220-240VAC (50/60Hz), the power supply unit is suitable for common domestic installations. The permissible ambient temperature of between -20°C and 45°C enables a wide range of applications. |
| ✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 92% as well as a ripple and noise value of 400mVp-p. |
| ✔ SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device complies with the standards EN61347-2-13:2014 A1:2017,EN61347-1:2015 |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 13,33A |
| Power: | 320W |
| Input voltage (min...max): | 198...264VAC |
| Efficiency: | 92% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
| Length: | 210mm |
| Width: | 80mm |
| Height: | 36mm |
Ihr Produktverlauf
5m (500cm) LED Strip Tape Bar 12V Yellow IP20 600LEDs 120LED/m SMD3528
€10.00*
incl. VAT
plus shipping costs
Thermal switch 140°C NO contact 250V 10A Temperature switch thermostat KSD301 Bimetal Thermal protection
€2.50*
incl. VAT
plus shipping costs
0,25m Battery cable Plus cable 16mm² Red CAR Power cable 2x Pole terminal 25cm
€6.30*
incl. VAT
plus shipping costs

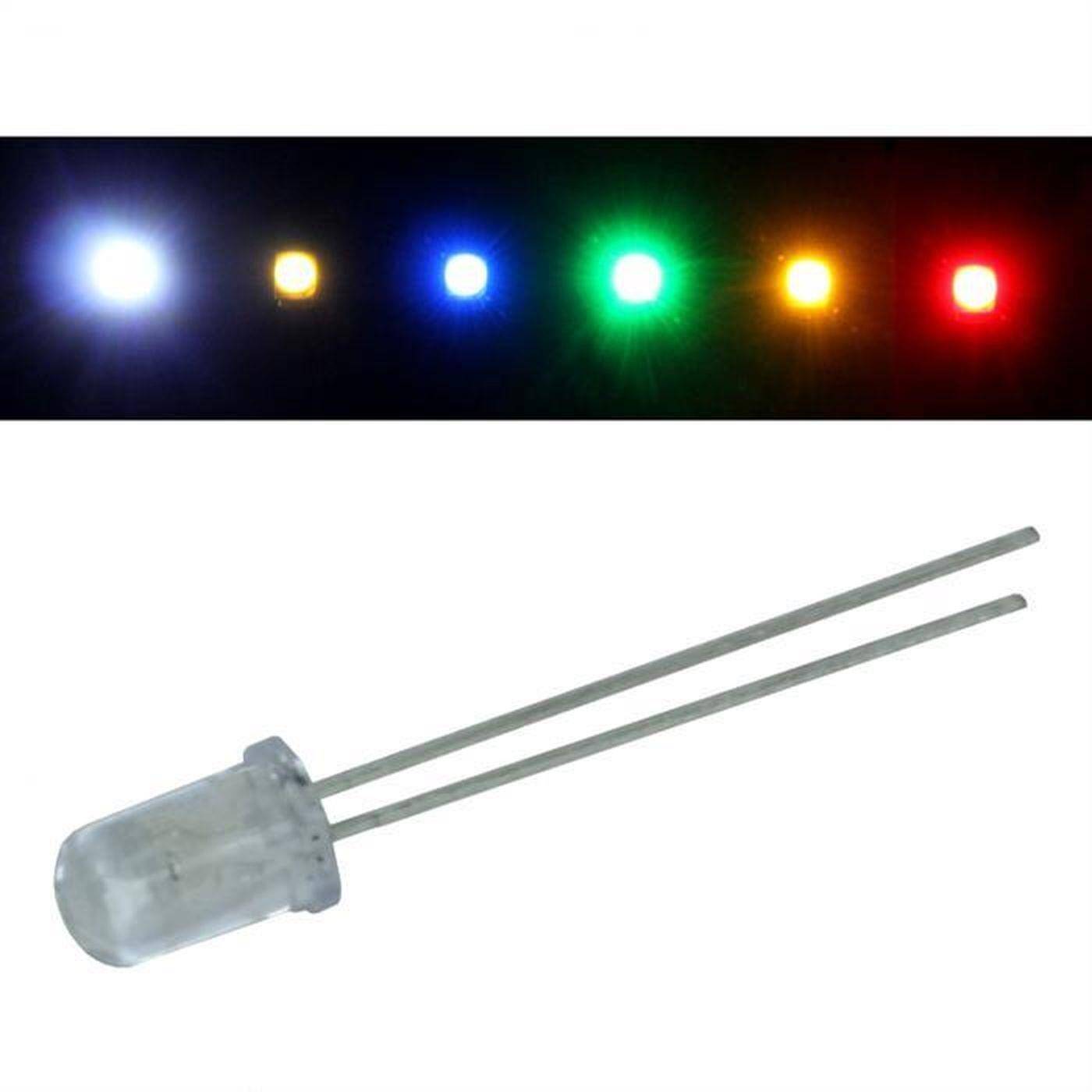

20x Superbright LEDs 5mm Blue 20mA 3,2V 5000…8000mcd 45° Conventional LED
