LED transformer BLV-200-12 12V 200W Input 220-230VAC flicker-free Overload protection LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010399
Model:
BLV-200-12
Shipping weight:
0.795 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€30.00*
|
| 6 - 10 |
€29.70*
|
| 11 - 20 |
€29.40*
|
| 21 - 50 |
€29.10*
|
| 51 - 100 |
€29.10*
|
| From 101 |
€29.10*
|

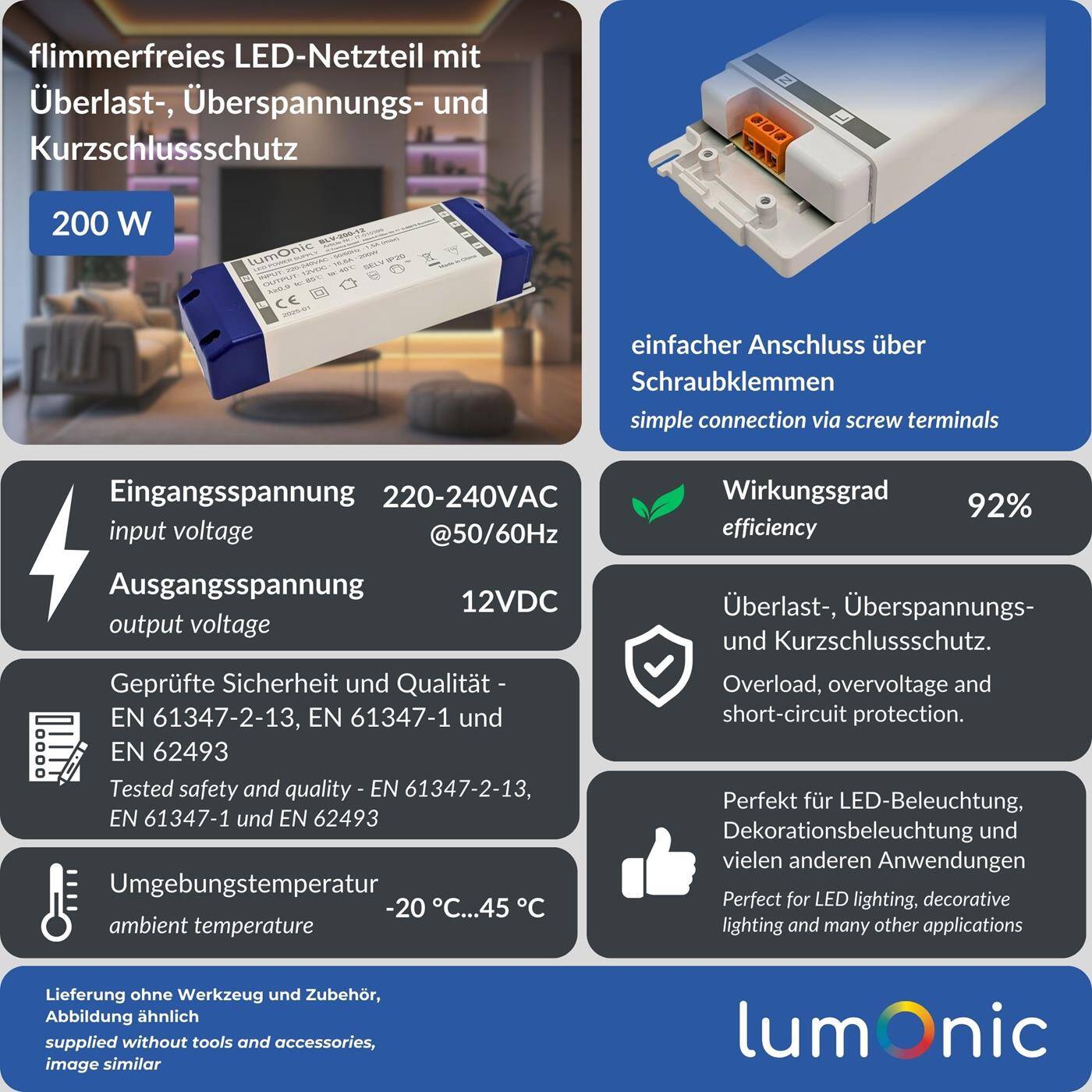

Product description
| ✔ SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device complies with the standards EN61347-2-13:2014 A1:2017,EN61347-1:2015 |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 12V |
| Output current: | 16,67A |
| Power: | 200W |
| Input voltage (min...max): | 198...264VAC |
| Efficiency: | 92% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

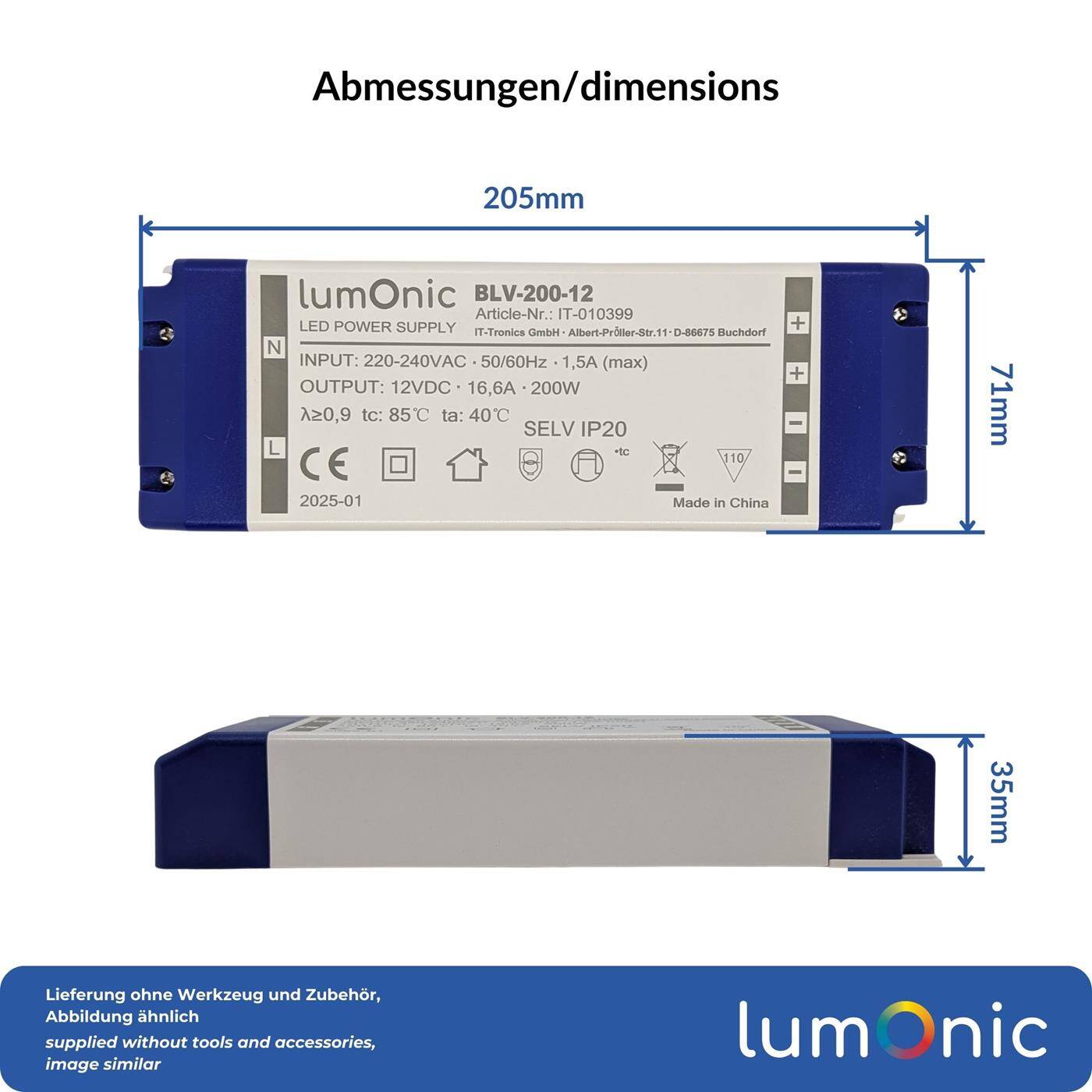

| Length: | 205mm |
| Width: | 71mm |
| Height: | 35mm |
