LED flush-mounted power supply unit RLV-12-12 12V 12W Input 220-230VAC flicker-free Overload protection Compact LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010416
Model:
RLV-12-12
Shipping weight:
0.07 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€6.00*
|
| 6 - 10 |
€5.88*
|
| 11 - 20 |
€5.76*
|
| 21 - 50 |
€5.70*
|
| 51 - 100 |
€5.64*
|
| From 101 |
€5.58*
|
Product description

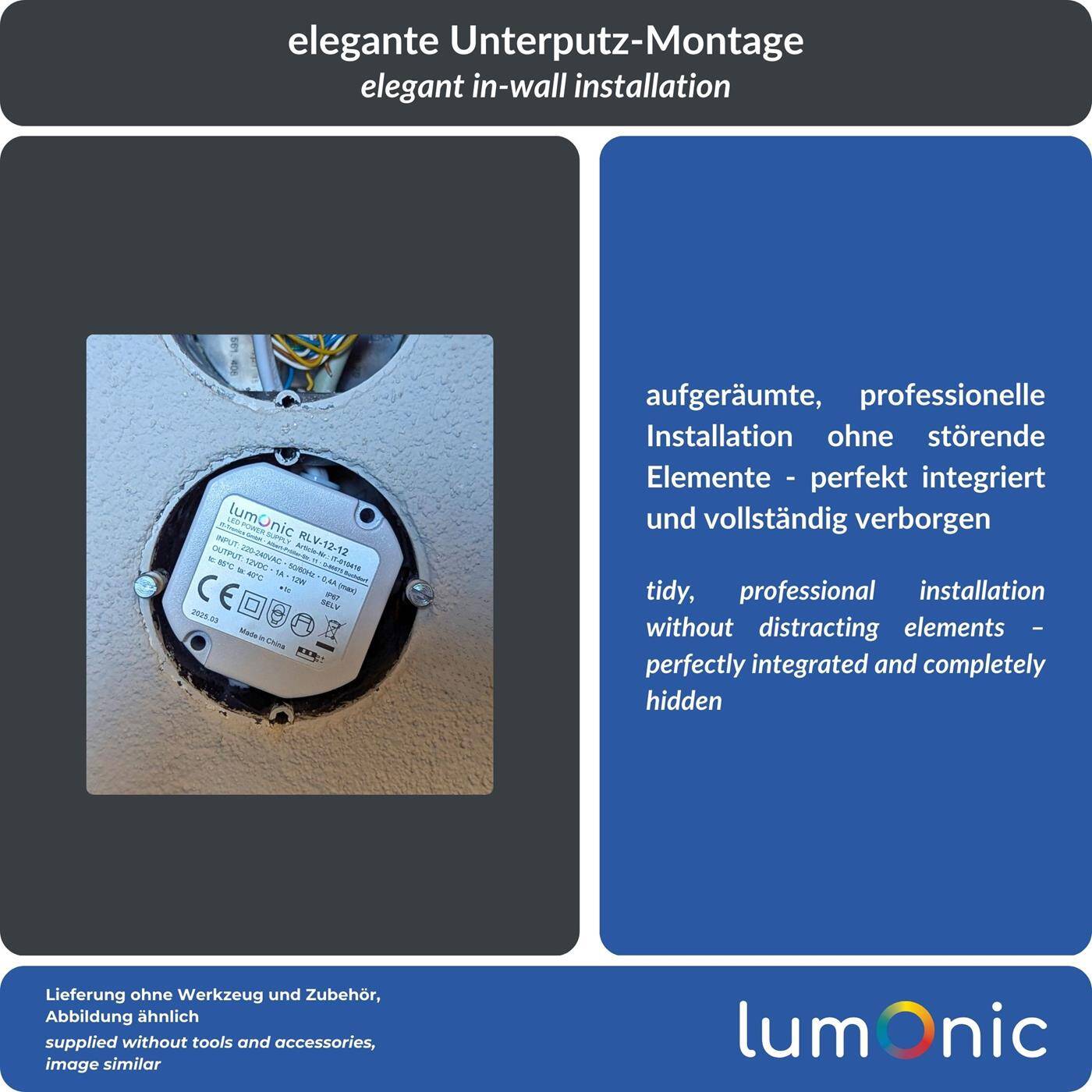

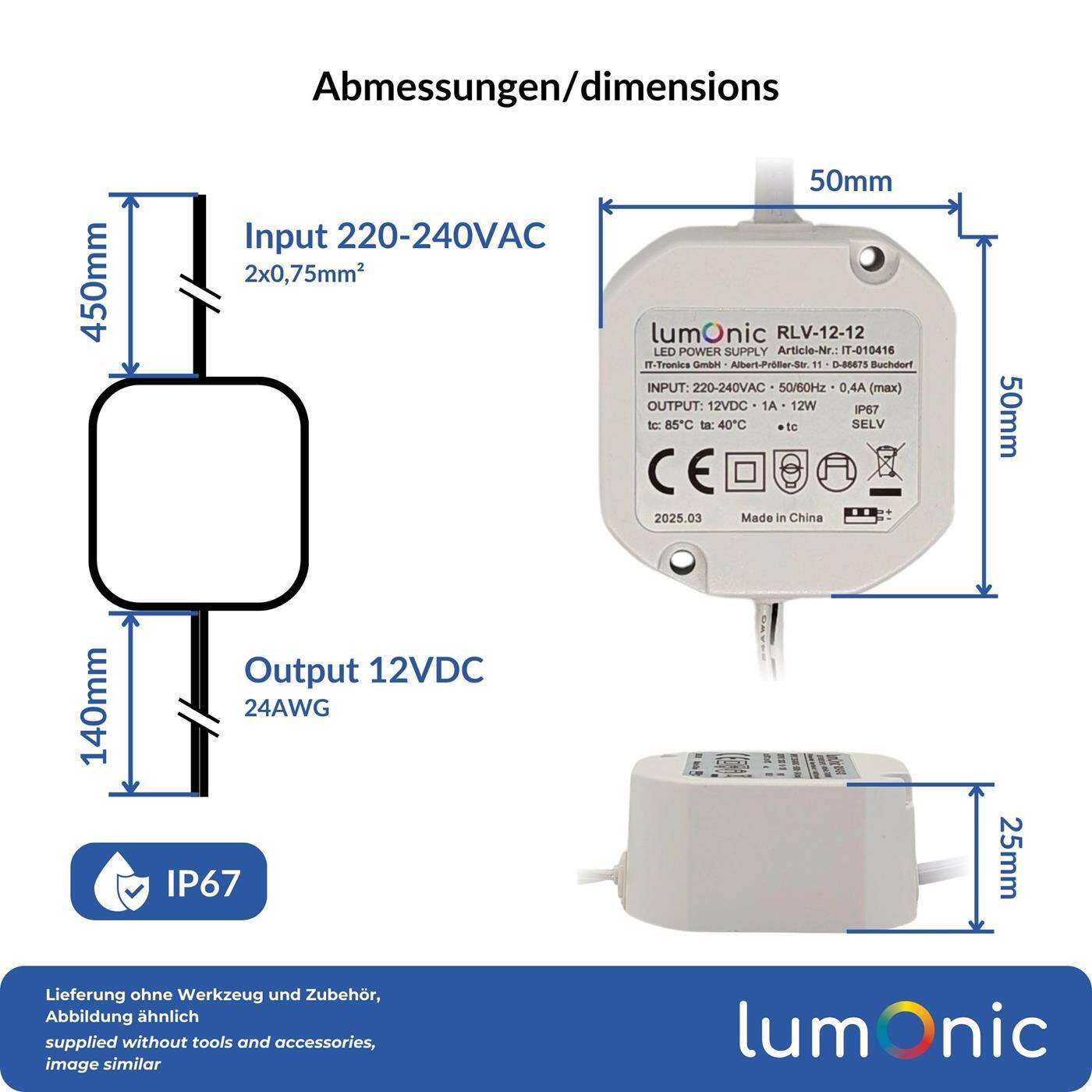

| ✔ ULTRA COMPACT DESIGN: Our LED flush-mounted transformer from the RLV series is characterized by its compact dimensions of 50x50x25mm. It can be installed completely concealed in a suitable hollow box, also known as a flush-mounted box, for a tidy installation. The connection is made via the permanently integrated, extra-long cables, which cannot be removed. |
| ✔ RELIABLE PERFORMANCE: The power supply delivers a constant voltage of 12V with an output of up to 12W (max. 1.0A) as soon as it is switched on. Perfect for the reliable operation of LED strips, decorative lighting systems, smart home components or a video doorbell. |
| ✔ UNIVERSALLY APPLICABLE: Thanks to the input voltage range of 220-240VAC (50/60Hz), the power supply unit is suitable for common domestic installations. The permissible ambient temperature between -20°C and 45°C and the water protection (IP67) enable versatile applications. |
| ✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 82% as well as a ripple and noise value of 400mVp-p. |
| ✔ TESTED SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device is also CE/EN-certified (EN61347-2-13:2014 A1:2017,EN61347-1:2015 |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 12V |
| Output current: | 1A |
| Power: | 12W |
| Input voltage (min...max): | 220...240VAC |
| Efficiency: | 82% |
| Protection class: | IP67 |
| Input connection: | Cable: 2x45cm |
| Connection Output: | Cable: 2x15cm |
| Length: | 50mm |
| Width: | 50mm |
| Height: | 25mm |
