HLG-80H-36A 82W 36V 2,3A LED power supply Transformer Driver IP65
Available, delivery time: 1-3 days
Article-No.:
IT-006087
Model:
HLG-80H-36A
Shipping weight:
0.84 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
Product description
| ✔ Aluminium housing IP65 |
| ✔ High efficiency |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Adjustable output voltage via internal potentiometer |
| ✔ Adjustable current limiting via internal potentiometer |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 36V |
| Output current: | 2,3A |
| Power: | 82W |
| Input voltage (min...max): | 90...305VAC |
| Output voltage (min...max): | 33...40VDC |
| Efficiency: | 91% |
| Dimmable: | Potentiometer |
| Protection class: | IP65 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm |

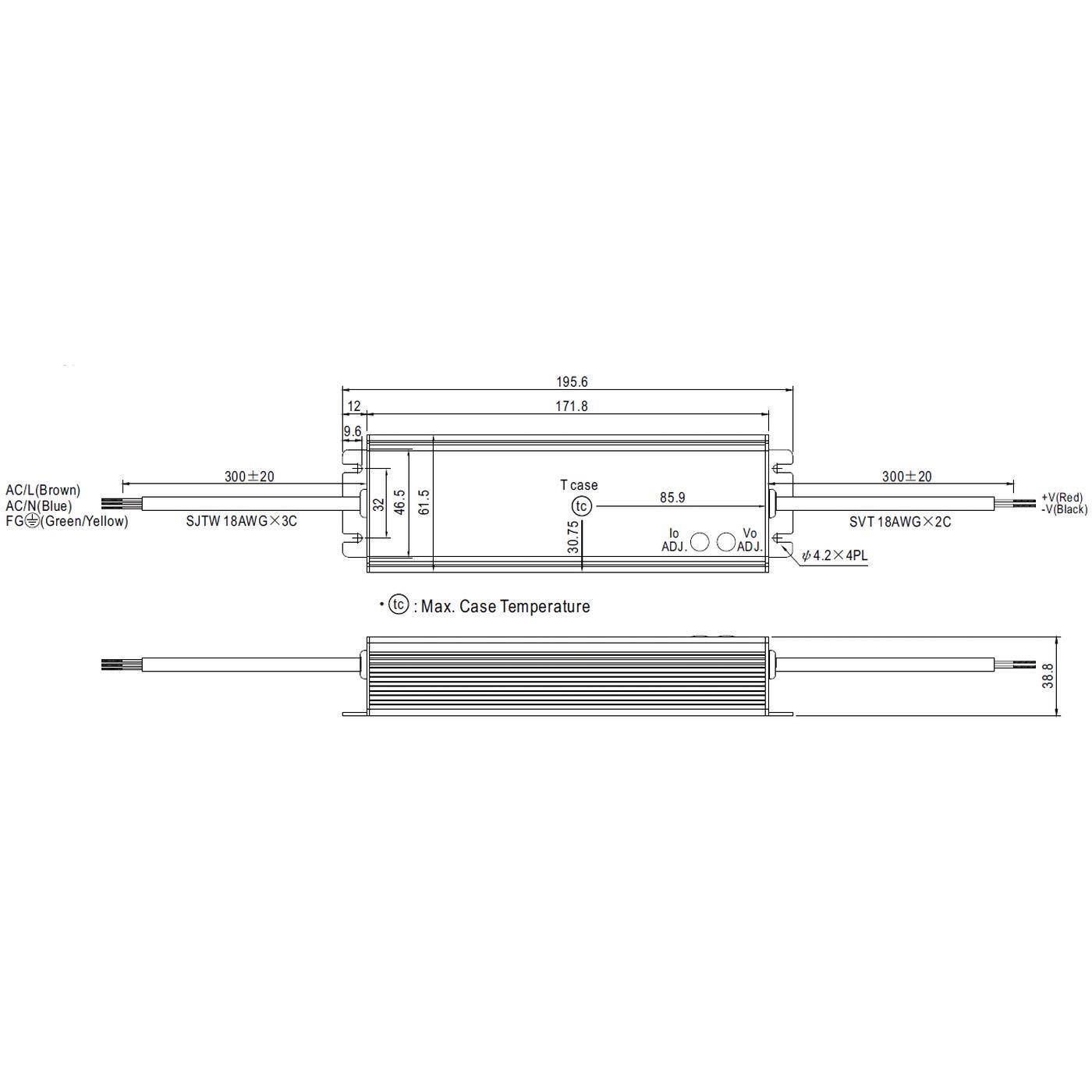

| Length: | 195,6mm |
| Width: | 61,5mm |
| Height: | 38,8mm |
