HLG-60H-15A 60W 15V 4A LED power supply Transformer Driver IP65
Available, delivery time: 1-3 days
Article-No.:
IT-006078
Model:
HLG-60H-15A
Shipping weight:
0.73 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€38.00*
|
| 6 - 10 |
€37.62*
|
| 11 - 20 |
€37.24*
|
| 21 - 50 |
€36.86*
|
| 51 - 100 |
€36.86*
|
| From 101 |
€36.86*
|
Product description
| ✔ Aluminium housing IP65 |
| ✔ High efficiency |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Adjustable output voltage via internal potentiometer |
| ✔ Adjustable current limiting via internal potentiometer |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 15V |
| Output current: | 4A |
| Power: | 60W |
| Input voltage (min...max): | 90...305VAC |
| Output voltage (min...max): | 13,5...17VDC |
| Efficiency: | 87,5% |
| Dimmable: | Potentiometer |
| Protection class: | IP65 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm |

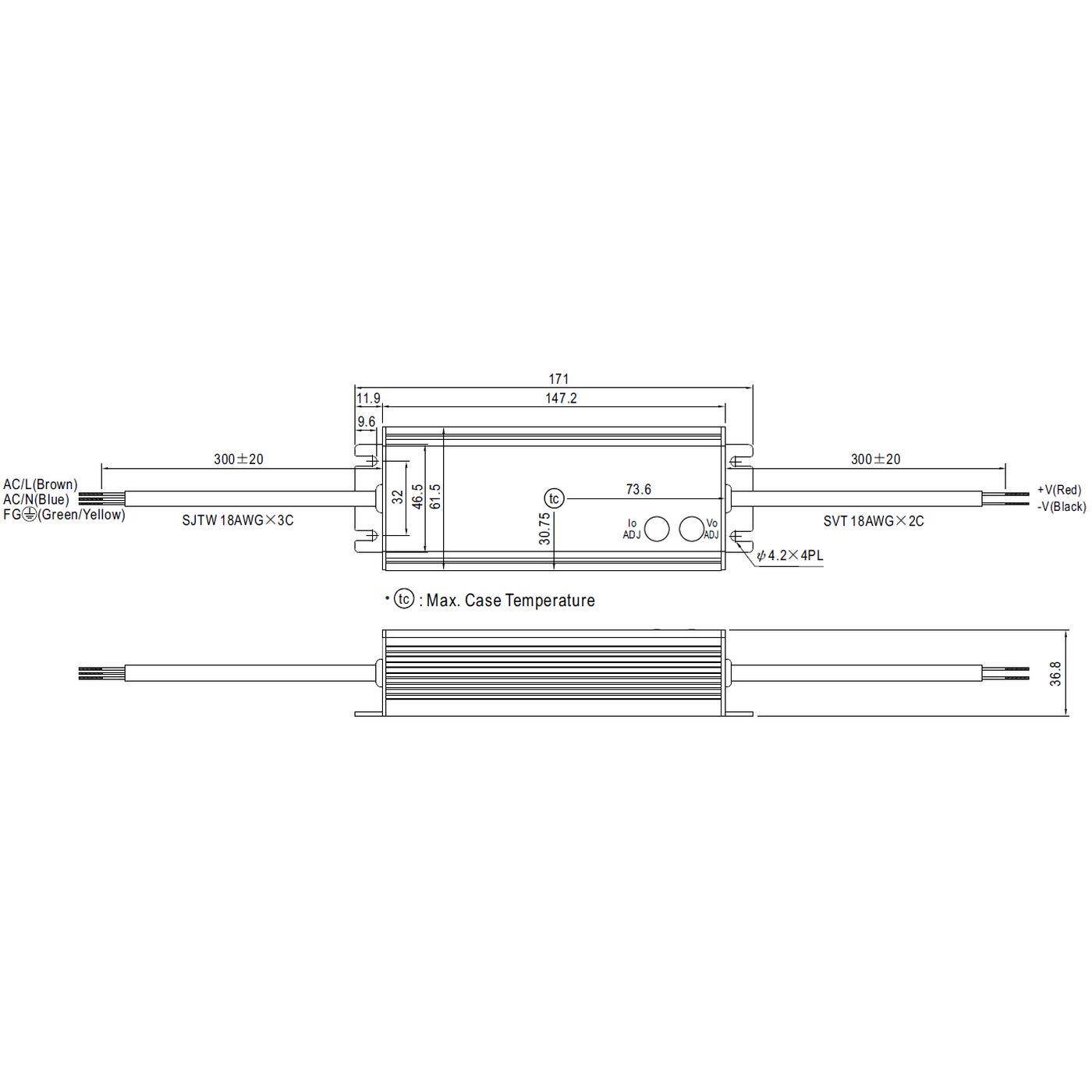

| Length: | 171mm |
| Width: | 61,5mm |
| Height: | 36,8mm |
