HLG-600H-48A 600W 48V 12,5A LED power supply Transformer Driver IP65
Available, delivery time: 1-3 days
Article-No.:
IT-006120
Model:
HLG-600H-48A
Shipping weight:
3.9 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
Product description
| ✔ Aluminium housing IP65 |
| ✔ High efficiency |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Adjustable output voltage via internal potentiometer |
| ✔ Adjustable current limiting via internal potentiometer |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 12,5A |
| Power: | 600W |
| Input voltage (min...max): | 90...305VAC |
| Output voltage (min...max): | 40,8...50,4VDC |
| Efficiency: | 96% |
| Dimmable: | 0-10V |
| Protection class: | IP65 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm (Power), 2x30cm (DIM) |

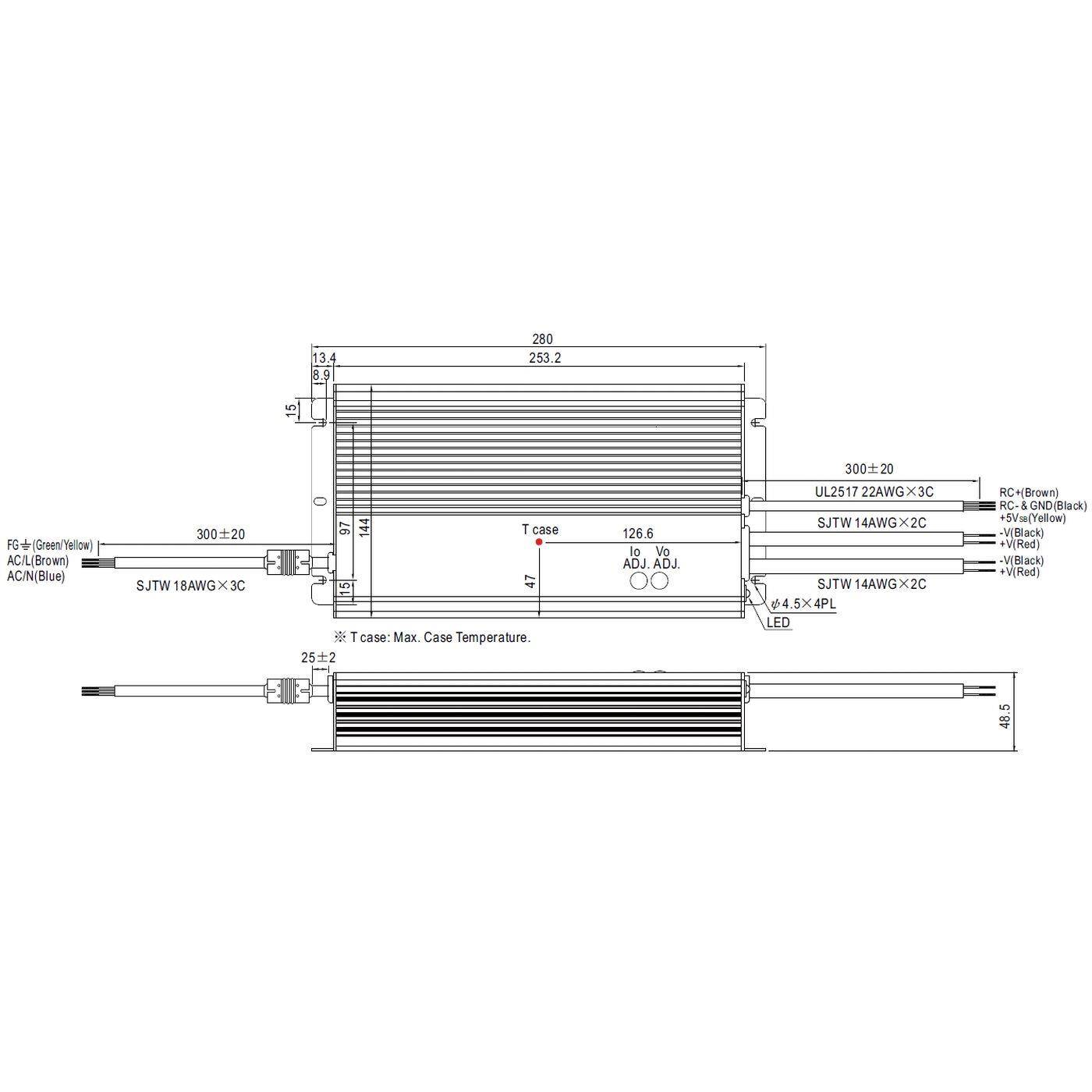

| Length: | 280mm |
| Width: | 144mm |
| Height: | 48,5mm |
