HLG-320H-24A 320W 24V 13,34A LED power supply Transformer Driver IP65
Available, delivery time: 1-3 days
Article-No.:
IT-006049
Model:
HLG-320H-24A
Shipping weight:
1.88 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€80.00*
|
| 3 - 5 |
€79.20*
|
| 6 - 10 |
€78.40*
|
| 11 - 20 |
€77.60*
|
| 21 - 50 |
€77.60*
|
| From 51 |
€77.60*
|
Product description
| ✔ Aluminium housing IP65 |
| ✔ High efficiency |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Adjustable output voltage via internal potentiometer |
| ✔ Adjustable current limiting via internal potentiometer |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 13,34A |
| Power: | 320W |
| Input voltage (min...max): | 90...305VAC |
| Output voltage (min...max): | 21...26VDC |
| Efficiency: | 94% |
| Dimmable: | Potentiometer |
| Protection class: | IP65 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm |

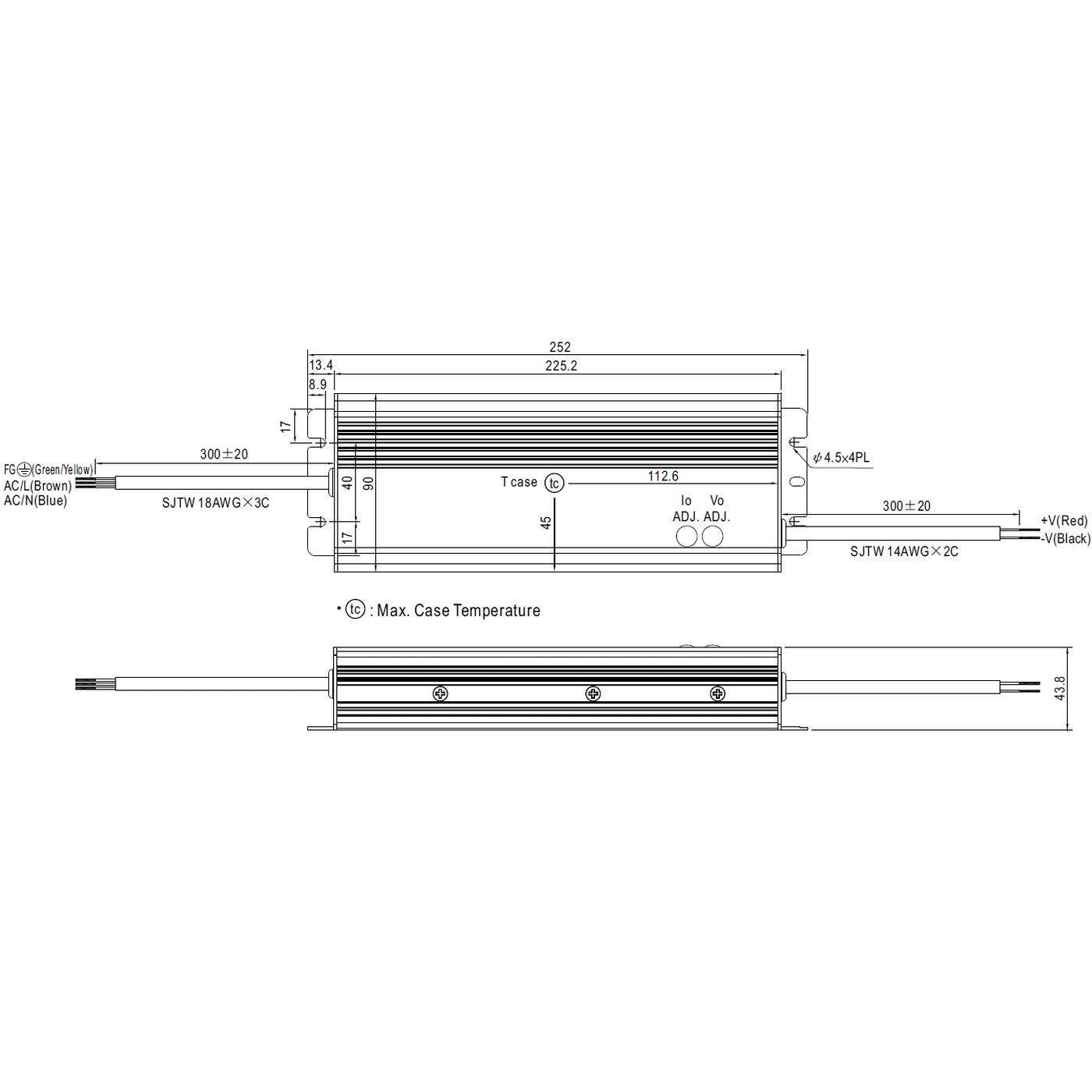

| Length: | 252mm |
| Width: | 90mm |
| Height: | 43,8mm |
