HLG-240H-12B 192W 12V 16A LED power supply Transformer Driver IP67 Dimmable 0-10V PWM
Available, delivery time: 1-3 days
Article-No.:
IT-006104
Model:
HLG-240H-12B
Shipping weight:
1.3 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
Product description
| ✔ 3in1 dimming function (via external voltage 1...10V DC, 10V PWM signal or resistor/potentiometer) |
| ✔ aluminium housing IP67 |
| ✔ High efficiency |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Adjustable current limitation via control line |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 16A |
| Power: | 192W |
| Input voltage (min...max): | 90...305VAC |
| Efficiency: | 90% |
| Dimmable: | 0-10V |
| Protection class: | IP67 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm (Power), 2x30cm (DIM) |

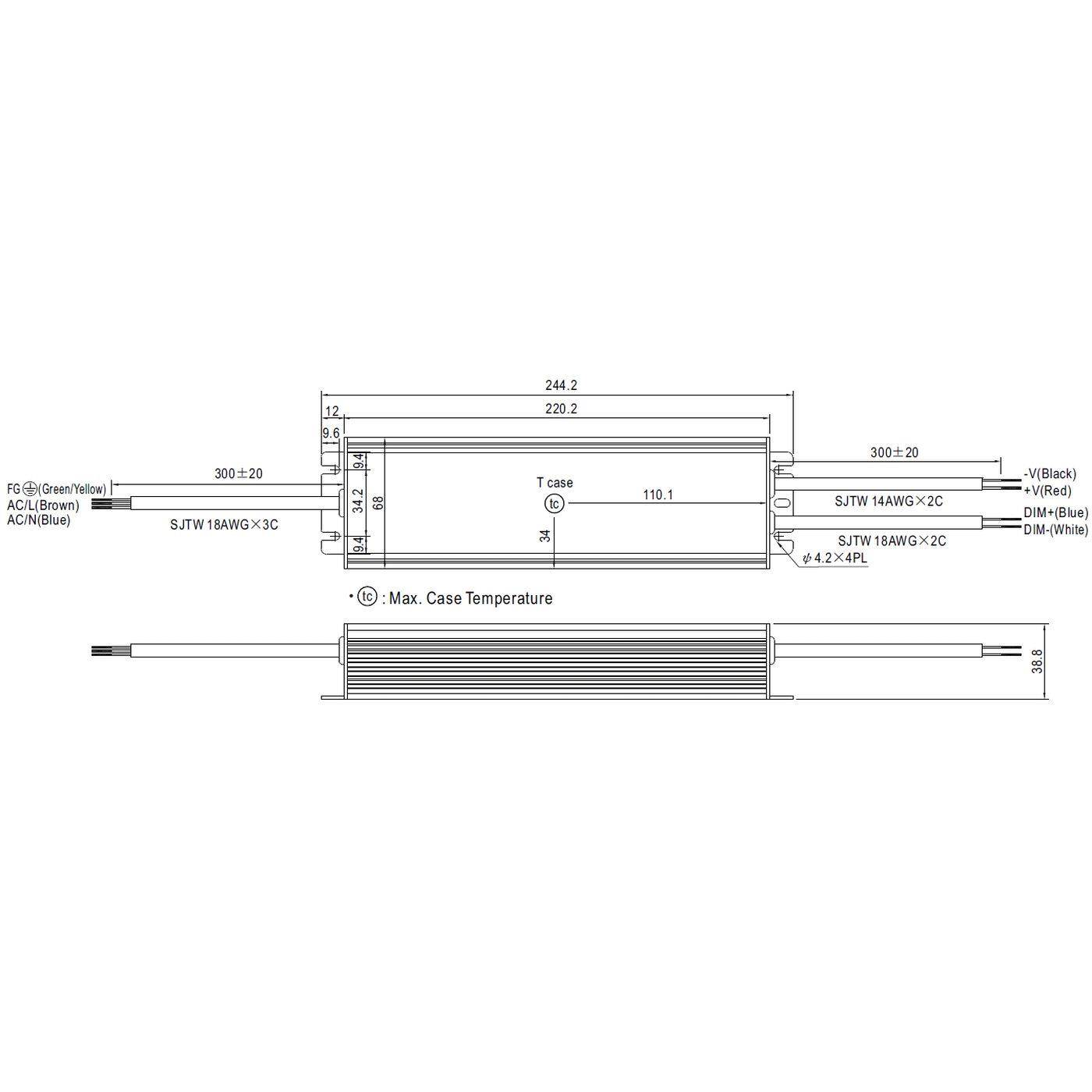

| Length: | 244,2mm |
| Width: | 68mm |
| Height: | 38,8mm |
