Heat-shrink end cap with adhesive 55 -> 25mm black Ratio 2:1 cross-linked polyolefin Shrink cap for cables, pipes and ropes
Available, delivery time: 1-3 days
Article-No.:
IT-010546000432
Shipping weight:
0.039 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€3.20*
|
| 11 - 20 |
€3.14*
|
| 21 - 50 |
€3.07*
|
| 51 - 100 |
€3.04*
|
| 101 - 200 |
€3.01*
|
| From 201 |
€2.98*
|
Product description

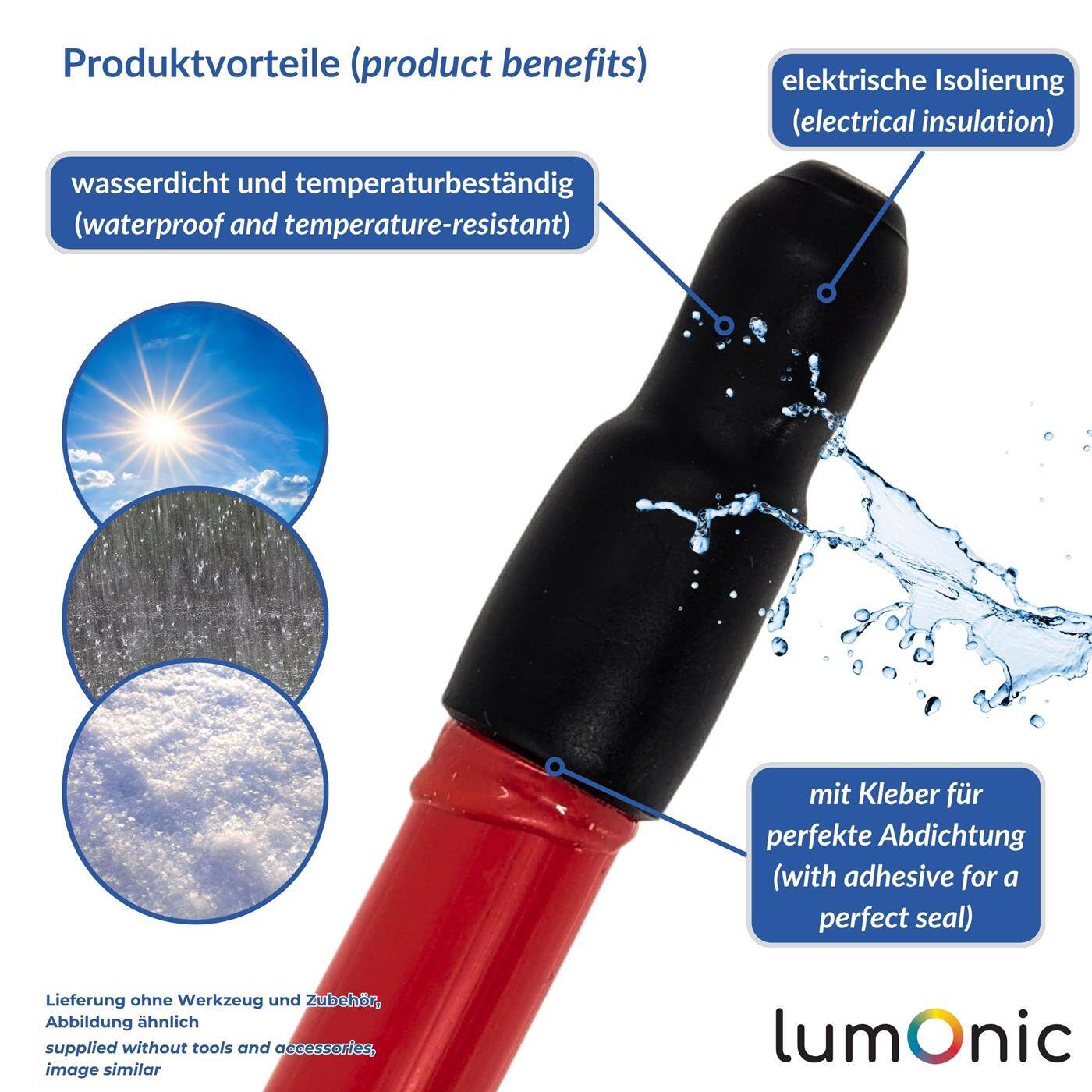

| ✔ PERFECT SEALING AND INSULATION: The additional adhesive on the inside, which liquefies during shrinking, ensures a watertight seal and perfect sealing. The shrink ratio of the end cap is 2:1. |

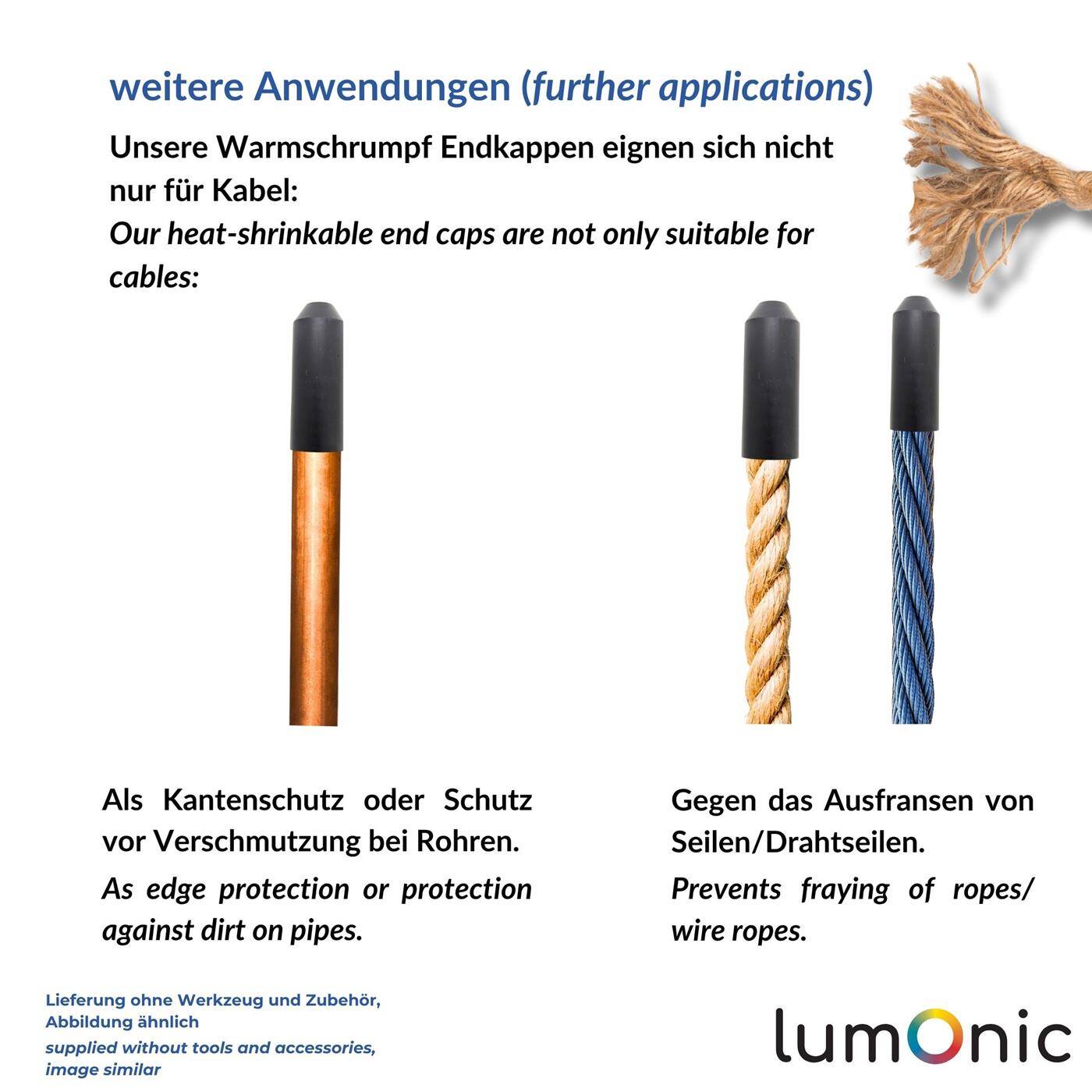

| ✔ UNIVERSALLY APPLICABLE: The shrink sleeve end caps are not only suitable for insulating cable ends. They prevent the ends of ropes/wire ropes from fraying and serve as edge protection for pipes or prevent the ingress of dirt. |

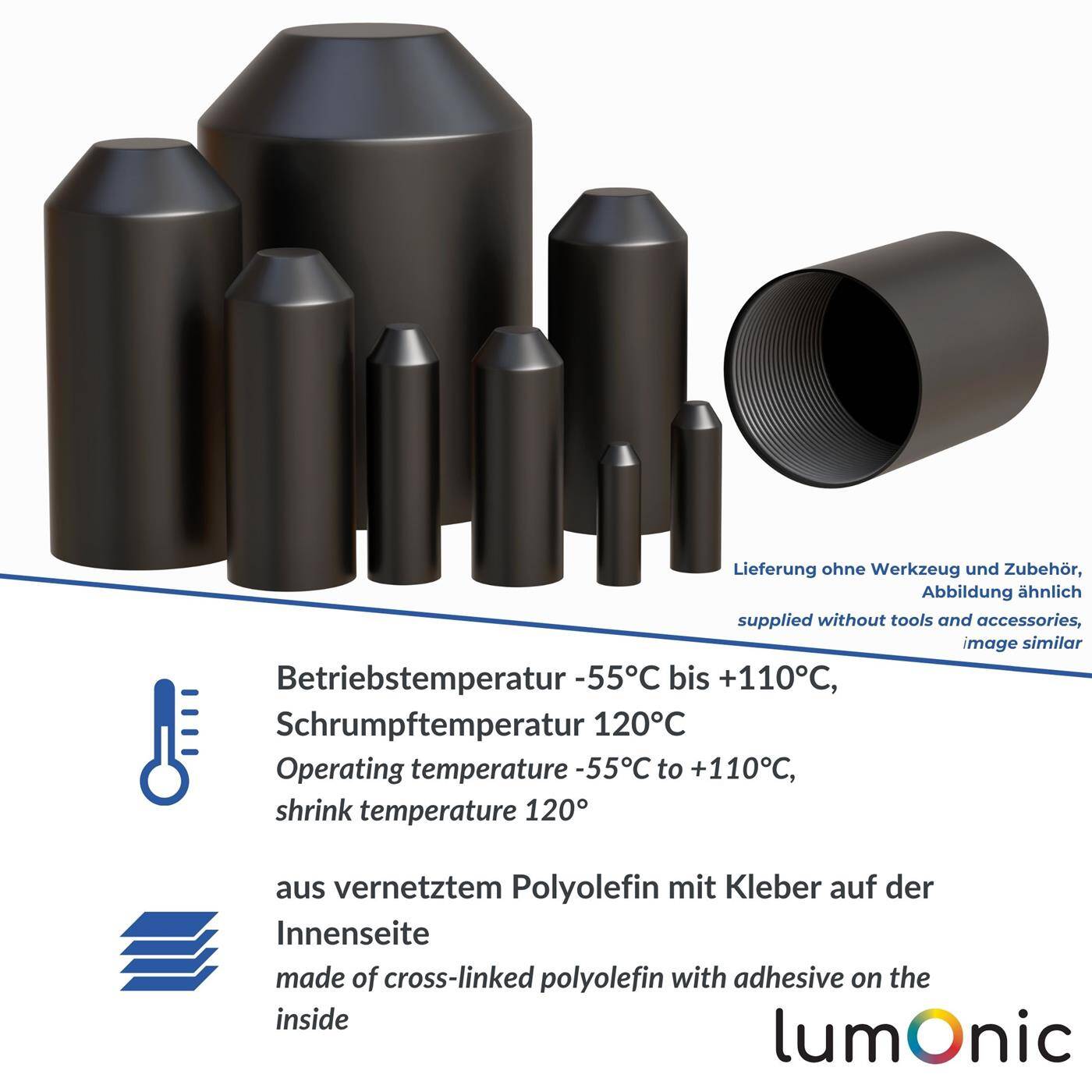

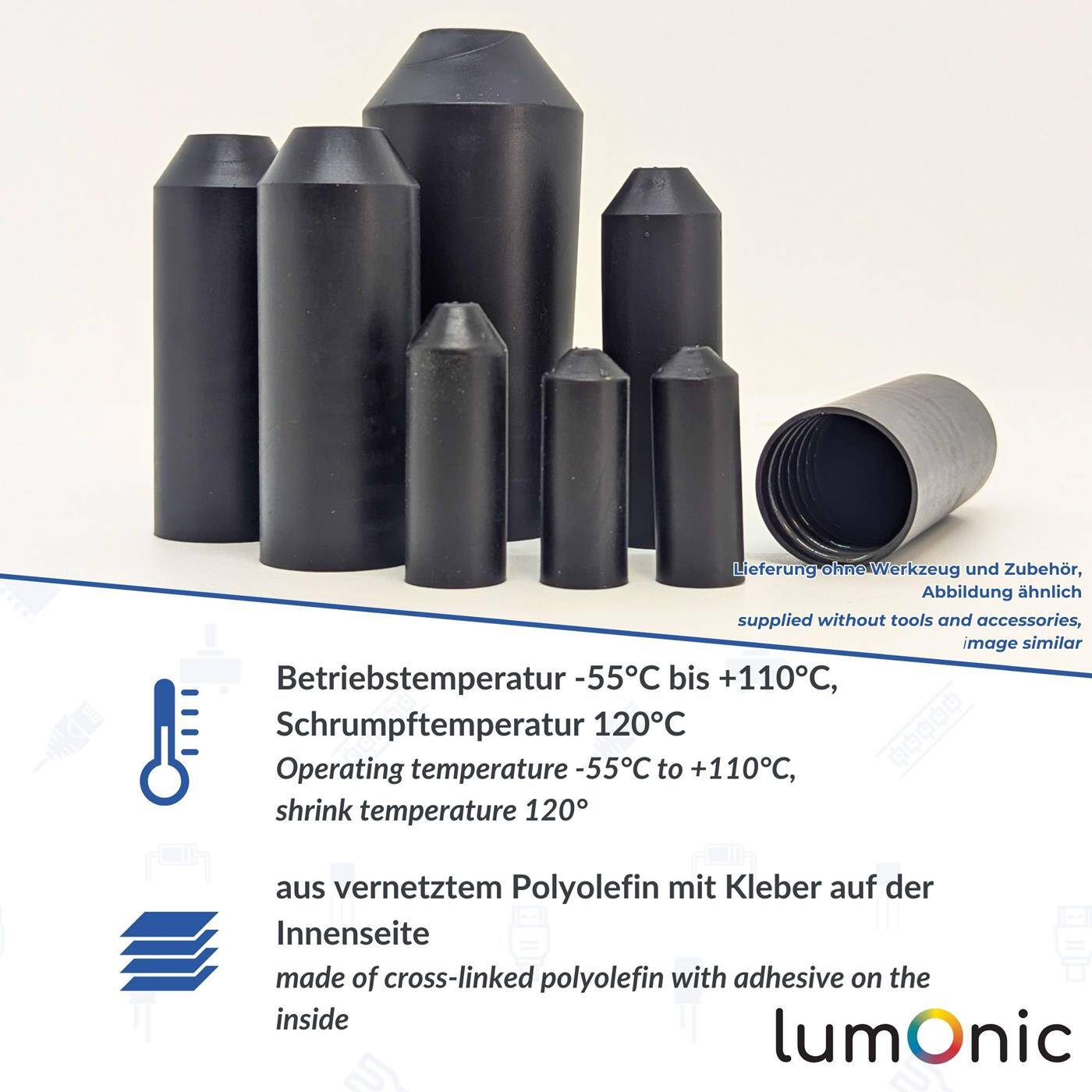

| ✔ PRODUCT FEATURES: Made from cross-linked polyolefin, the shrink-on end caps have an operating temperature of -55°C to +110°C and are UV-resistant. |

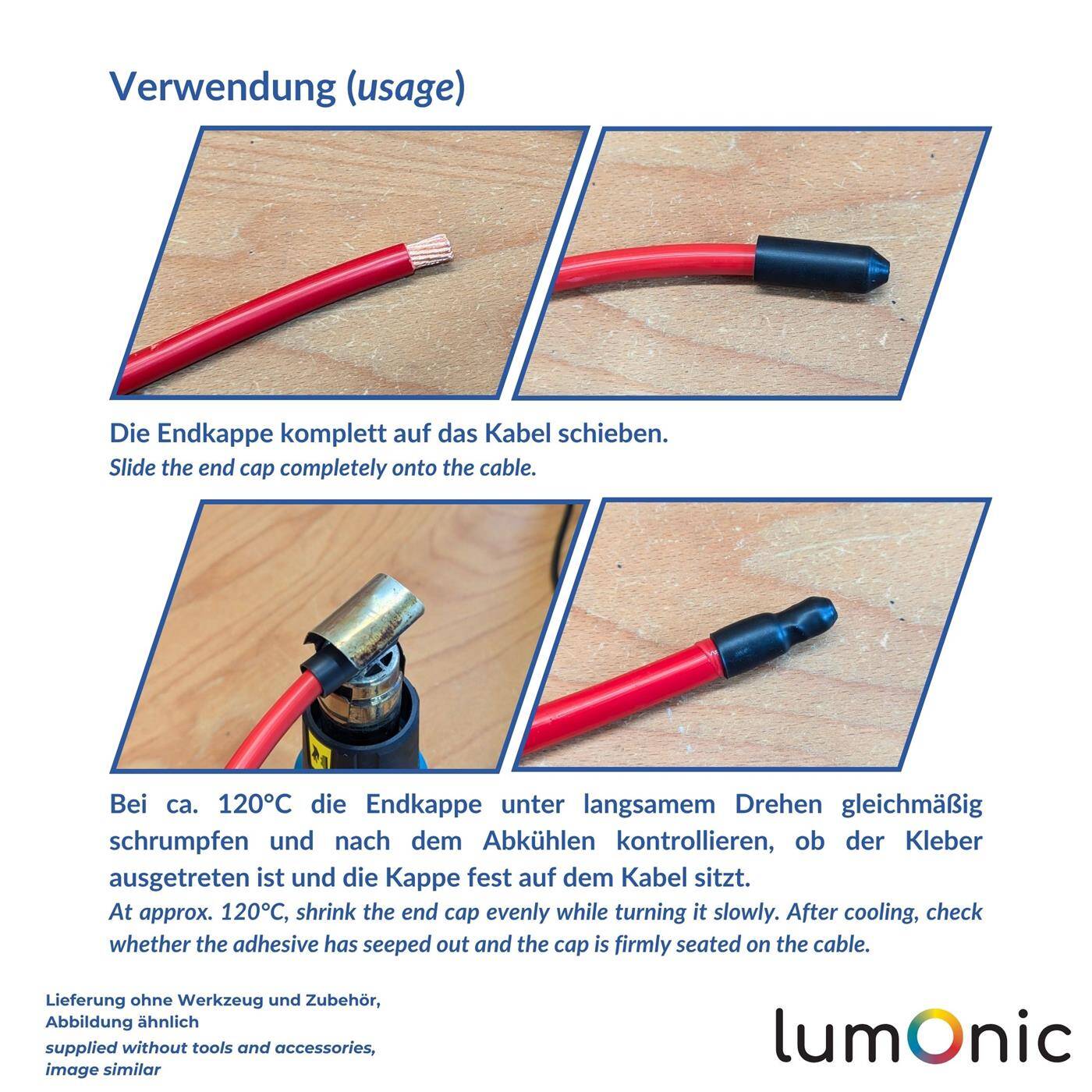

| ✔ SIMPLE APPLICATION: 1. place the end cap over the cable, pipe or rope, 2. shrink evenly from all sides with a hot air dryer at approx. 120°C while turning, 3. check for correct fit and bonding -> done. |

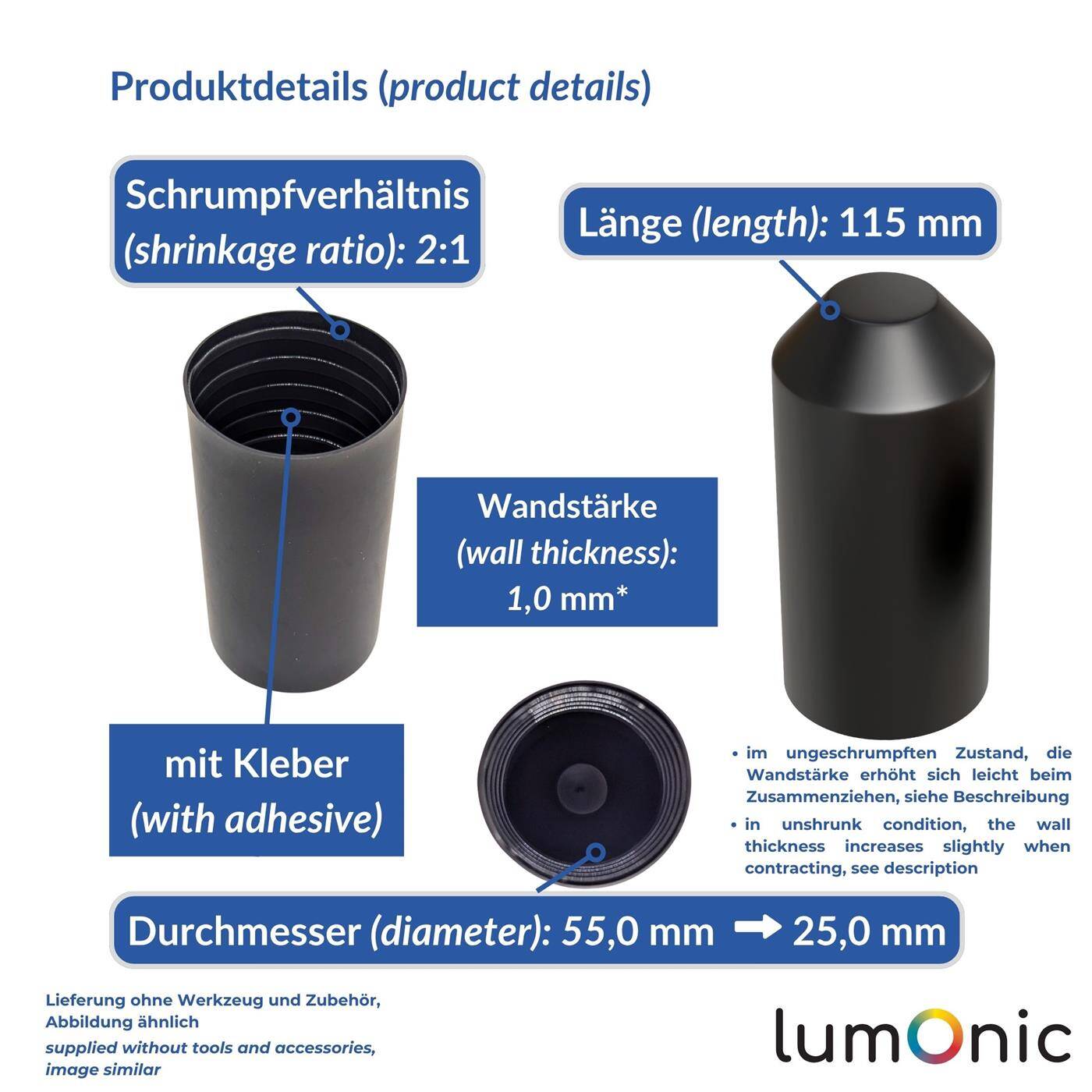

| ✔ Dimensions: The end cap is 115mm long, has an internal diameter of 55mm and can be shrunk down to 25mm. The wall thickness of the black shrink cap is 3.6mm when shrunk. |
Technical specifications
| Length: | 0,115m |
|---|---|
| Presentation: | loose |
| Shrinkage rate: | 2:1 |
| Colour: | Black |
| Inner diameter before shrinkage: | 55mm |
| Inner diameter after shrinkage: | 25mm |
| Adhesive: | with Adhesive |
| Material: | Cross-linked polyolefin |
| Wall thickness after shrinkage: | 3,6mm |
| Flame retardant: | Yes |
| Operating temperature: | -55°C...+110°C |
| Minimum shrink temperature: | +120°C |
