HDR-60-15 60W 15V 4A Din Rail power supply
Available, delivery time: 1-3 days
Article-No.:
IT-006155
Model:
HDR-60-15
Shipping weight:
0.19 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€19.50*
|
| 6 - 10 |
€19.11*
|
| 11 - 20 |
€18.72*
|
| 21 - 50 |
€18.53*
|
| 51 - 100 |
€18.33*
|
| From 101 |
€18.14*
|
Product description
| ✔ can be mounted directly on the DIN rail |
| ✔ slim design |
| ✔ Closed design, contact-protected screw connections |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Low idle power |
| ✔ LED indicator for power-on |
| ✔ Insulation class II |
Technical specifications
| Power supply type: | Din Rail power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 15V |
| Output current: | 4A |
| Power: | 60W |
| Input voltage (min...max): | 85...264VAC |
| Output voltage (min...max): | 13,5...18VDC |
| Efficiency: | 89% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

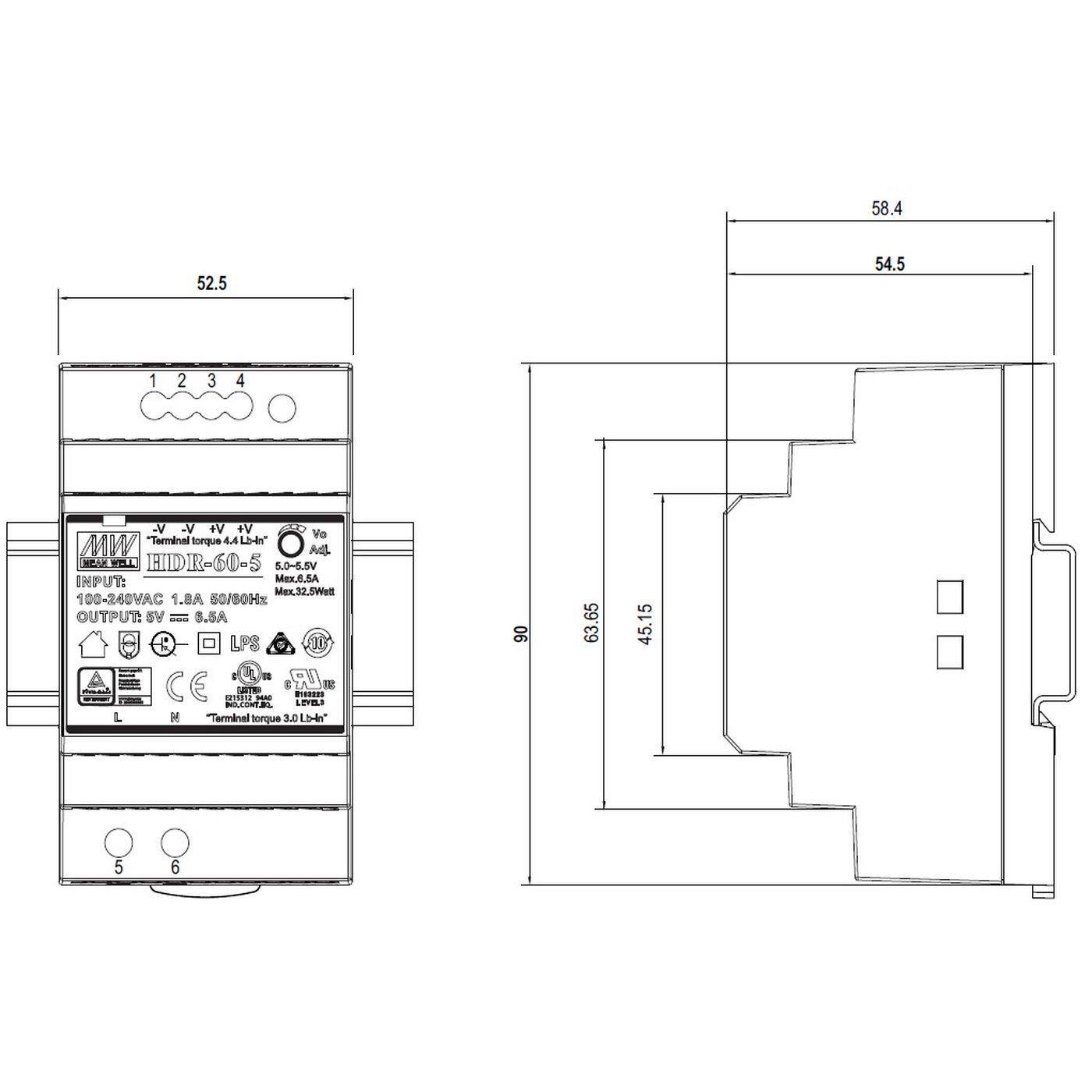

| Length: | 90mm |
| Width: | 52,5mm |
| Height: | 54,5mm |
