GPV-35-24 36W 24V 1,5A LED power supply Transformer Driver IP67
Available, delivery time: 1-3 days
Article-No.:
IT-007201
Model:
GPV-35-24
Shipping weight:
0.2 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€10.00*
|
| 6 - 10 |
€9.90*
|
| 11 - 20 |
€9.80*
|
| 21 - 50 |
€9.70*
|
| 51 - 100 |
€9.70*
|
| From 101 |
€9.70*
|
Product description
| ✔ Constant voltage power supply |
| ✔ Universal input 115V/230V |
| ✔ protected against short circuit, overcurrent and overvoltage |
| ✔ Cooling by free air circulation |
| ✔ Insulation class II |
| ✔ Class II power supply |
| ✔ fully encapsulated IP67 housing |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 1,5A |
| Power: | 36W |
| Input voltage (min...max): | 90...264VAC |
| Efficiency: | 84% |
| Protection class: | IP67 |
| Input connection: | Cable: 2x25cm |
| Connection Output: | Cable: 2x25cm |

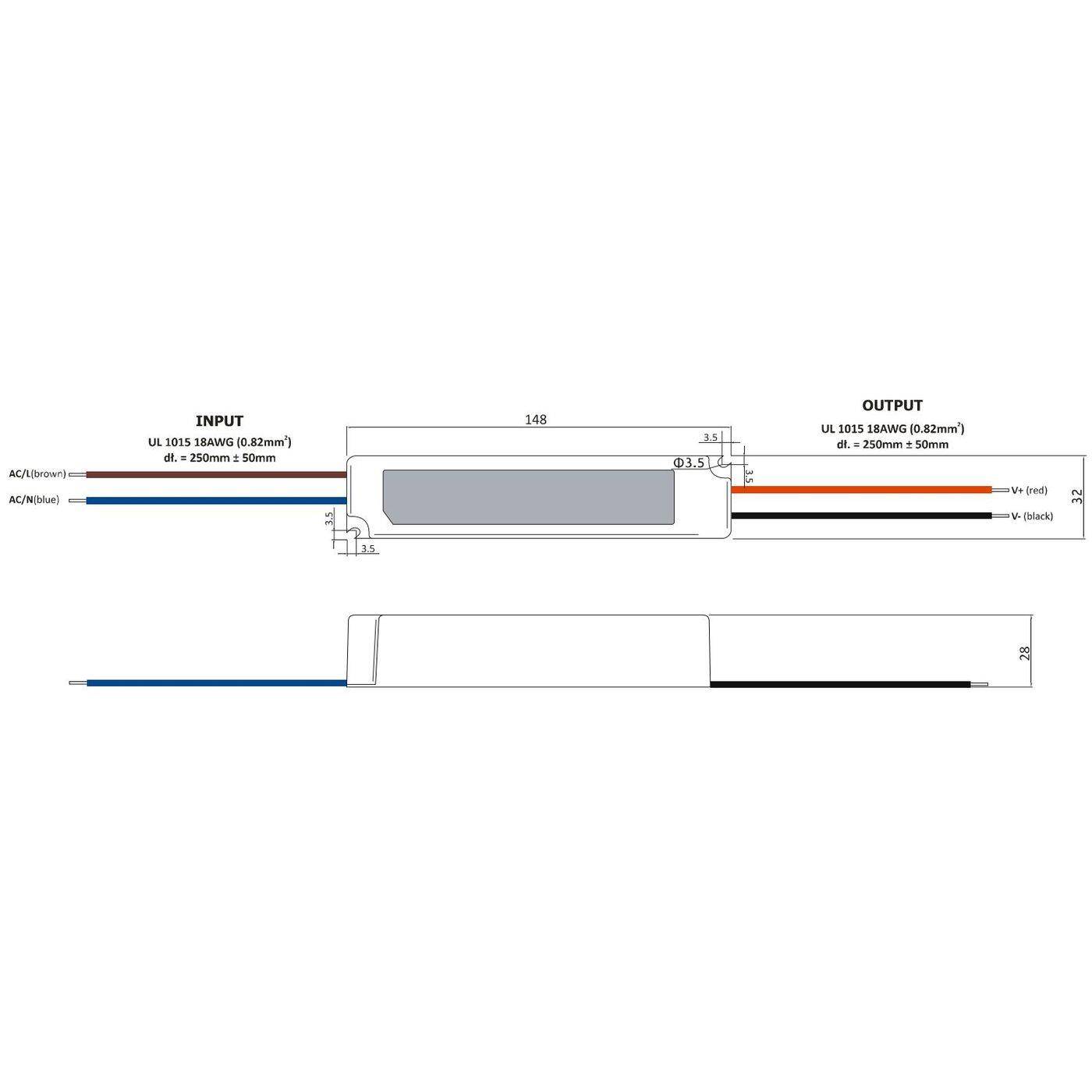

| Length: | 148mm |
| Width: | 32mm |
| Height: | 28mm |
