GPV-18-24 18W 24V 0,75A LED power supply Transformer Driver IP67
Available, delivery time: 1-3 days
Article-No.:
IT-007197
Model:
GPV-18-24
Shipping weight:
0.15 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€6.20*
|
| 6 - 10 |
€6.08*
|
| 11 - 20 |
€5.95*
|
| 21 - 50 |
€5.89*
|
| 51 - 100 |
€5.83*
|
| From 101 |
€5.77*
|
Product description
| ✔ Constant voltage power supply |
| ✔ European AC input range (230V) |
| ✔ protected against short circuit and overcurrent |
| ✔ Cooling by free air circulation |
| ✔ Insulation class II |
| ✔ Class II power supply |
| ✔ fully encapsulated IP67 housing |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 0,75A |
| Power: | 18W |
| Input voltage (min...max): | 180...264VAC |
| Efficiency: | 84% |
| Protection class: | IP67 |

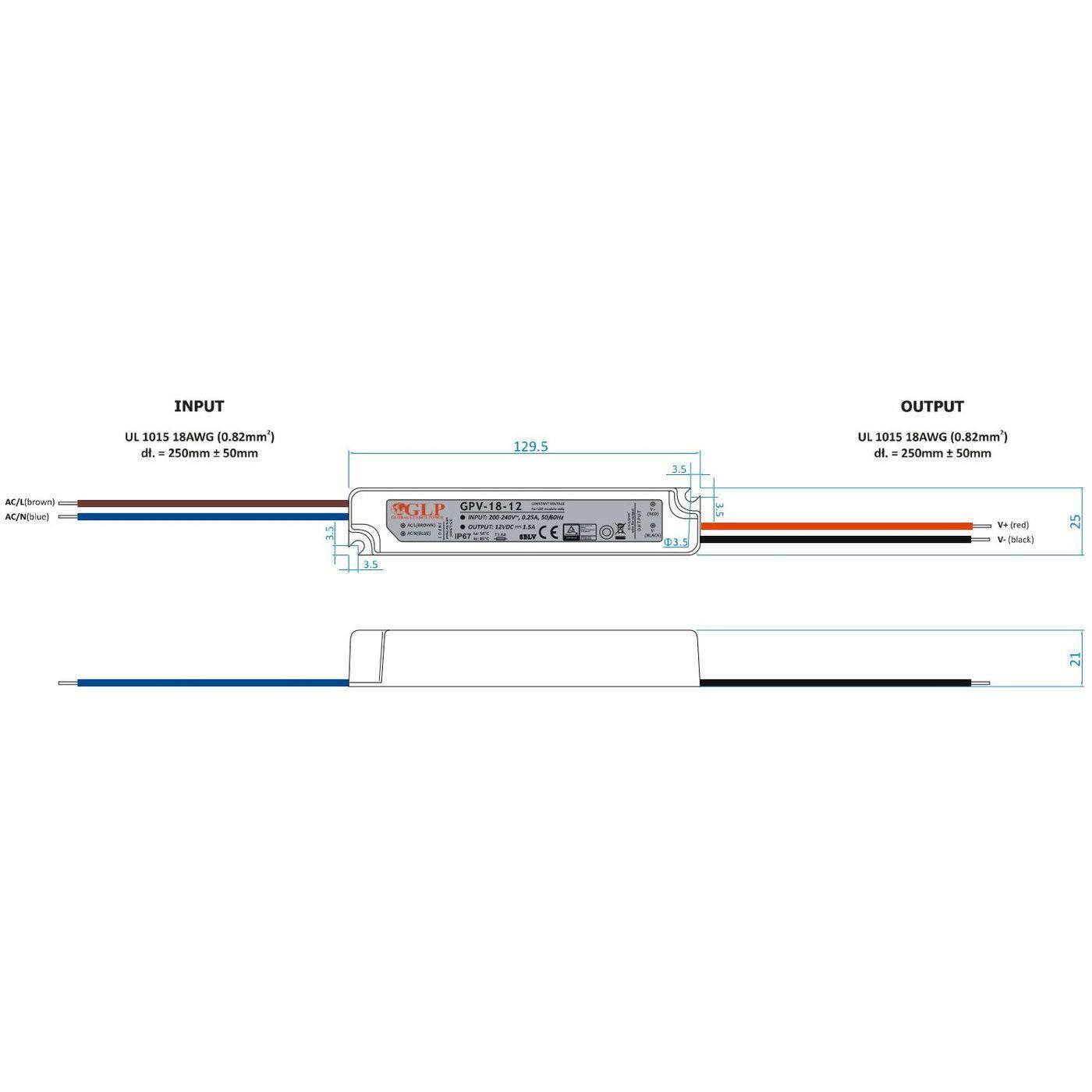

| Input connection: | Cable: 2x25cm |
| Connection Output: | Cable: 2x25cm |
| Length: | 129,5mm |
| Width: | 25mm |
| Height: | 21mm |
