GPV-150-12 120W 12V 10A LED power supply Transformer Driver IP67
Available, delivery time: 1-3 days
Article-No.:
IT-007211
Model:
GPV-150-12
Shipping weight:
1.15 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
Product description
| ✔ Constant voltage power supply |
| ✔ European AC input range (230V) |
| ✔ protected against short circuit, overcurrent, overvoltage and high temperature |
| ✔ Cooling by free air circulation |
| ✔ Insulation class II |
| ✔ Class II power supply |
| ✔ fully encapsulated IP67 housing |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 12V |
| Output current: | 10A |
| Power: | 120W |
| Input voltage (min...max): | 180...264VAC |
| Efficiency: | 87% |
| Protection class: | IP67 |
| Input connection: | Cable: 2x30cm |
| Connection Output: | Cable: 2x30cm |

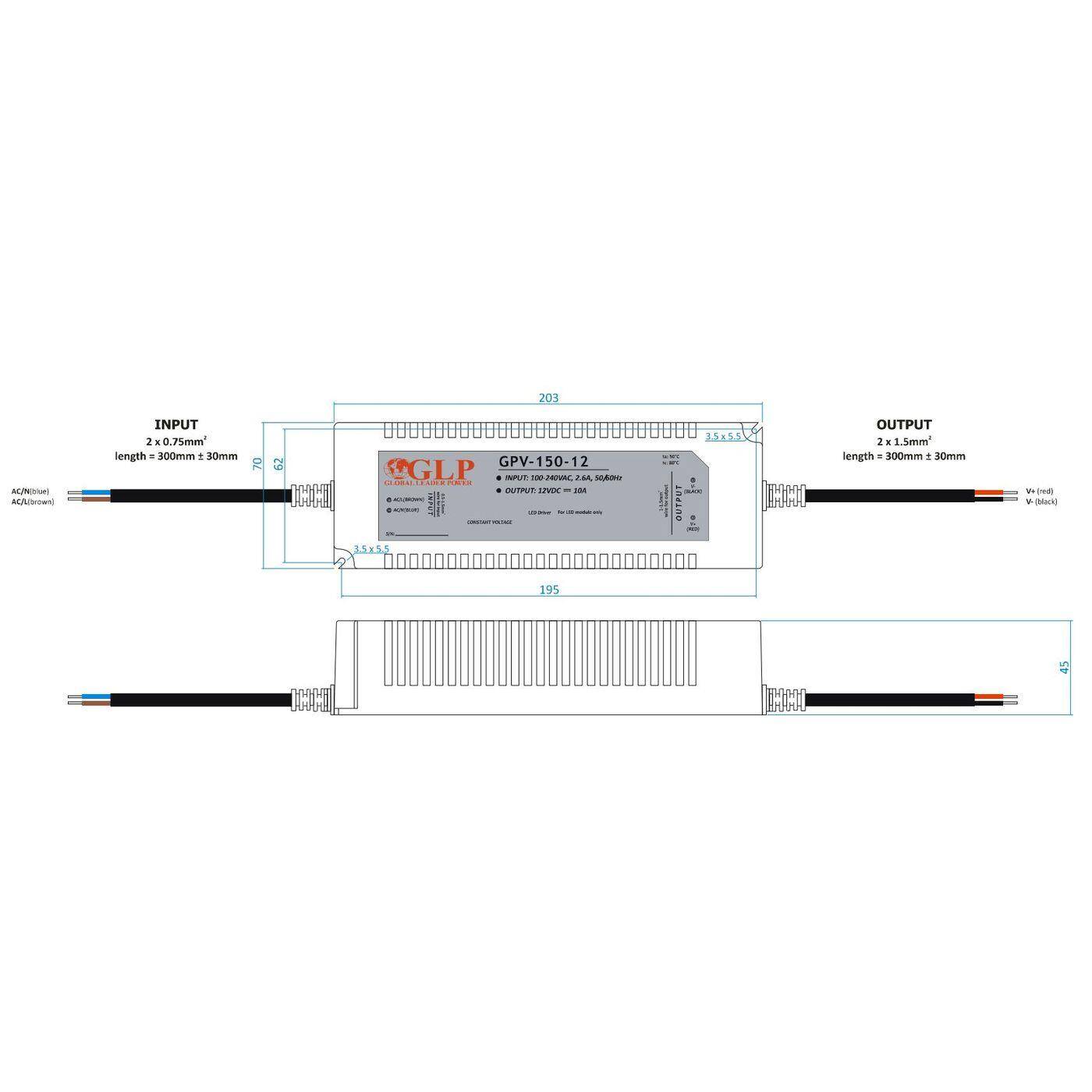

| Length: | 203mm |
| Width: | 70mm |
| Height: | 45mm |
