ELG-240-48DA-3Y 240W 48V 5A LED power supply Transformer Driver IP67 Dimmable DALI PWM
Available, delivery time: 1-3 days
Article-No.:
IT-009477
Model:
ELG-240-48DA-3Y
Shipping weight:
1.22 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€55.00*
|
| 6 - 10 |
€54.45*
|
| 11 - 20 |
€53.90*
|
| 21 - 50 |
€53.35*
|
| 51 - 100 |
€53.35*
|
| From 101 |
€53.35*
|
Product description
| ✔ Constant current and constant voltage |
| ✔ Independent operating device |
| ✔ Metal housing |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage, overtemperature |
| ✔ built-in PFC circuit |
| ✔ suitable for LED lighting applications |
| ✔ Safety standards: EN61347-1, EN61347-2-13 and others |
| ✔ EMC standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others |
| ✔ Equivalent to 6kV Surge Immunity Level |
| ✔ 5 years manufacturer warranty |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 5A |
| Power: | 240W |
| Input voltage (min...max): | 100...305VAC |
| Output voltage (min...max): | 44,8...51,2VDC |
| Efficiency: | 93% |
| Dimmable: | DALI |
| Protection class: | IP67 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm (Power), 2x30cm (DIM) |

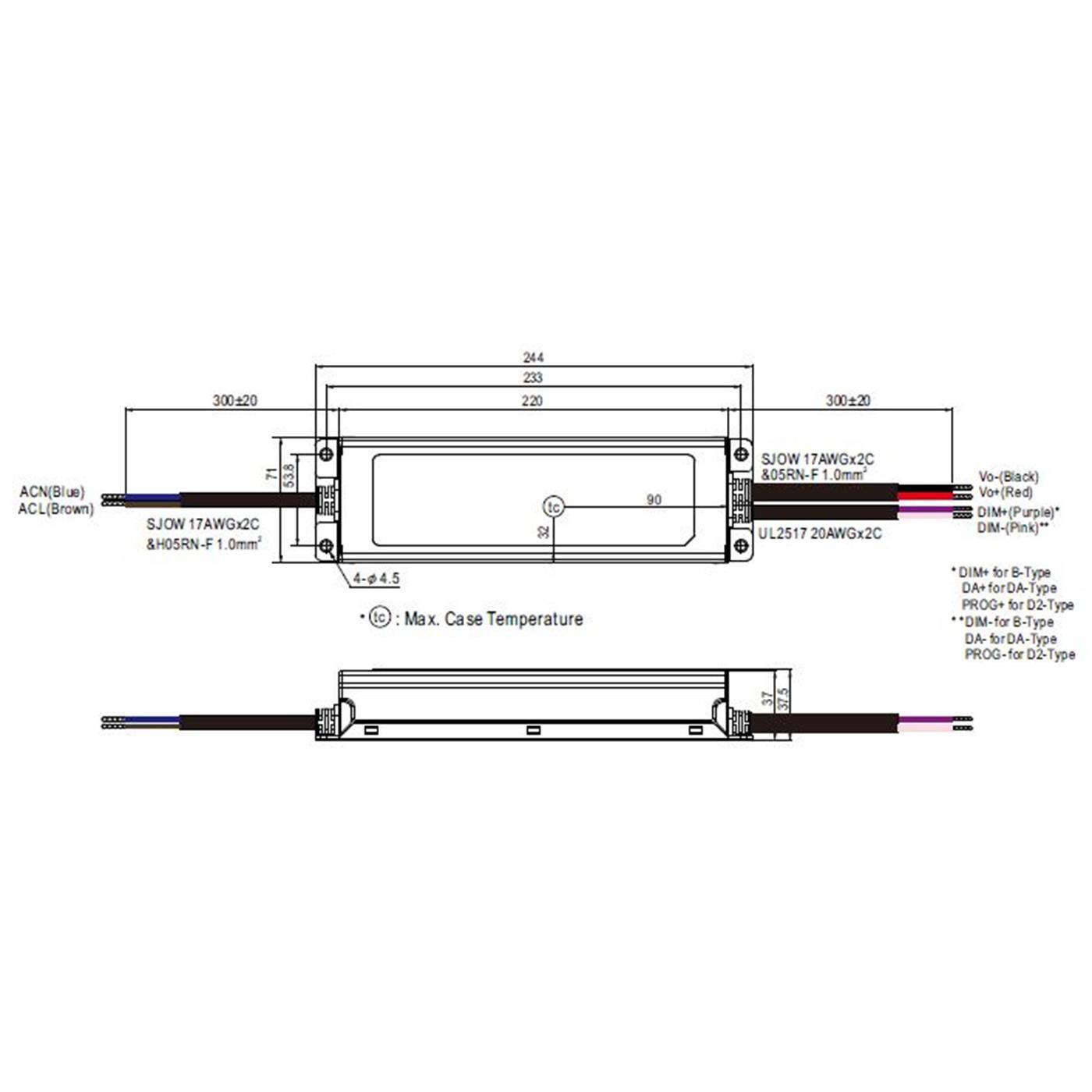

| Length: | 244mm |
| Width: | 71mm |
| Height: | 37,5mm |
