ELG-240-48B-3Y 240W 48V 5A LED power supply Transformer Driver IP67 Dimmable 0-10V PWM
Available, delivery time: 1-3 days
Article-No.:
IT-009475
Model:
ELG-240-48B-3Y
Shipping weight:
1.22 kg
Shipping Zone:
70
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€55.00*
|
| 6 - 10 |
€54.45*
|
| 11 - 20 |
€53.90*
|
| 21 - 50 |
€53.35*
|
| 51 - 100 |
€53.35*
|
| From 101 |
€53.35*
|
Product description
| ✔ Constant current and constant voltage |
| ✔ Independent operating device |
| ✔ Metal housing |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage, overtemperature |
| ✔ built-in PFC circuit |
| ✔ suitable for LED lighting applications |
| ✔ Safety standards: EN61347-1, EN61347-2-13 and others |
| ✔ EMC standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others |
| ✔ Equivalent to 6kV Surge Immunity Level |
| ✔ 5 years manufacturer warranty |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 48V |
| Output current: | 5A |
| Power: | 240W |
| Input voltage (min...max): | 100...305VAC |
| Output voltage (min...max): | 44,8...51,2VDC |
| Efficiency: | 93% |
| Dimmable: | 0-10V |
| Protection class: | IP67 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm (Power), 2x30cm (DIM) |

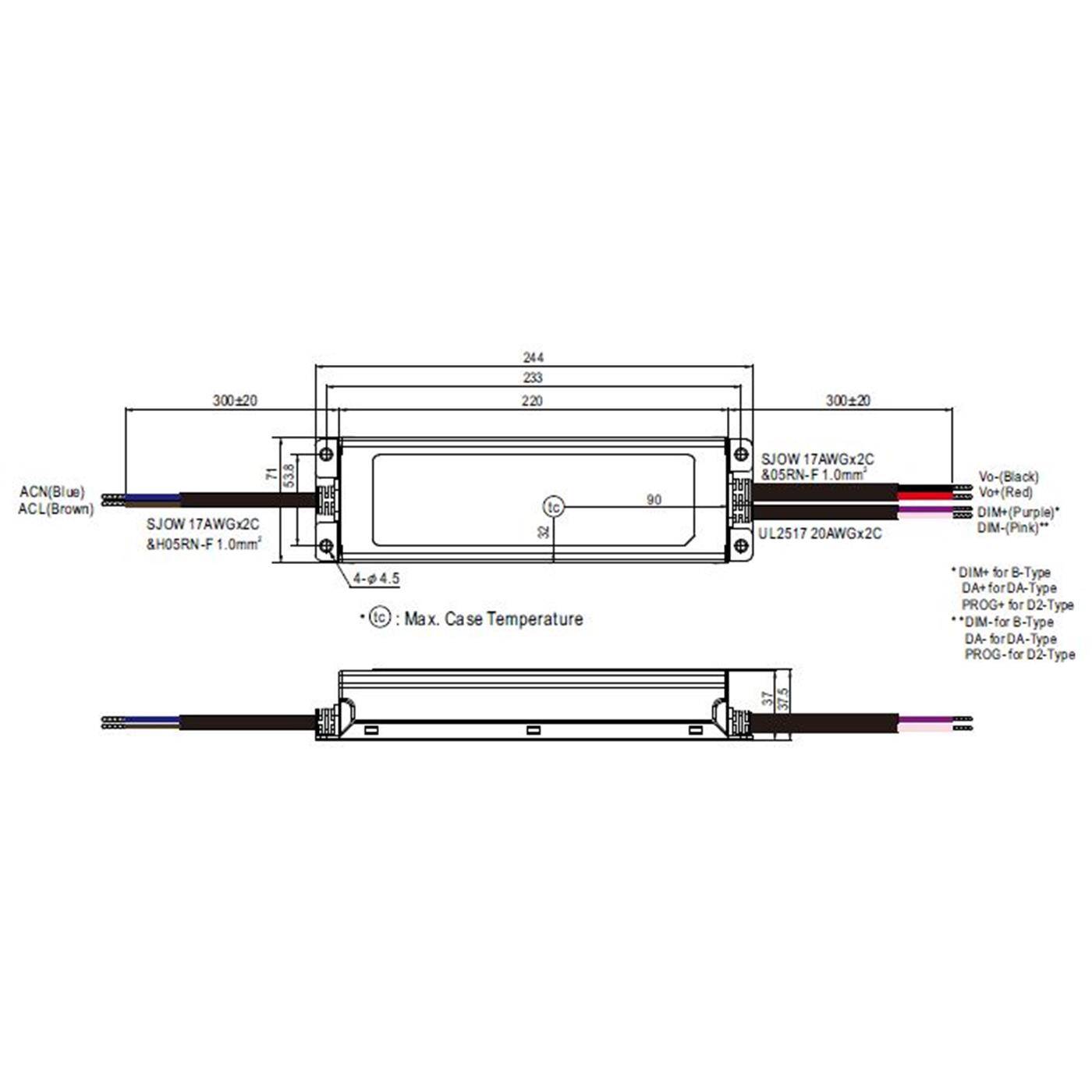

| Length: | 244mm |
| Width: | 71mm |
| Height: | 37,5mm |
Ihr Produktverlauf

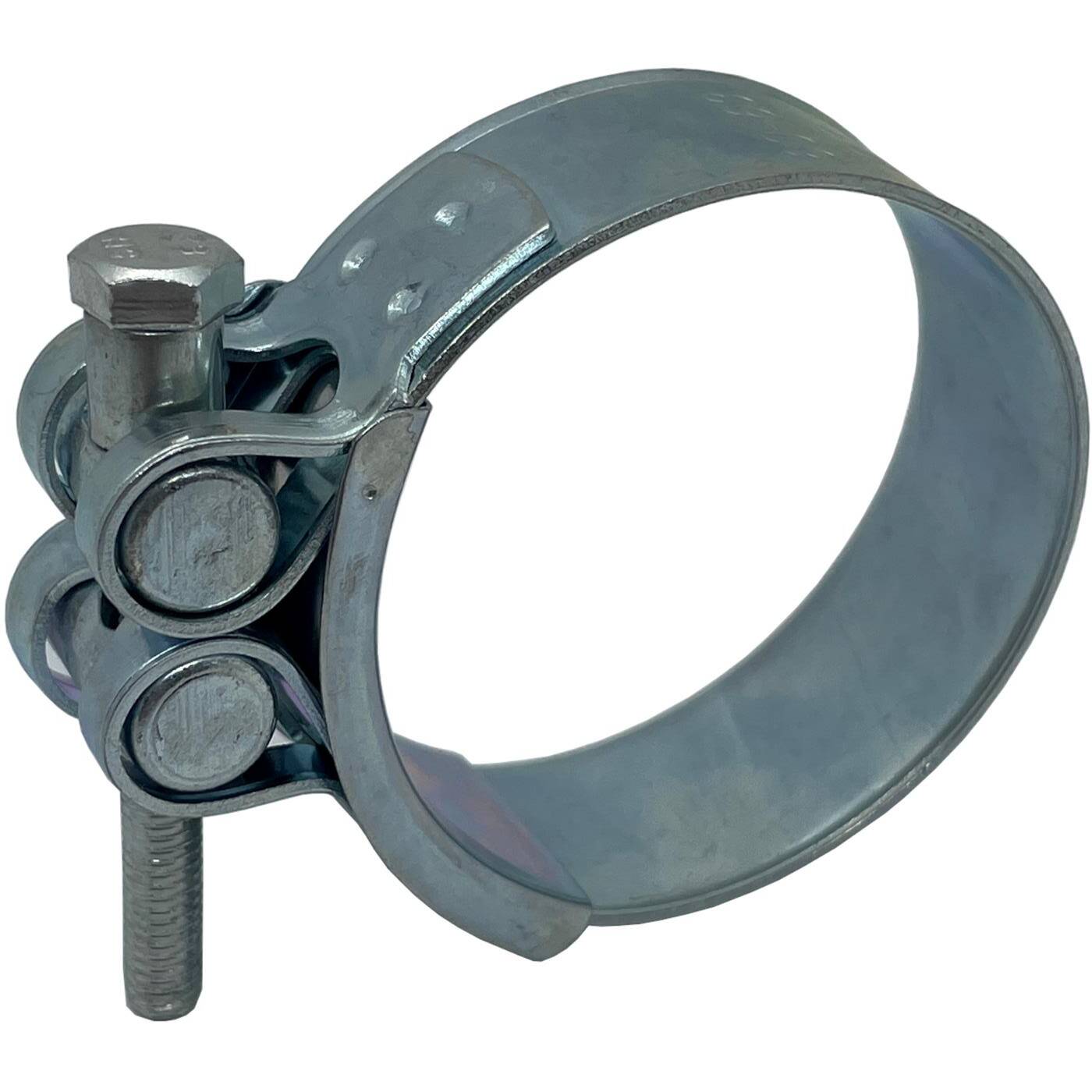

10x Lumonic Hinge pin clamp Stainless steel 60-63mm V2A Exhaust clamp for construction cars trucks
€13.20*
(€1.28* / Stück)
incl. VAT
plus shipping costs

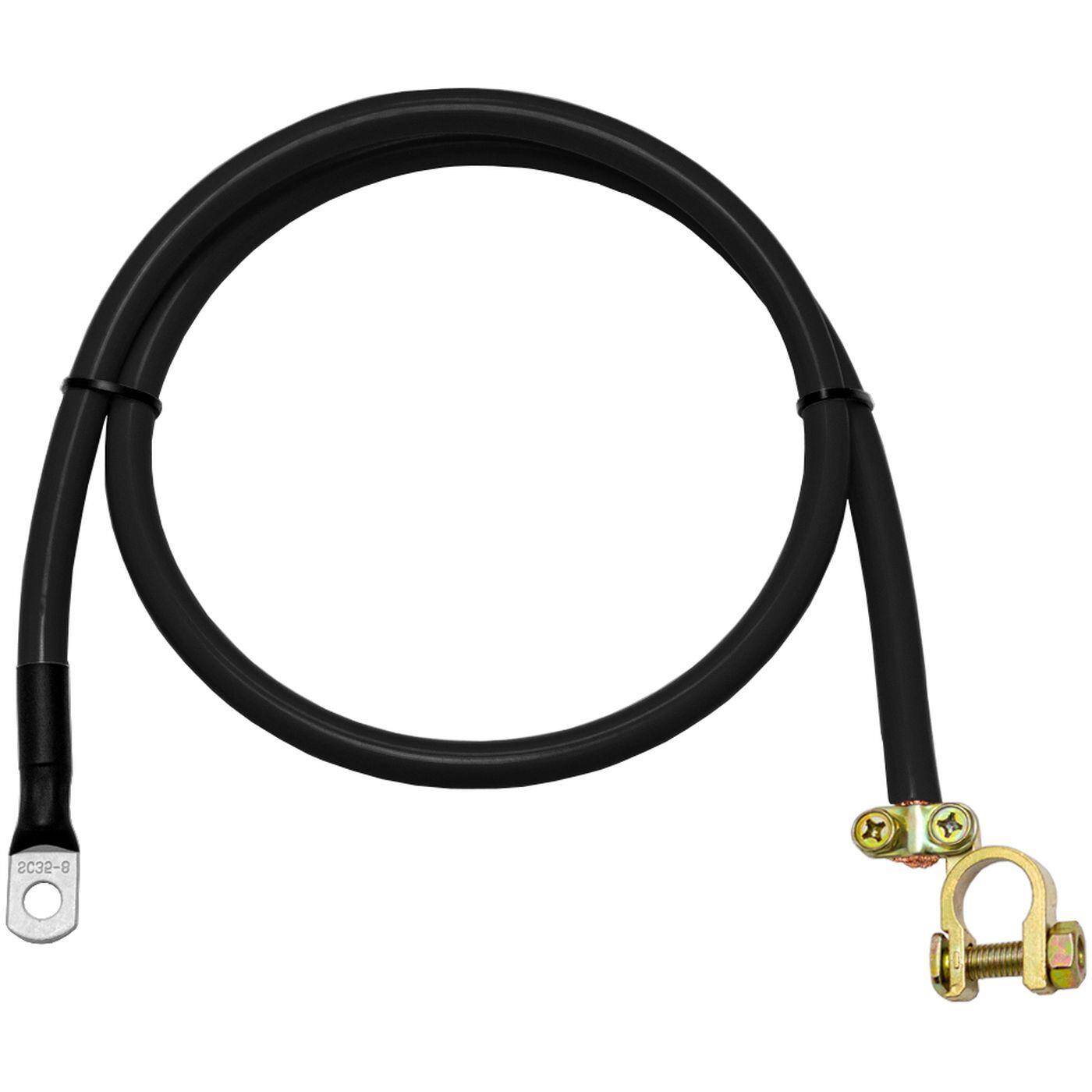

2m Battery cable Earth cable 16mm² Black CAR Power cable Tubular cable lug M8 + Pole terminal 200cm
€16.20*
incl. VAT
plus shipping costs

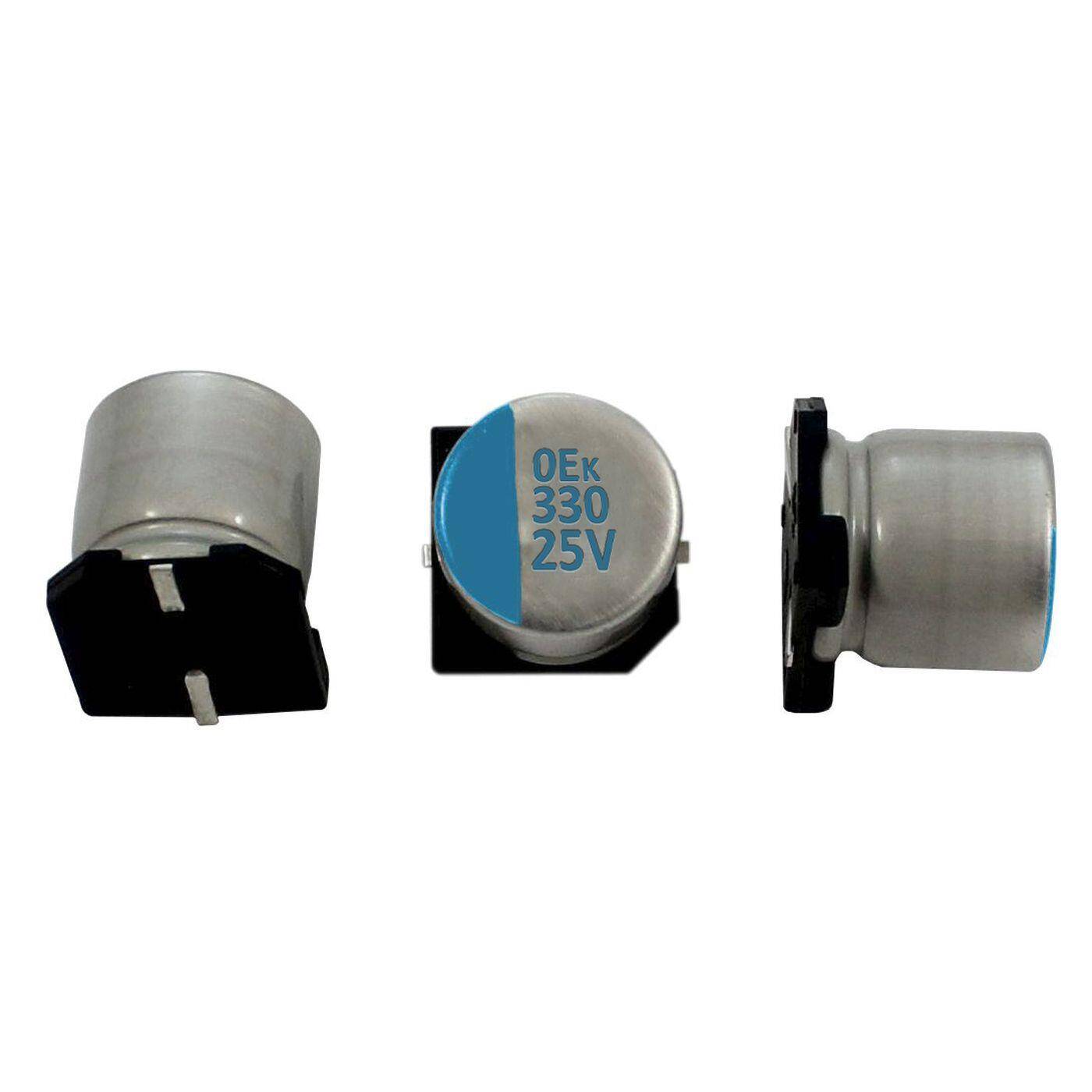

SMD Elko Capacitor 330µF 25V 125°C 10x10mm HVK-25V331MH10STQ-R2 330uF
€0.32*
incl. VAT
plus shipping costs

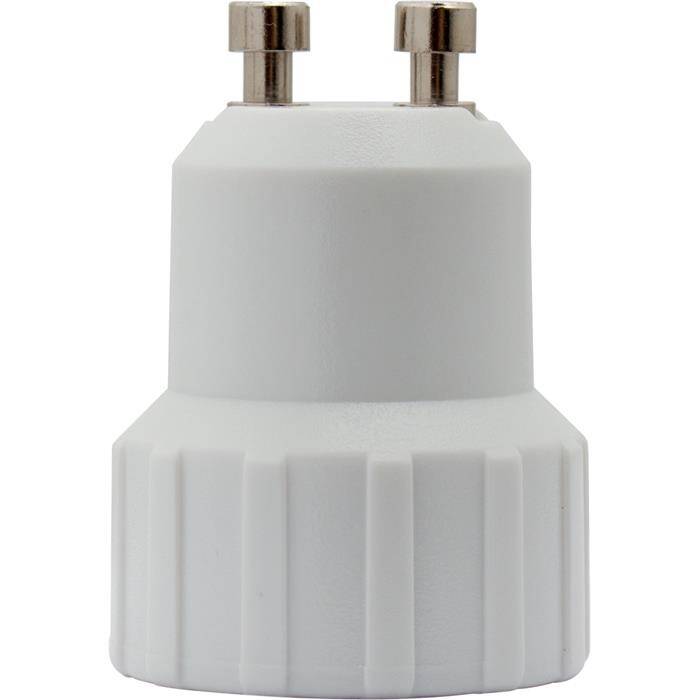

5x GU10 -> E14 LED Lamp socket Adapter Socket Converter Lamp
€2.80*
(€0.56* / Stück)
incl. VAT
plus shipping costs

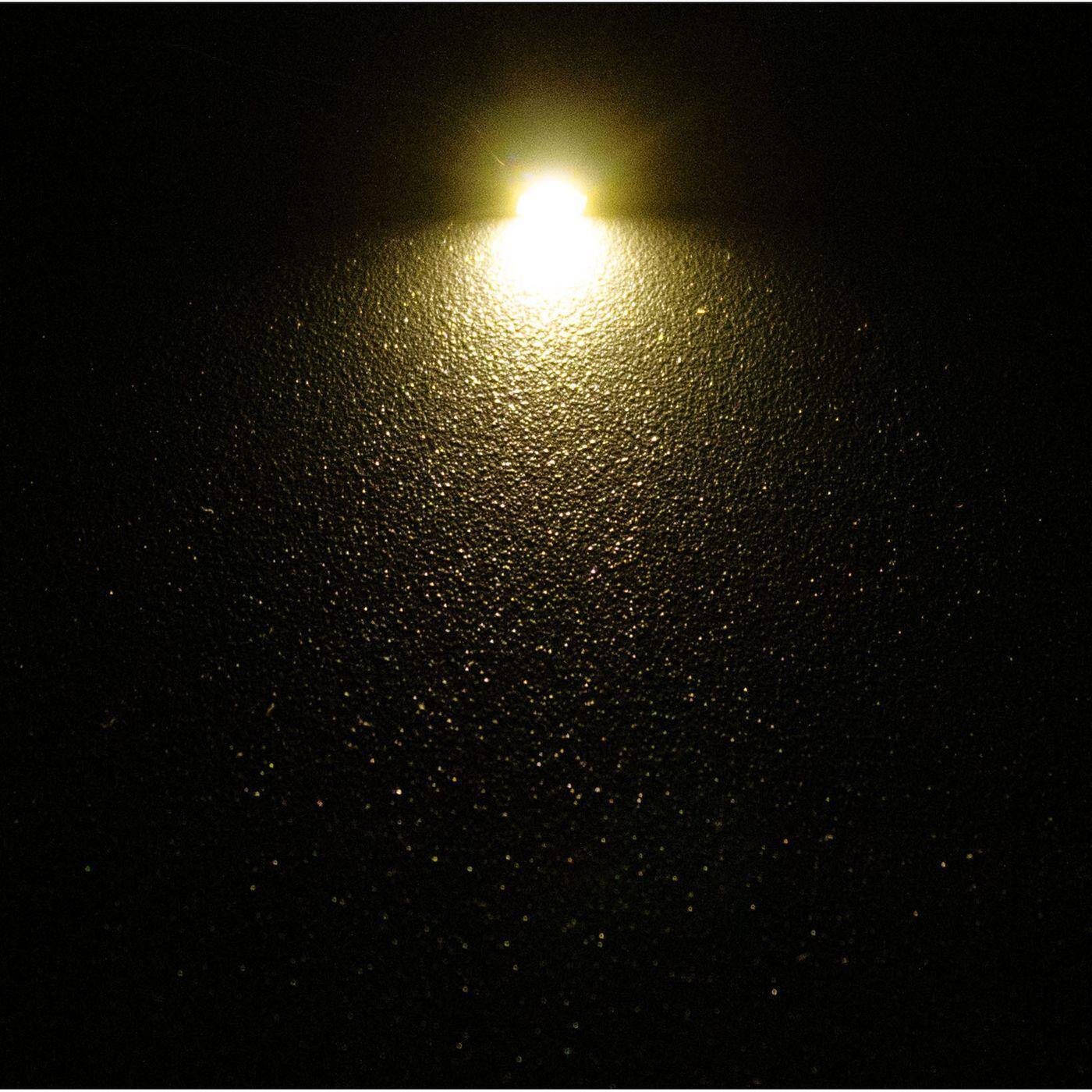

10x Superbright LEDs SMD 0805 Warm White with Enamelled copper wire 20cm + 12V Series resistor
€4.20*
(€0.39* / Stück)
incl. VAT
plus shipping costs

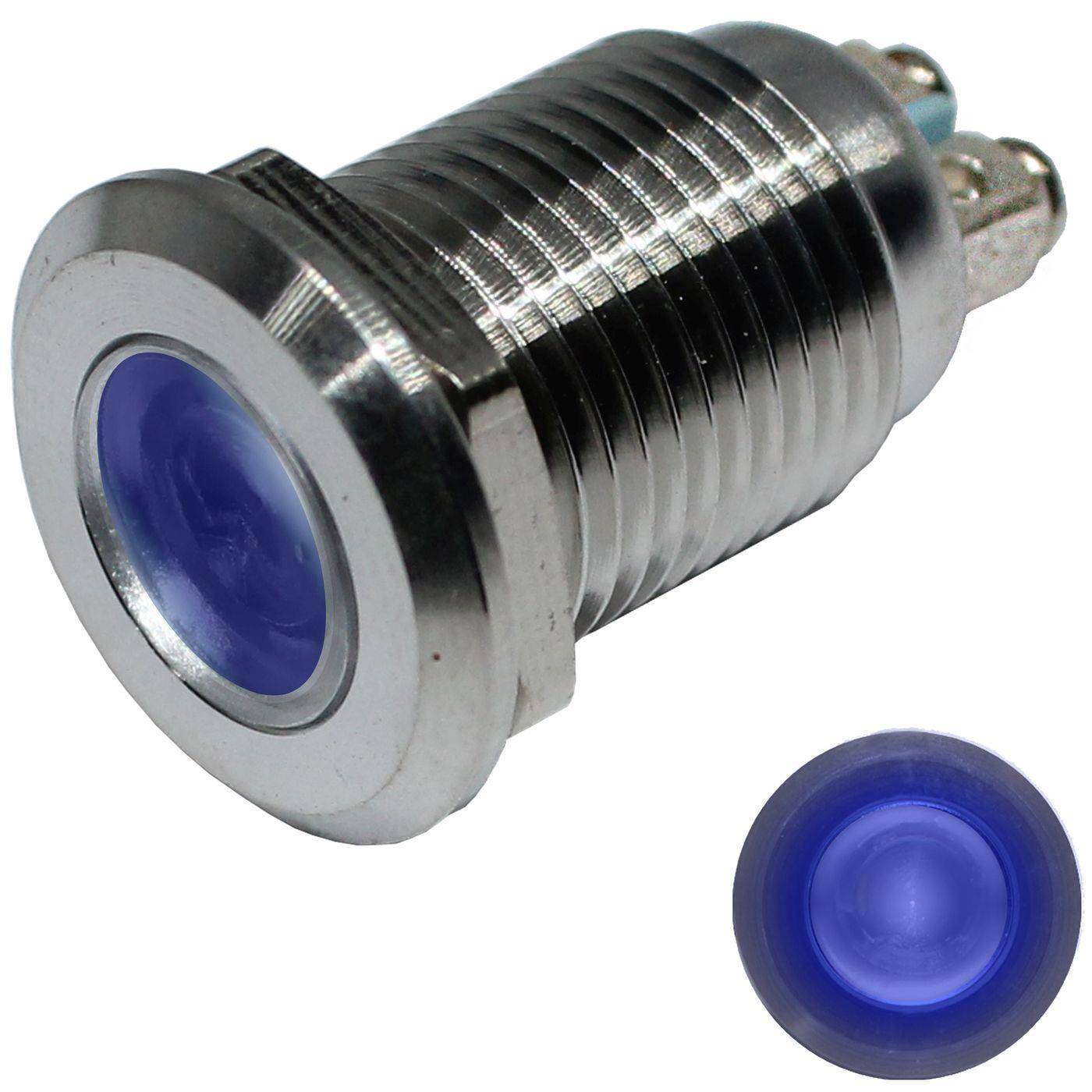

Stainless steel Control lamp V2A Signal lamp Ø16mm LED Blue IP67 Screw Connection Ø18x25mm -25...+70°C
€2.40*
incl. VAT
plus shipping costs
M12x95mm Heavy duty anchor V4A Stainless steel Wedge anchor Heavy Duty Anchor Wedge anchor Lightning dowel
€3.30*
incl. VAT
plus shipping costs

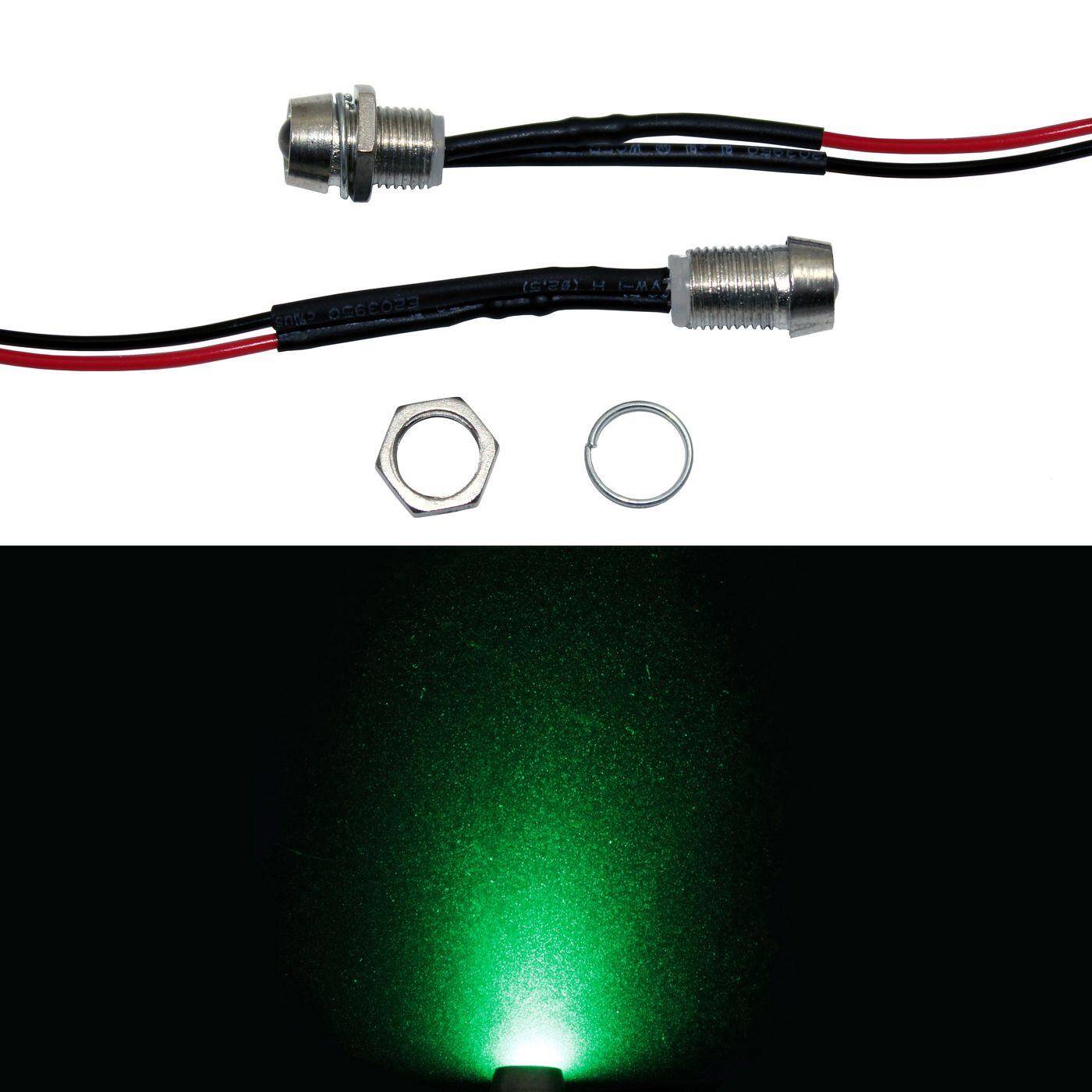

10x Superbright signal screw LEDs Green 12V 20cm Cable 15000…20000mcd 45°
€5.00*
(€0.47* / Stück)
incl. VAT
plus shipping costs

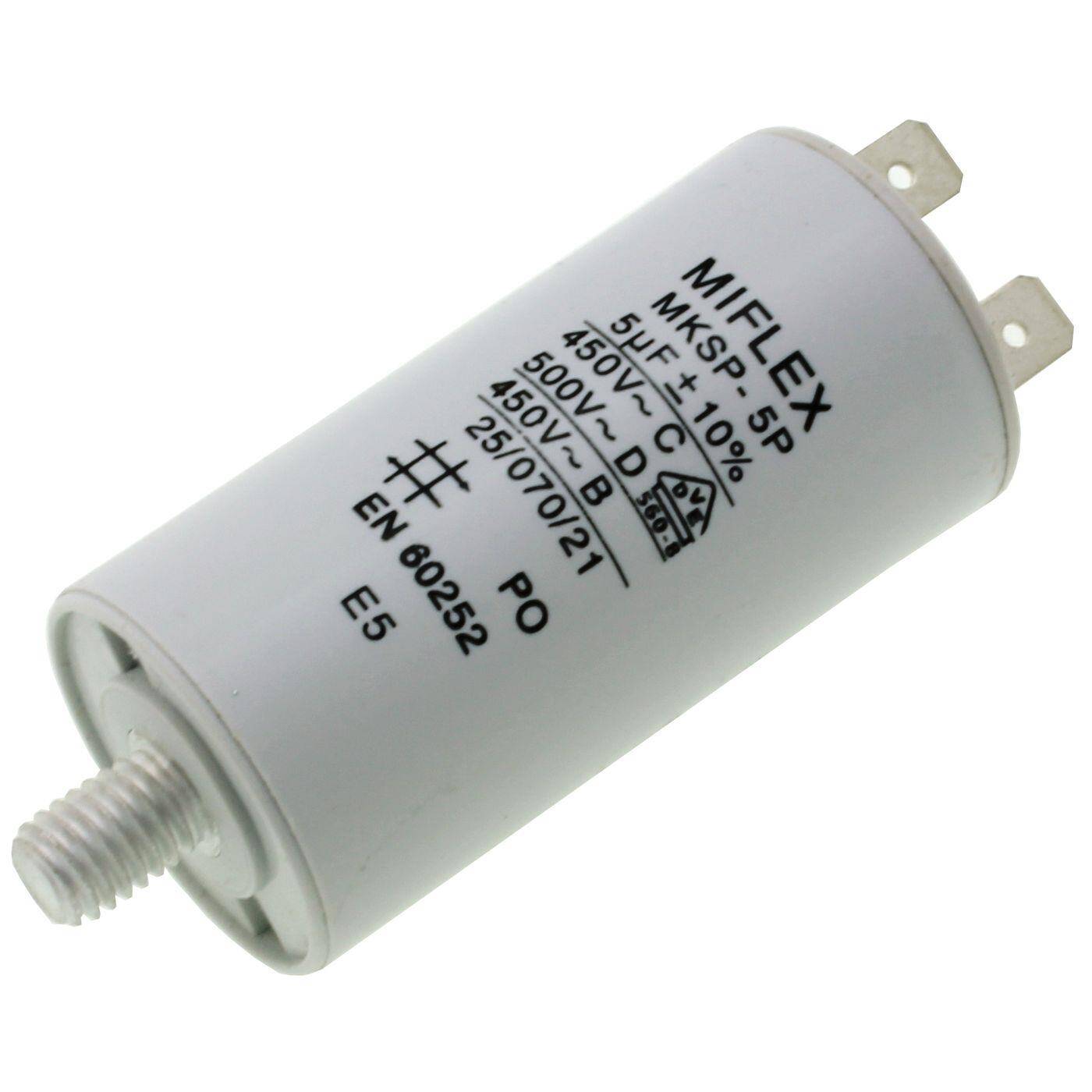

Starting capacitor Motor capacitor 5µF 450V 30x58mm Plug 6,3x0,8mm Miflex 5uF
€3.50*
incl. VAT
plus shipping costs
1m Battery cable Plus cable 25mm² Red CAR Power cable Tubular cable lug M8 + Pole terminal 100cm
€14.80*
incl. VAT
plus shipping costs

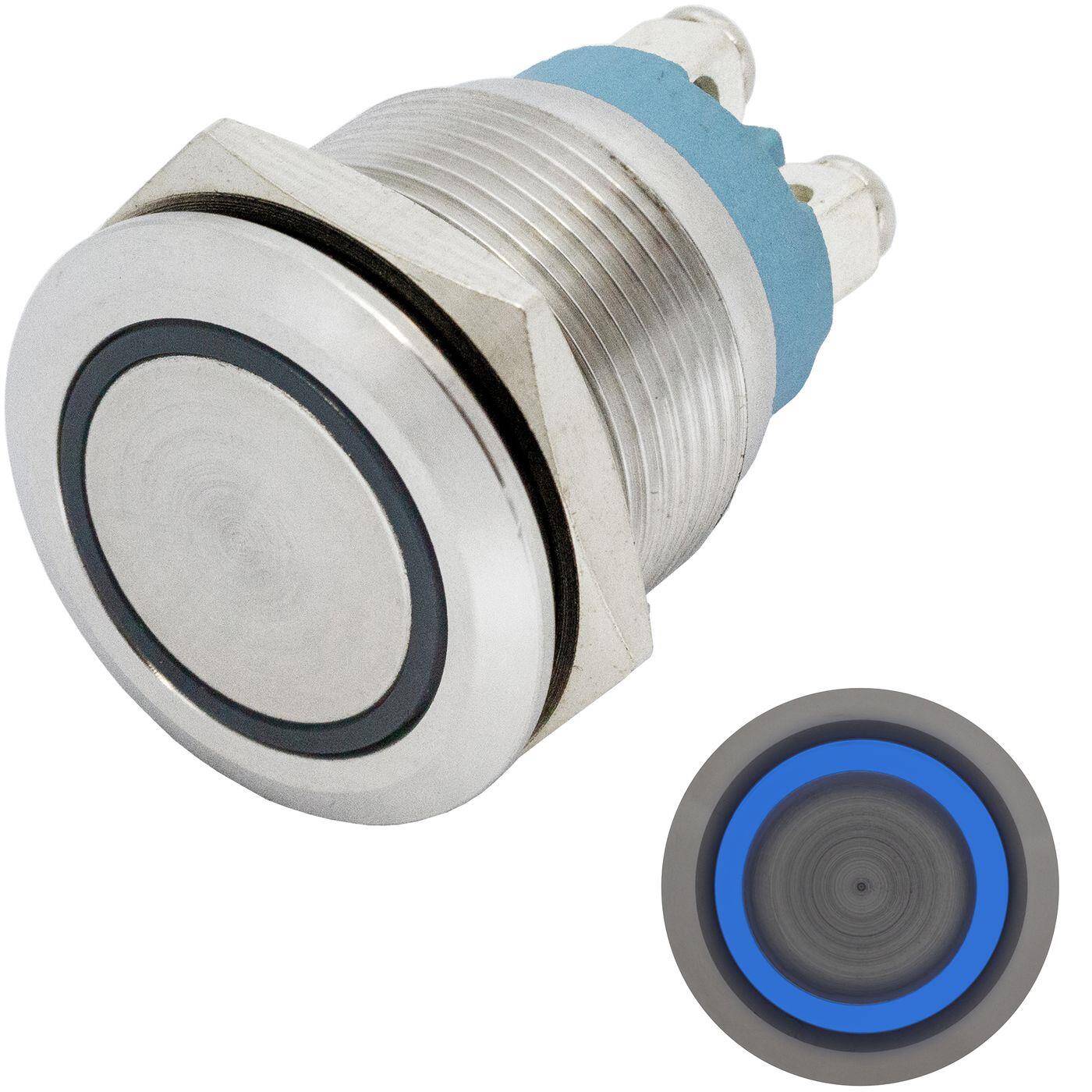

Stainless steel Push button Flat Ø19mm Ring LED Blue IP65 Screw Connection 250V 3A Vandal-proof
