ELG-100-24B-3Y 96W 24V 4A LED power supply Transformer Driver IP67 Dimmable 0-10V PWM
Available, delivery time: 1-3 days
Article-No.:
IT-009455
Model:
ELG-100-24B-3Y
Shipping weight:
0.85 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€35.00*
|
| 6 - 10 |
€34.65*
|
| 11 - 20 |
€34.30*
|
| 21 - 50 |
€33.95*
|
| 51 - 100 |
€33.95*
|
| From 101 |
€33.95*
|
Product description
| ✔ Constant current and constant voltage |
| ✔ Independent operating device |
| ✔ Metal housing |
| ✔ Wide range input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage, overtemperature |
| ✔ built-in PFC circuit |
| ✔ suitable for LED lighting applications |
| ✔ SELV compliant |
| ✔ Safety standards: EN61347-1, EN61347-2-13 and others |
| ✔ EMC standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 24V |
| Output current: | 4A |
| Power: | 96W |
| Input voltage (min...max): | 100...305VAC |
| Output voltage (min...max): | 21,6...26,4VDC |
| Efficiency: | 70% |
| Dimmable: | 0-10V |
| Protection class: | IP67 |
| Input connection: | Cable: 3x30cm |
| Connection Output: | Cable: 2x30cm (Power), 2x30cm (DIM) |

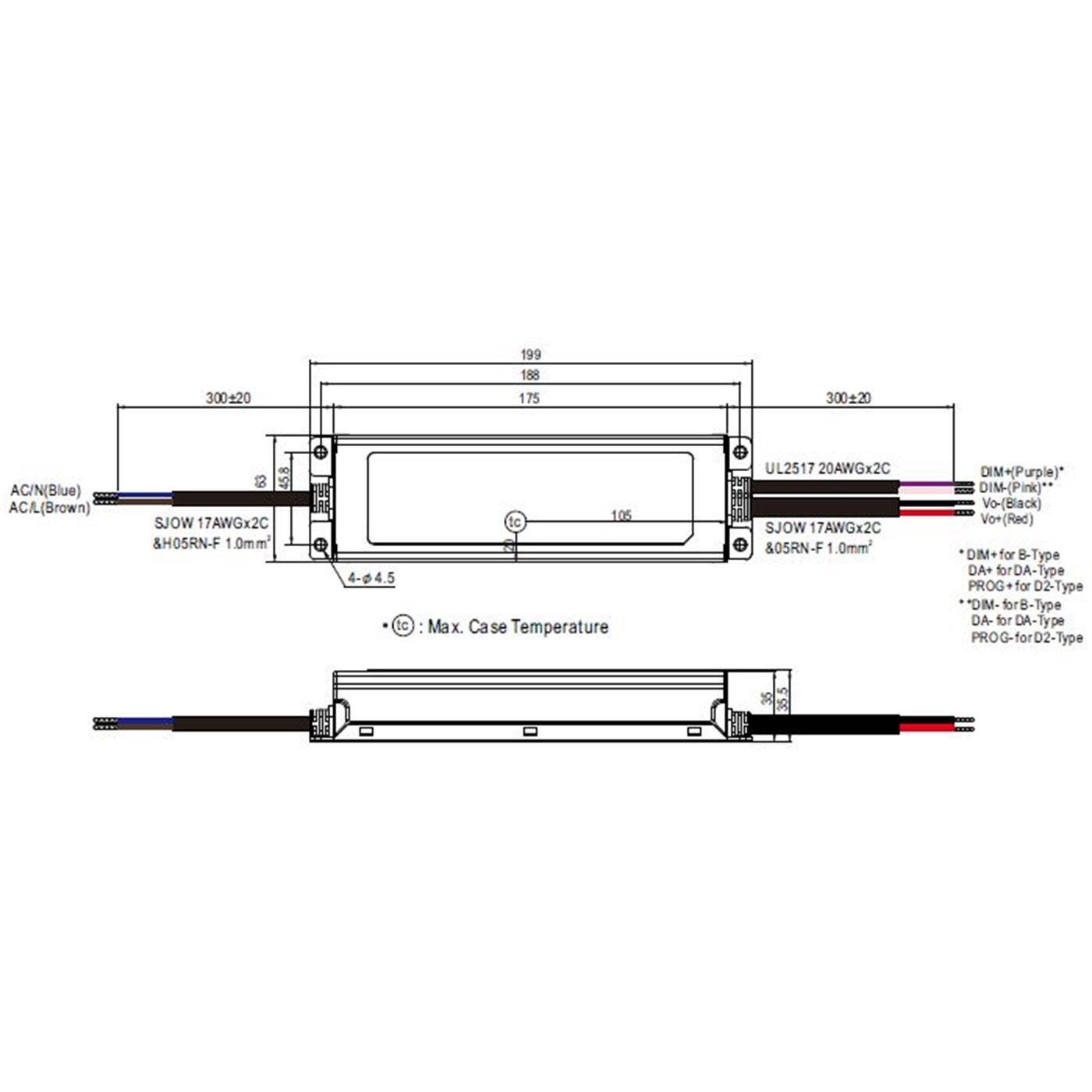

| Length: | 199mm |
| Width: | 63mm |
| Height: | 35,5mm |
