1m FLRYY Vehicle cable 2x0,75mm² round Cable CAR Trailer cable Low voltage

Available, delivery time: 1-3 days

Article-No.: IT-006591

Shipping weight: 0.035 kg

Shipping Zone: 30

ROHS: Ja

Quantity	Unit price
1 - 20	€1.25*
21 - 50	€1.23*
51 - 100	€1.20*
101 - 200	€1.18*
201 - 500	€1.15*
From 501	€1.13*

Prices incl. VAT plus shipping costs

aktueller
Bestand

Product description

✔ RELIABLE CABLING: 1m Round FLRYY cable 2x0.75 square millimetres and 4 mm outer diameter for stable, fail-safe connections. The color-coded cores make it easy to assign them - brown, white.

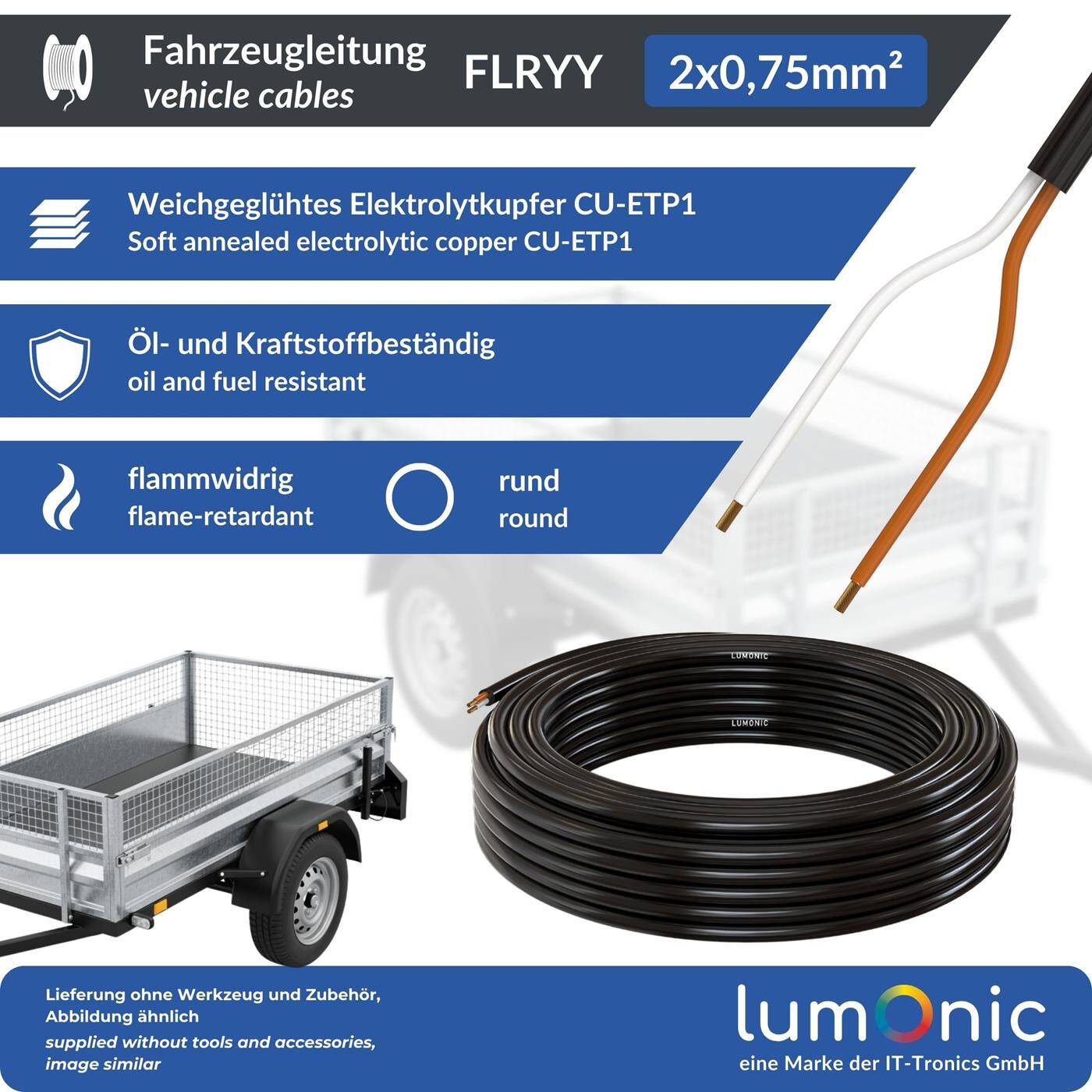

✔ HIGHEST QUALITY: Flame-retardant PVC sheath to ISO 6722-1 and soft-annealed electrolytic copper CU-ETP1 to DIN EN 13602 guarantee a long service life in demanding automotive environments. Conductor structure: 2 cores, each 24x0.20mm (strands).

✔ EXTREME RESILIENCE: The oil and fuel-resistant automotive cable is suitable for temperatures from -40°C to +105°C and a maximum voltage of up to 60 VDC.

✔ SIMPLE INSTALLATION: The flexible multi-core vehicle cable is easy to unwind and lay. Thanks to the reduced wall thickness, you benefit from a lower weight, less space requirement and smaller bending radius.

✔ UNIVERSALLY APPLICABLE: Perfect for all cars, trailers, motorhomes and vans - ideal for 12 V and 24 V lighting, indicators, reversing cameras and electrical accessories up to 60 V.

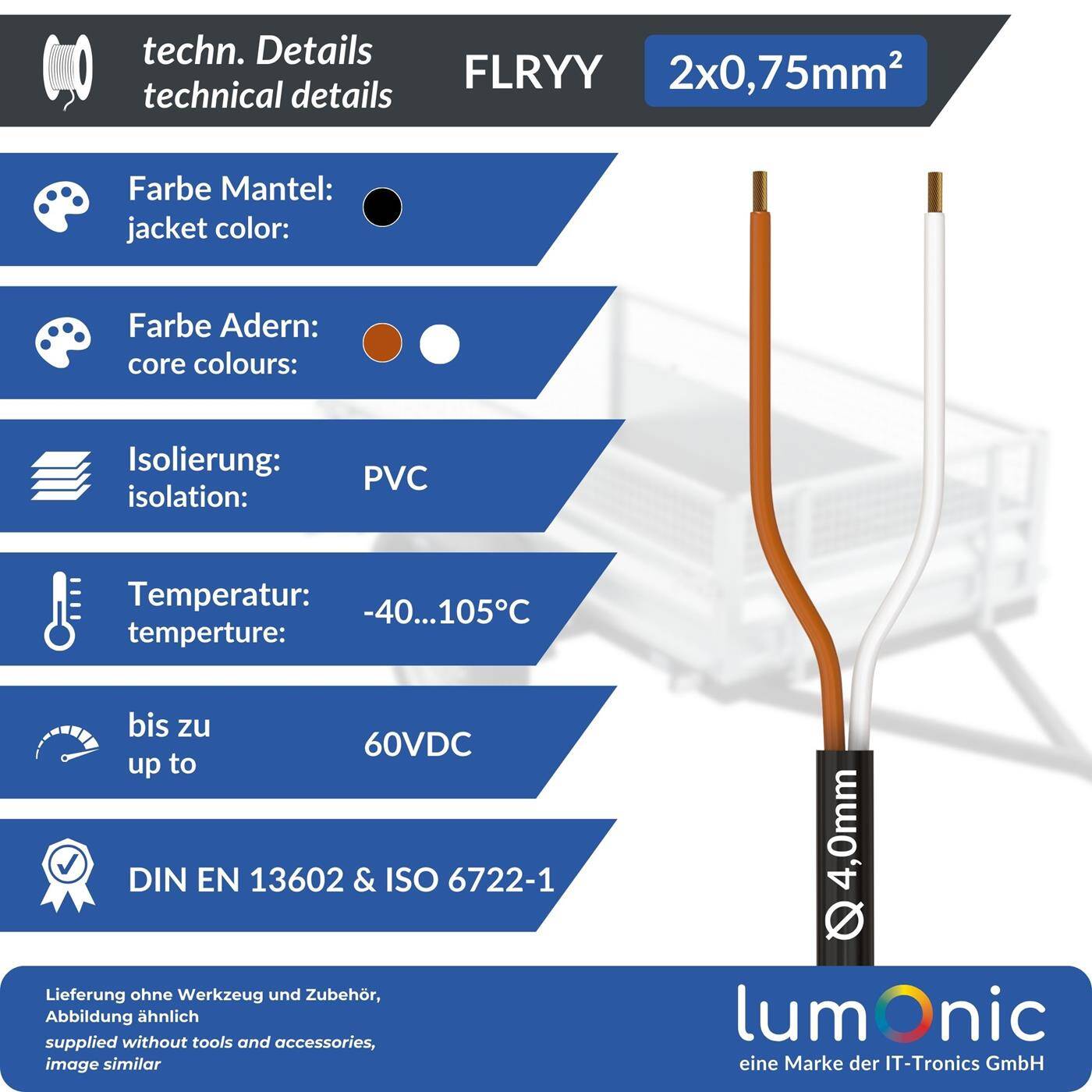

Technical specifications

Cable type:	Vehicle cable

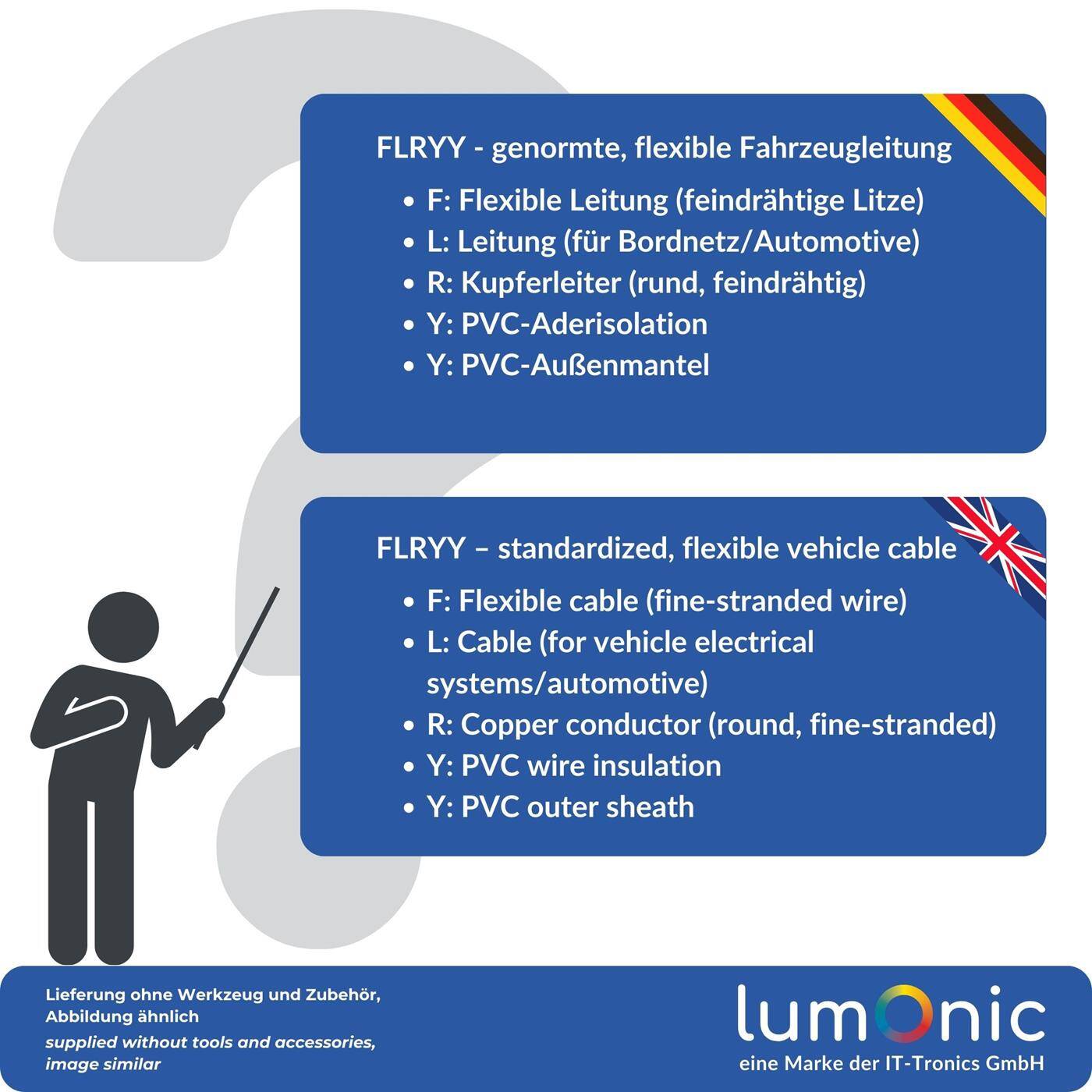

Cable specification:	FLRYY
Length:	1m
Cable cross section:	2x 0,75mm²
Max. Operating voltage:	60V DC
Colour Cores:	Brown White
Colour Coating:	Black
Diameter:	4mm
Material inner conductor:	Copper
Construction of inner conductor:	2x 24x0,20mm
Temperature range:	-40...+105°C (3000h)
Insulation Cores:	PVC
Insulation Coating:	PVC
