5x Supercap 4,0F 5,5V H-Type, EDLC for direct use, high capacity, 5.5V monoblock - no balancing necessary, flicker protection, backup, Arduino, PLC, heating
Available, delivery time: 1-3 days
Article-No.:
IT-010620
Model:
LUGC4,00F5,5V-H
Shipping weight:
0.039 kg
Shipping Zone:
30
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€9.00*
|
| 6 - 10 |
€8.82*
|
| 11 - 20 |
€8.64*
|
| 21 - 50 |
€8.55*
|
| 51 - 100 |
€8.46*
|
| From 101 |
€8.37*
|
Product description

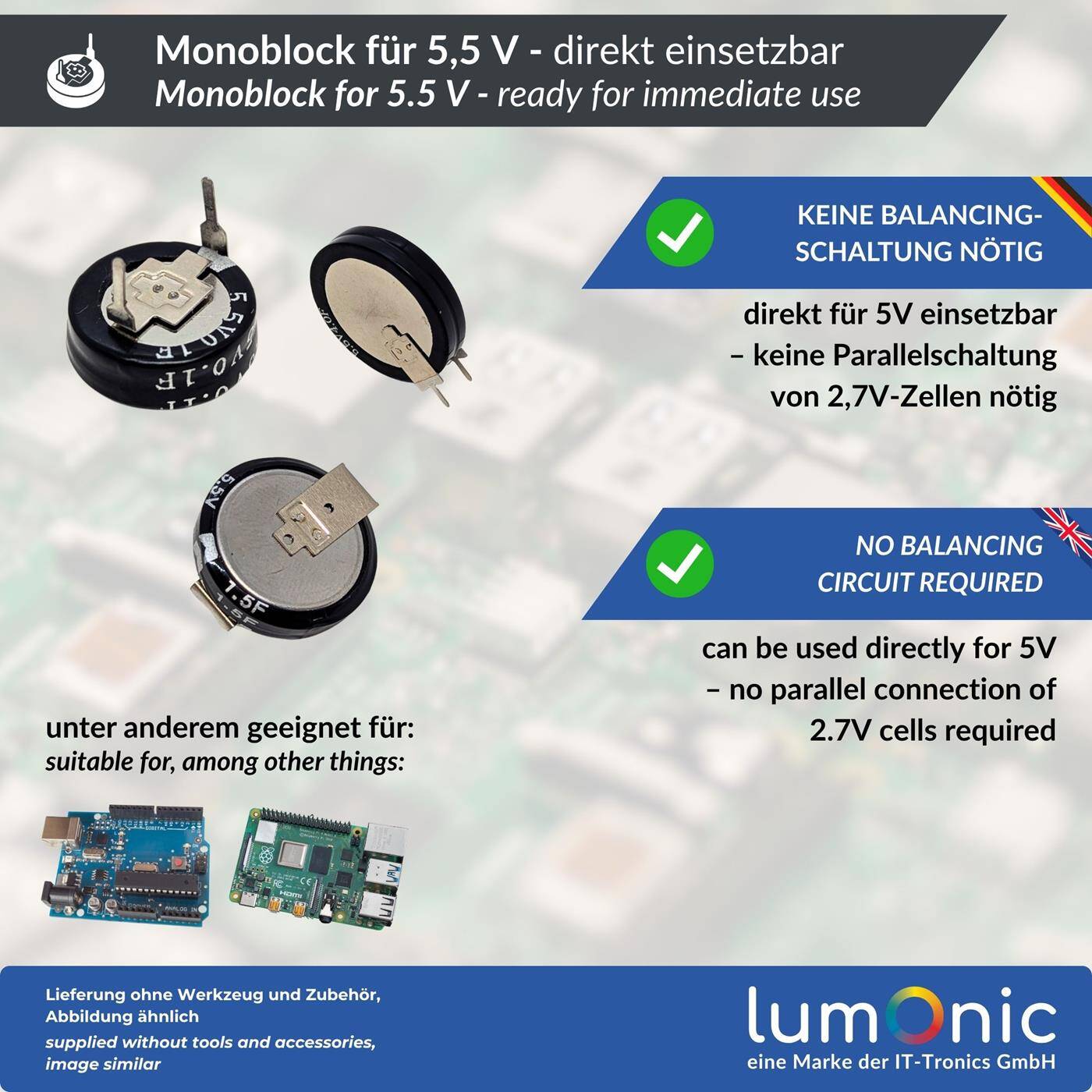

| ✔ READY TO GO IMMEDIATELY: 5.5V monoblock can be used directly at 5 V - no complex balancing circuit required as with 2.7V cells. |
| ✔ LONG LASTING: Over 500,000 charge/discharge cycles and passed 1000h durability test at +70°C according to IEC62391-1. |
| ✔ VERSATILE IN USE: Double-layer capacitors function as small energy storage devices and protect Arduino/Raspberry Pi from data loss in the event of brief power failures, prevent flickering in model railroad LEDs and save SRAM data in controllers. |

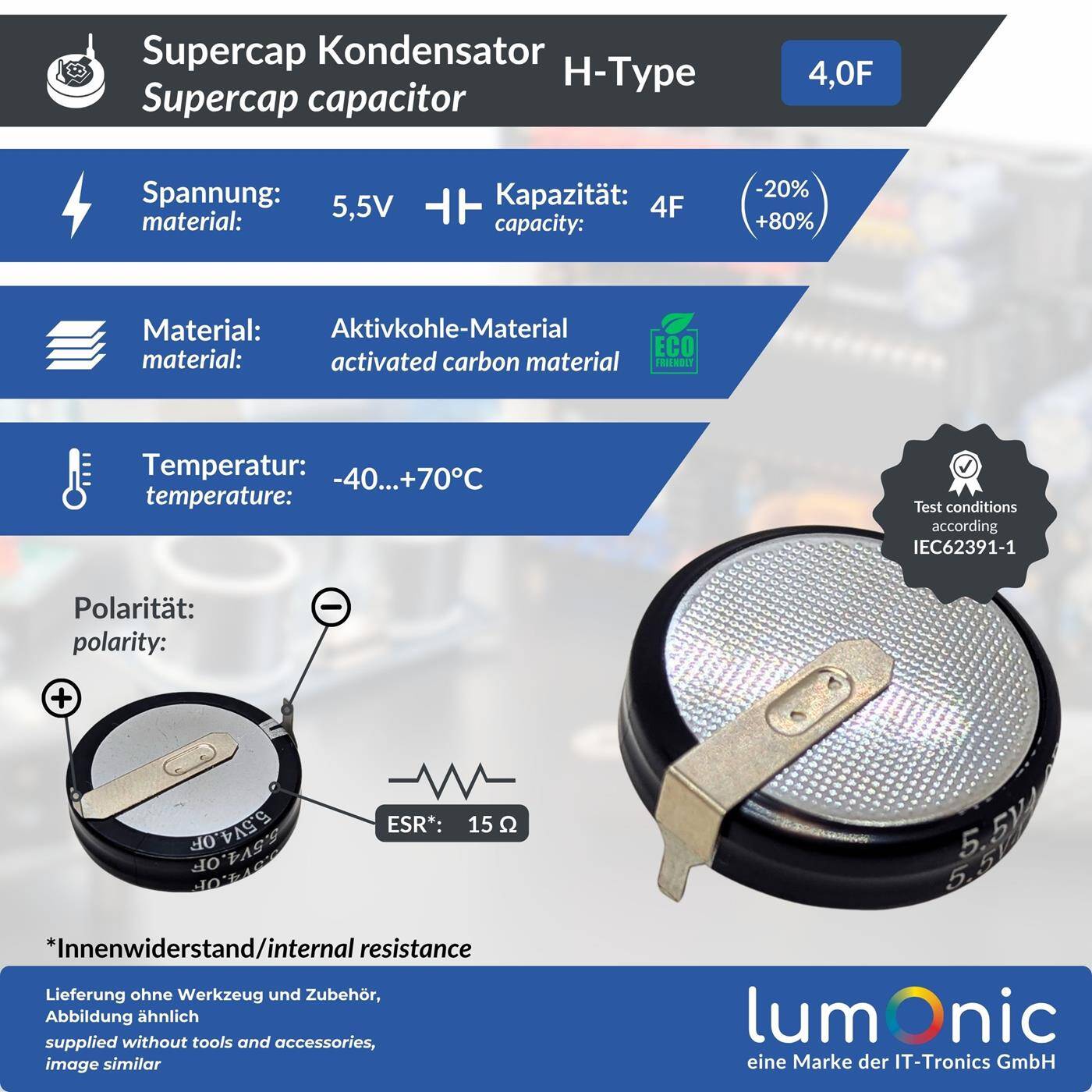

| ✔ STABLE UNDER LOAD: ESR (internal resistance) only 15O (see article pictures) - your circuit gets enough power even during load peaks and runs stably through short power failures. |

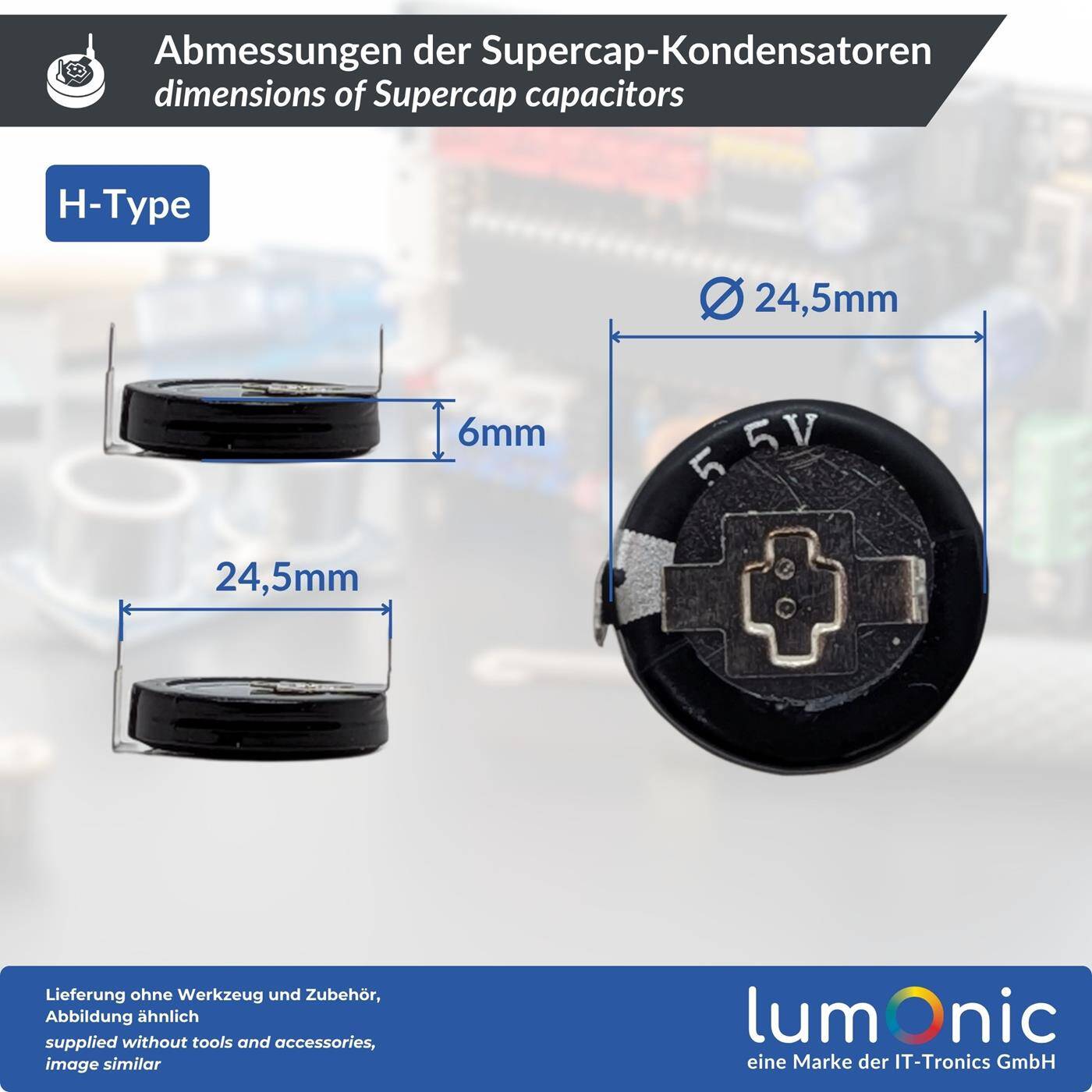

| ✔ PROFESSIONAL QUALITY: Works from -40°C to +70°C, environmentally friendly due to activated carbon, scope of delivery 5 x Ultracap 4.0F 5.5V H-Type. Also known as Goldcap. Dimensions: 24.5x6mm (diameter x height). |
Technical specifications
| Capacitor Type: | Goldcap double layer capacitor |
|---|---|

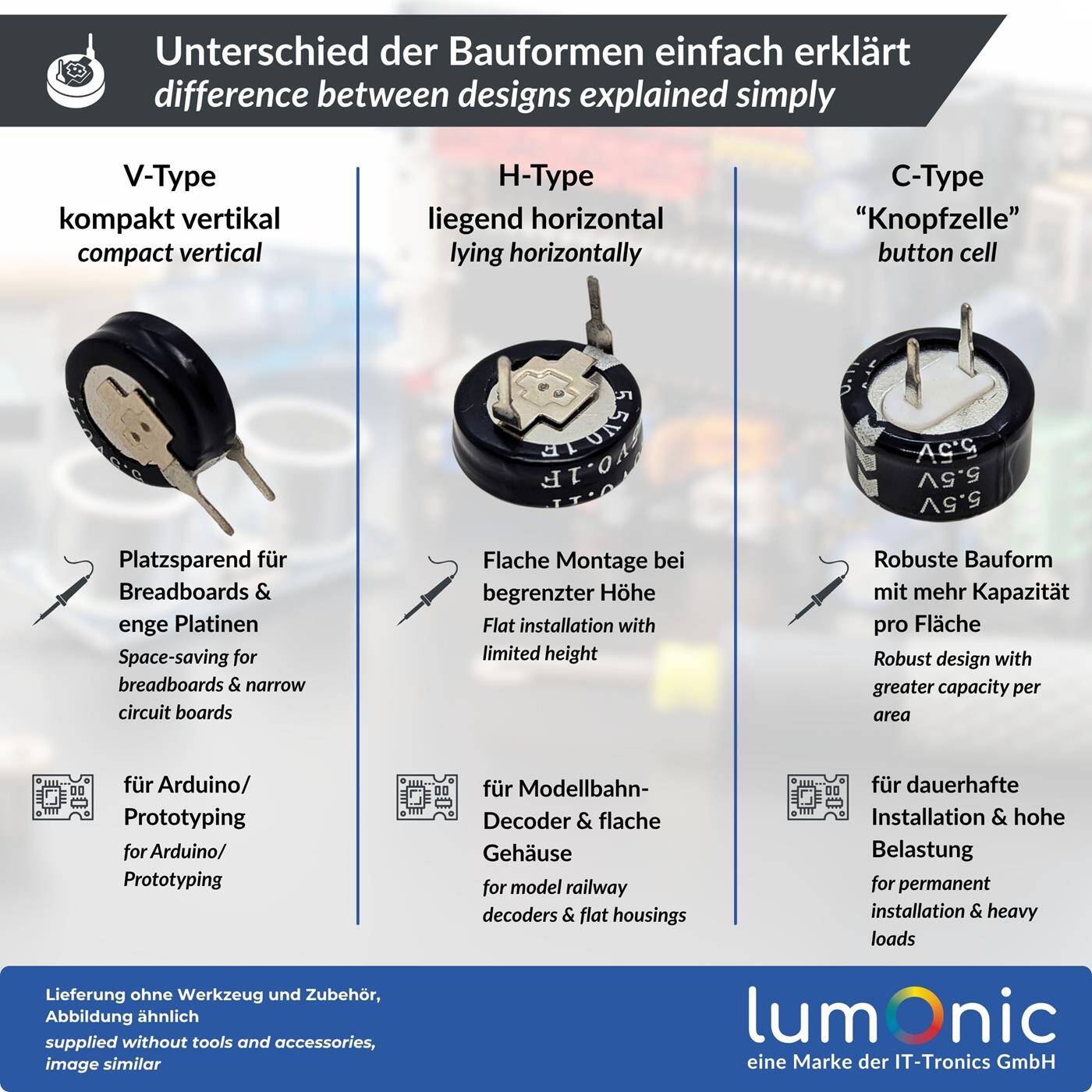

| Design Type: | Radial H-Type |
| Capacity: | 4F |
| Voltage DC: | 5,5V |
| Tolerance: | -20...+80% |
| Temperature: | 70°C |
| Connection: | 2-Pin |
| Connection dimension: | 3,8 |
| Pitch: | 24,5mm |
| Height: | 6mm |
| Diameter: | 24,5mm |
