1m FLRYY Vehicle cable 7x1mm² + 1x1,5mm² round Cable CAR Trailer cable Low voltage
Available, delivery time: 1-3 days
Article-No.:
IT-010277
Shipping weight:
0.148 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 10 |
€4.00*
|
| 11 - 20 |
€3.92*
|
| 21 - 50 |
€3.84*
|
| 51 - 100 |
€3.80*
|
| 101 - 200 |
€3.76*
|
| From 201 |
€3.72*
|
Product description
| ✔ RELIABLE CABLING: 1m Round FLRYY cable 7x1 + 1x1.5 square millimetres and 9.5mm outer diameter for stable, fail-safe connections. The color-coded cores make assignment easier - 1mm²: black, brown, yellow, green, red, blue, grey / 1.5mm²: white. |

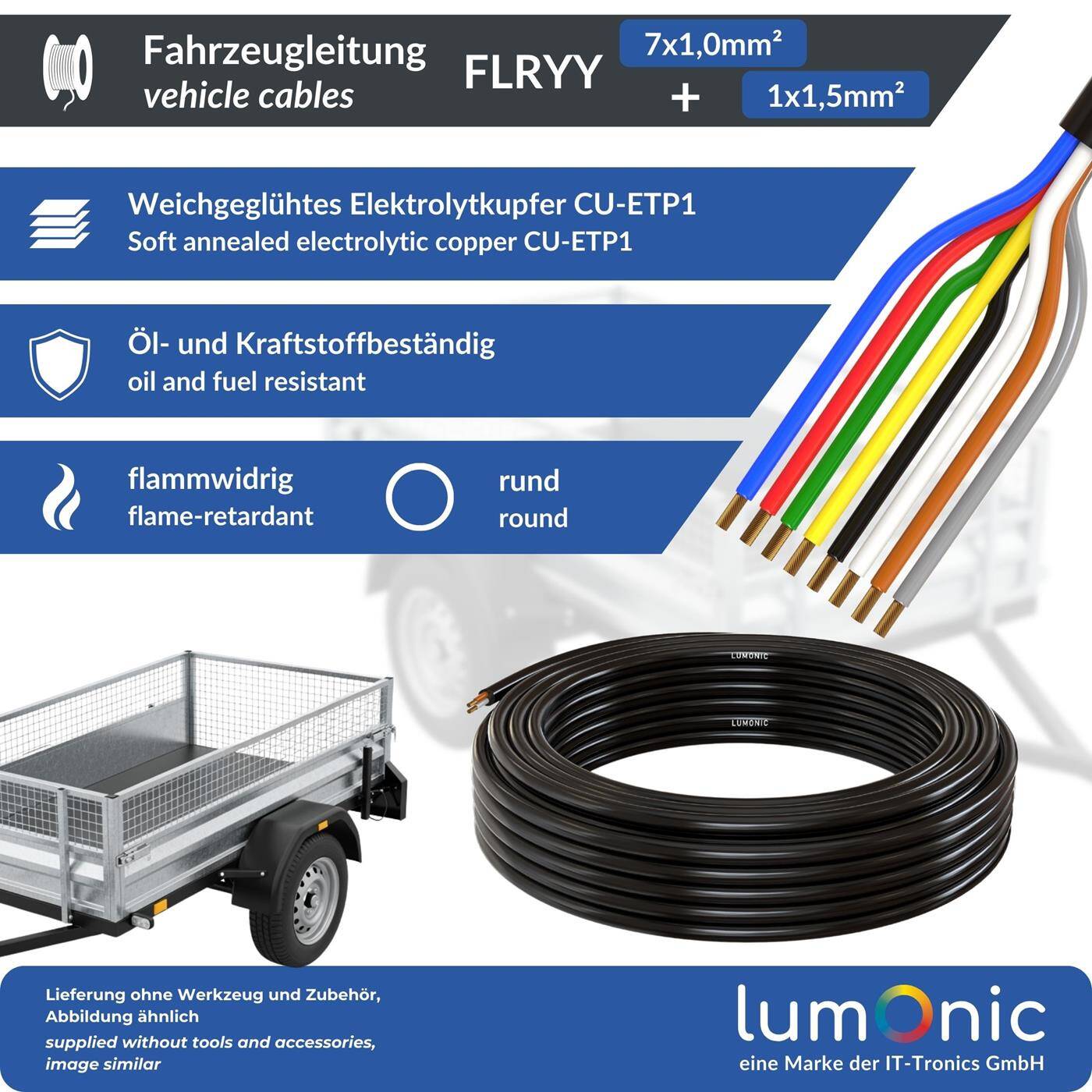

| ✔ HIGHEST QUALITY: Flame-retardant PVC sheath to ISO 6722-1 and soft-annealed electrolytic copper CU-ETP1 to DIN EN 13602 guarantee a long service life in demanding automotive environments. Conductor structure: 8 cores, each 32x0.20mm + 30x0.25mm (strands). |
| ✔ EXTREME RESILIENCE: The oil and fuel-resistant automotive cable is suitable for temperatures from -40°C to +105°C and a maximum voltage of up to 60 VDC. |
| ✔ SIMPLE INSTALLATION: The flexible multi-core vehicle cable is easy to unwind and lay. Thanks to the reduced wall thickness, you benefit from a lower weight, less space requirement and smaller bending radius. |
| ✔ UNIVERSALLY APPLICABLE: Perfect for all cars, trailers, motorhomes and vans - ideal for 12 V and 24 V lighting, indicators, reversing cameras and electrical accessories up to 60 V. |

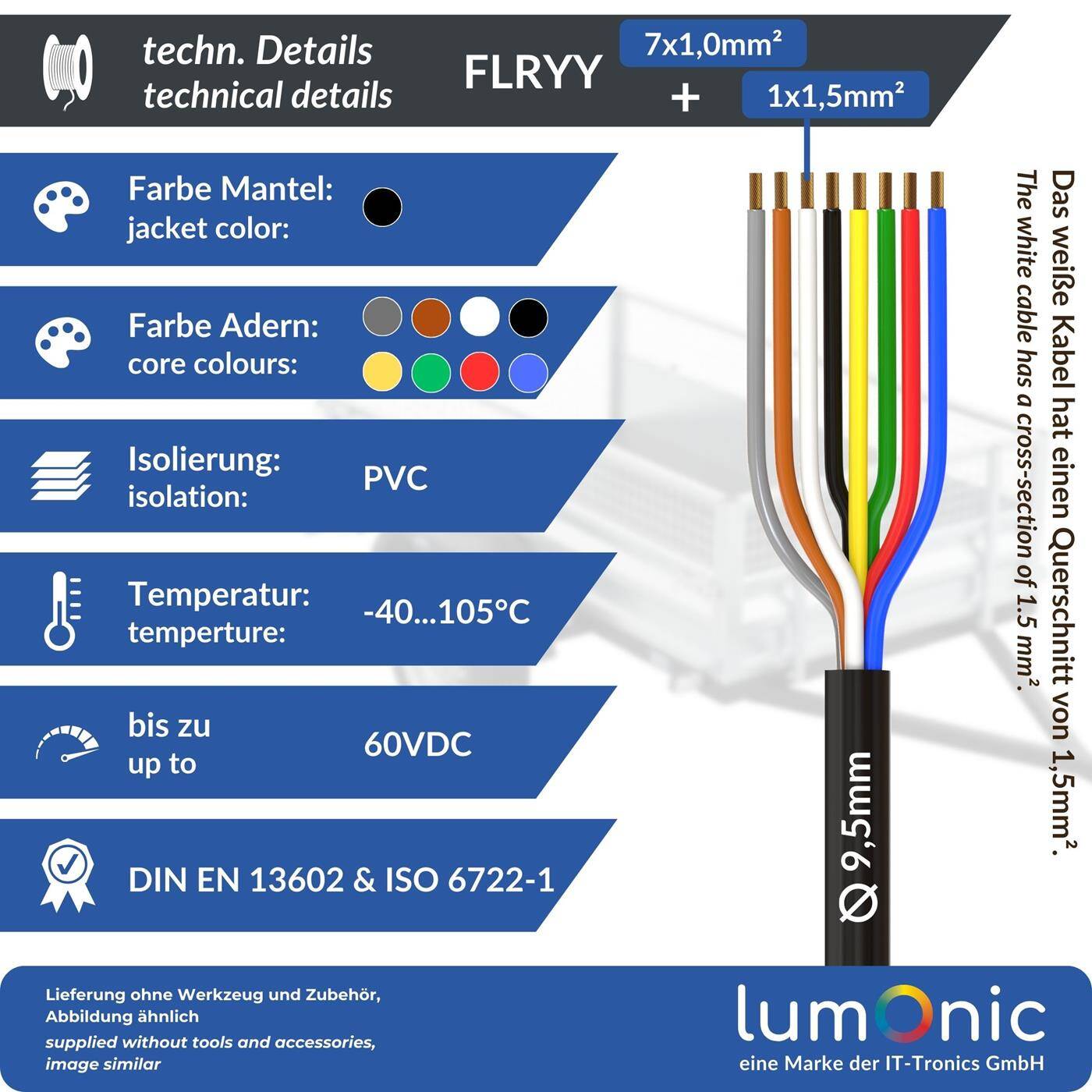

Technical specifications
| Cable type: | Vehicle cable |
|---|---|
| Cable specification: | FLRYY |
| Length: | 1m |
| Cable cross section: | 7x 1mm² + 1x 1,5mm² |
| Max. Operating voltage: | 60V DC |
| Colour Cores: | 1mm²: Black Brown Yellow Green Red Blue grey / 1,5mm²: White |
| Colour Coating: | Black |
| Diameter: | 9,5mm |
| Material inner conductor: | Copper |
| Construction of inner conductor: | 7x 32x0,20mm + 1x 30x0,25mm |
| Temperature range: | -40...+105°C (3000h) |
| Insulation Cores: | PVC |
| Insulation Coating: | PVC |
