1m FLRYY Vehicle cable 13x1,5mm² round Cable CAR Trailer cable Low voltage
Available, delivery time: 1-3 days
Article-No.:
IT-006607
Shipping weight:
0.275 kg
Shipping Zone:
50
ROHS:
Ja
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€6.50*
|
| 6 - 10 |
€6.37*
|
| 11 - 20 |
€6.24*
|
| 21 - 50 |
€6.18*
|
| 51 - 100 |
€6.11*
|
| From 101 |
€6.05*
|
Product description

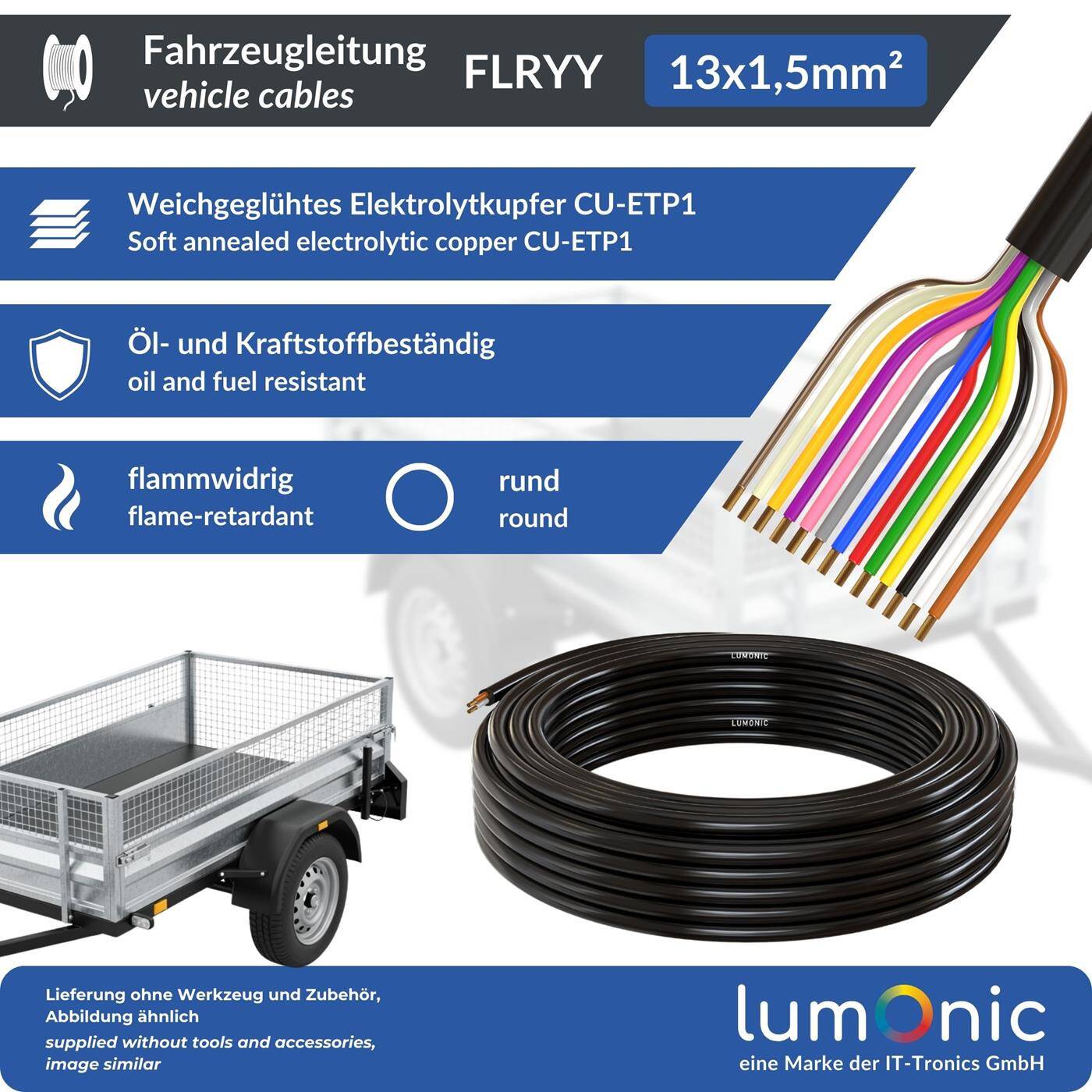

| ✔ RELIABLE CABLING: 1m round FLRYY cable 13x1.5 square millimetres and 14 mm outer diameter for stable, fail-safe connections. The color-coded cores make it easy to assign them - white, black, brown, yellow, green, red, blue, grey, pink, violet, orange, beige, transparent. |
| ✔ HIGHEST QUALITY: Flame-retardant PVC sheath to ISO 6722-1 and soft-annealed electrolytic copper CU-ETP1 to DIN EN 13602 guarantee a long service life in demanding automotive environments. Conductor structure: 13 cores, each 30x0.25mm (strands). |
| ✔ EXTREME RESILIENCE: The oil and fuel-resistant automotive cable is suitable for temperatures from -40°C to +105°C and a maximum voltage of up to 60 VDC. |
| ✔ SIMPLE INSTALLATION: The flexible multi-core vehicle cable is easy to unwind and lay. Thanks to the reduced wall thickness, you benefit from a lower weight, less space requirement and smaller bending radius. |
| ✔ UNIVERSALLY APPLICABLE: Perfect for all cars, trailers, motorhomes and vans - ideal for 12 V and 24 V lighting, indicators, reversing cameras and electrical accessories up to 60 V. |

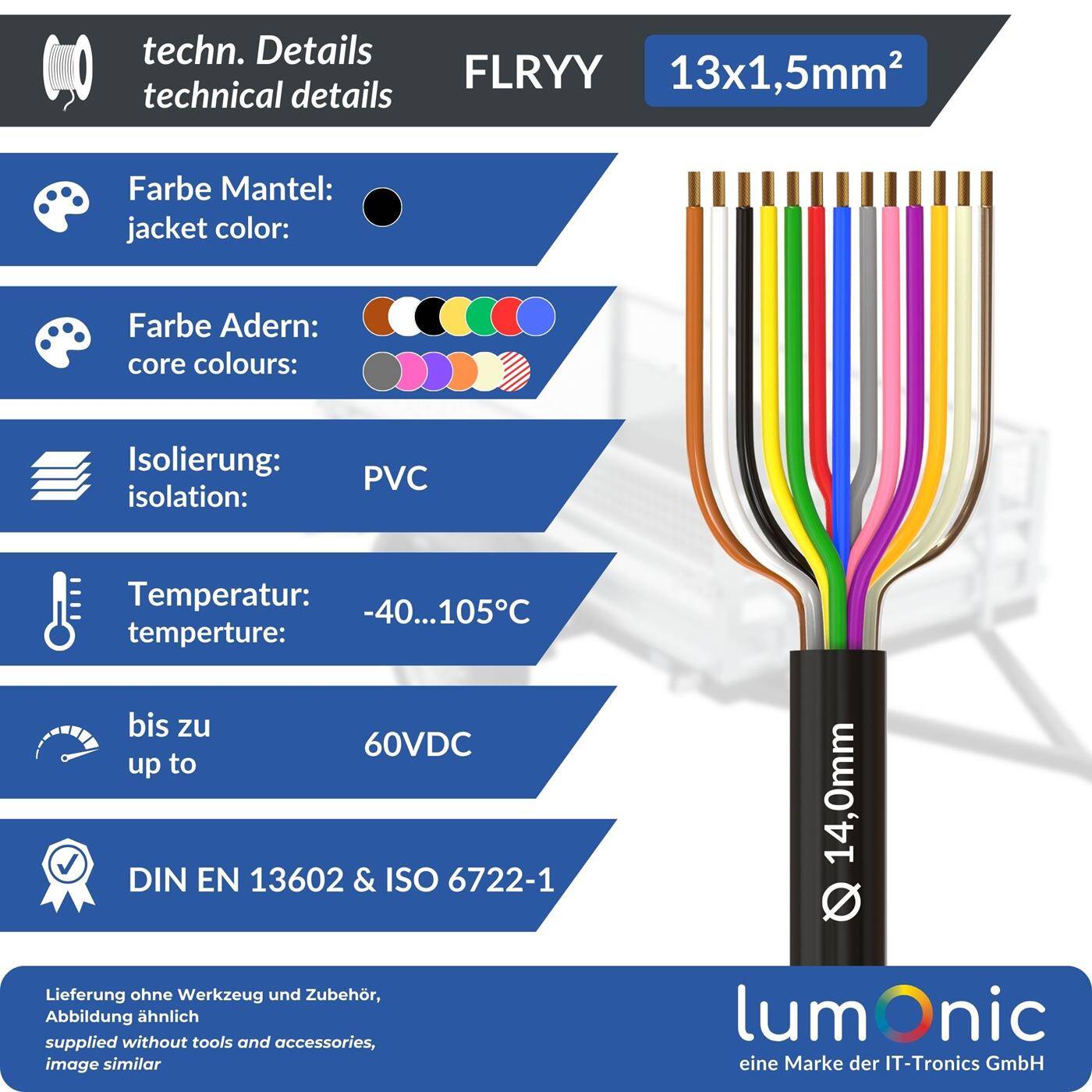

Technical specifications
| Cable type: | Vehicle cable |
|---|---|

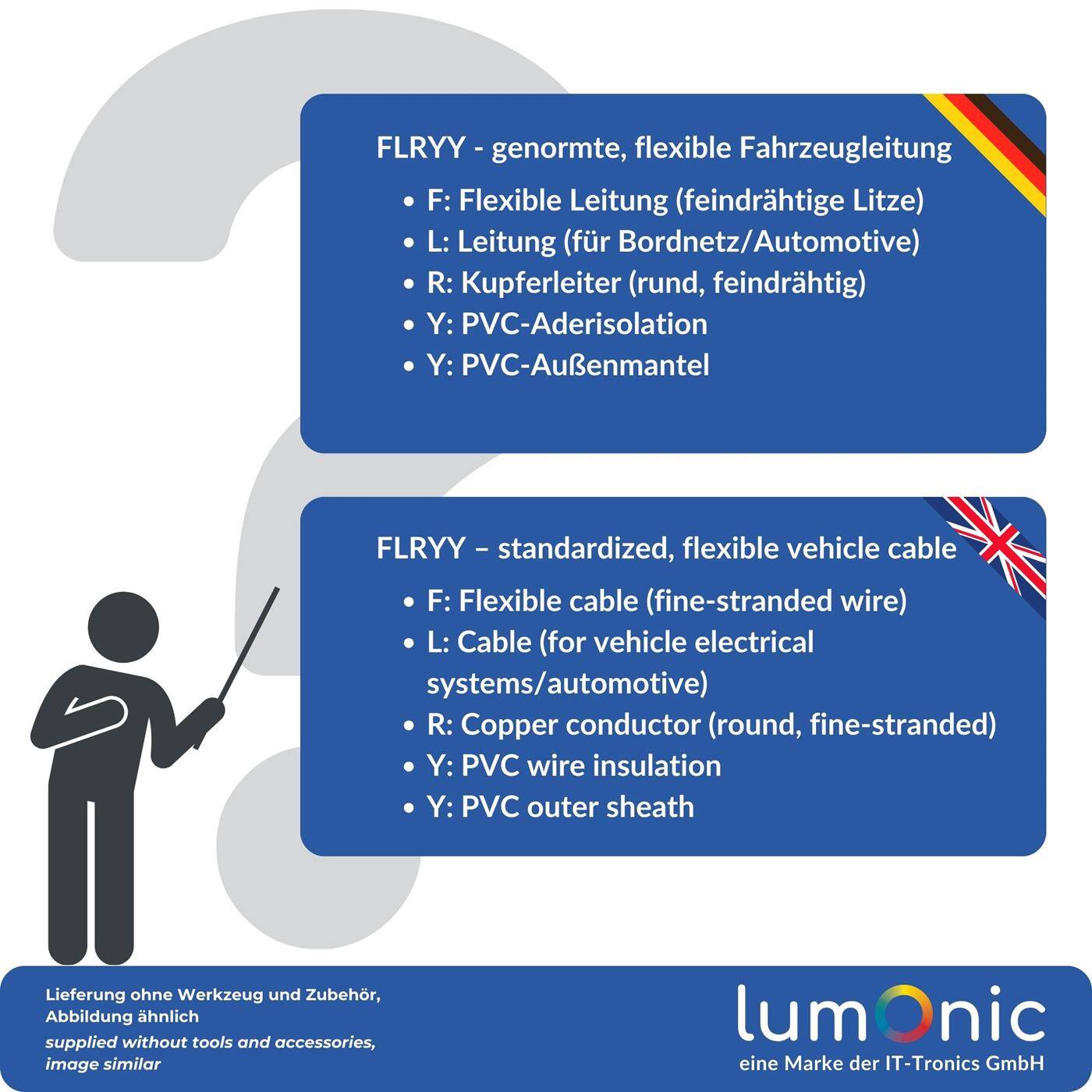

| Cable specification: | FLRYY |
| Length: | 1m |
| Cable cross section: | 13x 1,5mm² |
| Max. Operating voltage: | 60V DC |
| Colour Cores: | White Black Brown Yellow Green Red Blue grey Pink Purple Orange Beige Transparent |
| Colour Coating: | Black |
| Diameter: | 14mm |
| Material inner conductor: | Copper |
| Construction of inner conductor: | 13x 30x0,25mm |
| Temperature range: | -40...+105°C (3000h) |
| Insulation Cores: | PVC |
| Insulation Coating: | PVC |
